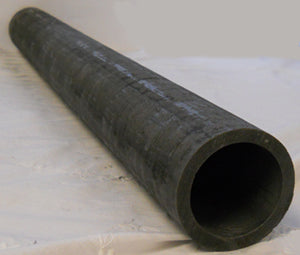

SiC-coated High Purity Graphite Tube: 2"OD x 1.5"ID x 36"L (50.8 OD x 38.1 ID x 914 L, mm), TG-50D-36LD
  • SiC-coated High Purity Graphite Tube: 2"OD x 1.5"ID x 36"L (50.8 OD x 38.1 ID x 914 L, mm), TG-50D-36LD
SiC-coated High Purity Graphite Tube: 2"OD x 1.5"ID x 36"L (50.8 OD x 38.1 ID x 914 L, mm), TG-50D-36LD

SiC-coated High Purity Graphite Tube: 2"OD x 1.5"ID x 36"L (50.8 OD x 38.1 ID x 914 L, mm), TG-50D-36LD

SKU: tg-50d-36ld

Price: RFQ

Description

PROPERTY US VALUE METRIC VALUE
  Particle Size 0.008   in 0.02032   cm
  Density 0.060   lb/in 3 1.65   gr/cm 3
  Flexural Strength 3700   psi 25.5   mpa
  Compressive Strength 6000   psi 41.4   mpa
  Resistivity 3.2   ohm/inx10 -4
  CTE 0.6   in/in °F x 10 -6 1.1   Microns/m °C
  Temperature (Air) 750   °F 399   °C
  Temperature (Inert) 5000   °F 2760   °C
  Ash Content less than 50   ppm
