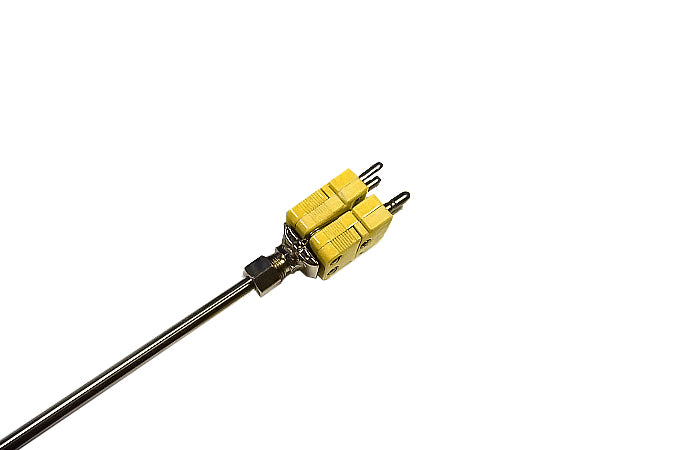

Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD
  • Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD
Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD

Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD

SKU: tck12sd

Price: RFQ

Description

This is a Dual Element K Thermocouple for use on the MTI KSL1200XL5 and KSL1200XL5AC Five-Side Heating Atmosphere-Controlled Muffle Furnace

Features
  • Super Accurate, Super Stable, Super Value
  • Allows two readings at a single point
  • Built-in Backup
  • For Use with Temperatures Up to 1335 oC (2440 o F)
  • Excellent Long Term Stability at High Temperature
  • Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance
  • Excellent Oxidation, Carburization and Chlorination Resistance
Length
  • 12"
Diameter of Sheath
  • 1/4"
Material
  • Positive:   Ni-Cr
  • Negative:  Ni-Al
Temperature Range
  • -200 oC to 1335 oC
Application Note
  • There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K type thermocouple before use. Wrong polarity may result temperature measuring error.
  • It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Put a magnet up to each wire as one will be more magnetic than the other.
