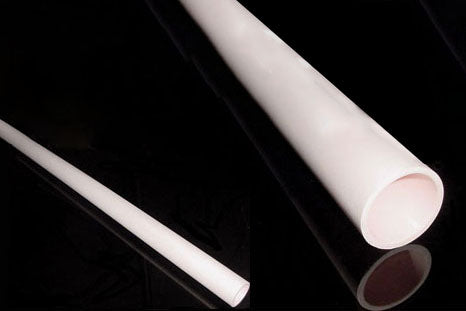

40 OD x 30 ID x 700mm L (1.57"OD) Alumina Ceramic Tube for GSL1500 Tube Furnace - TA40D700
  • 40 OD x 30 ID x 700mm L (1.57"OD) Alumina Ceramic Tube for GSL1500 Tube Furnace - TA40D700
40 OD x 30 ID x 700mm L (1.57"OD) Alumina Ceramic Tube for GSL1500 Tube Furnace - TA40D700

40 OD x 30 ID x 700mm L (1.57"OD) Alumina Ceramic Tube for GSL1500 Tube Furnace - TA40D700

SKU: ta-40d-700

Price: RFQ

Specifications

 MTI Corporation provides high-purity Alumina (Al 2 O 3 ) tubes as replacement parts for high-temperature tubing furnaces in universities, companies, and national labs. It comes with the specifications as the following: Purity Al2O3 > 95%, SiO2 < 0.25%, CaO+MgO < 0.3% Density > 3.7 g /cm 3 Nominal Dimensions OD40 × ID30 × L 700 ( mm)    ( OD 1.57" x ID 1.18" x L 23.6" ) Detailed Dimensions Working Temperature <1700°C at ambient pressure <1500°C under vacuum Heating and Cooling Rate <10°C/min at T<1200°C <5°C/min at 1200 °C
Purity Al2O3 > 95%, SiO2 < 0.25%, CaO+MgO < 0.3%
Density > 3.7 g /cm3
Nominal Dimensions OD40 × ID30 × L 700 ( mm)    ( OD 1.57" x ID 1.18" x L 23.6" )

Detailed Dimensions
Working Temperature <1700°C at ambient pressure
<1500°C under vacuum
Heating and Cooling Rate <10°C/min at T<1200°C
<5°C/min at 1200°C<T<1700°C
Max Temperature Gradient <100°C/in

Application Notes

Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )
 MTI recommends using alumina crucibles for samples to extend the service life of the tube and avoid cross-contamination.

To order crucibles, please click here.
