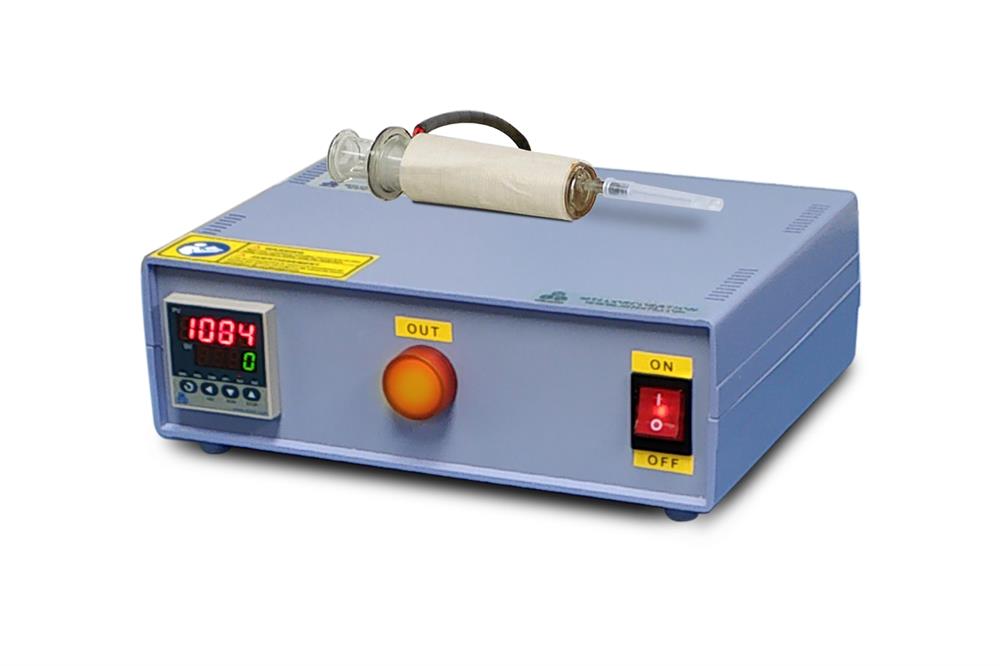

200°C 20ml Heatable Glass Syringe with Temperature Control Unit for Spin Coater - Syringe20-GLH

20ml heatable glass syringe up to 200°C with a precision temperature control unit can be installed on MTI's spin coater to provide a heated solution for spin coating.

SPECIFICATIONS:

Input & Output Voltage	Input power 110V AC / Output power 110V
Max. Power	23 W
Max. Temperature	200°C ( Higher temp. is available upon request at the extra cost )
Thermo Couple	K type
Temperature Control Unit	The controller uses PID via SCR power control Single-point temperature controller Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. Click the picture left for detailed specification
Thermal Couples	K type
Dimensions	255 x 240 x 115 mm (L x W x H)
Syringe	20ml Glass syringe OD: 24mm ID: 20mm Total Length with a booster: 145mm
Application Notes	A heatable syringe and heating cover with a digital temperature controller up to 200°C can be installed on MTI's spin coater which provides a heated solution during coating and allows sample drying in-situ during and after coating. Click the picture below for details.
