Reciprocating Continuous Diamond Wire Saw - STX402
  • Reciprocating Continuous Diamond Wire Saw - STX402
  • Reciprocating Continuous Diamond Wire Saw - STX402
  • Reciprocating Continuous Diamond Wire Saw - STX402
  • Reciprocating Continuous Diamond Wire Saw - STX402
  • Reciprocating Continuous Diamond Wire Saw - STX402
  • Reciprocating Continuous Diamond Wire Saw - STX402
Reciprocating Continuous Diamond Wire Saw - STX402

Reciprocating Continuous Diamond Wire Saw - STX402

SKU: stx402

Price: RFQ

Specifications

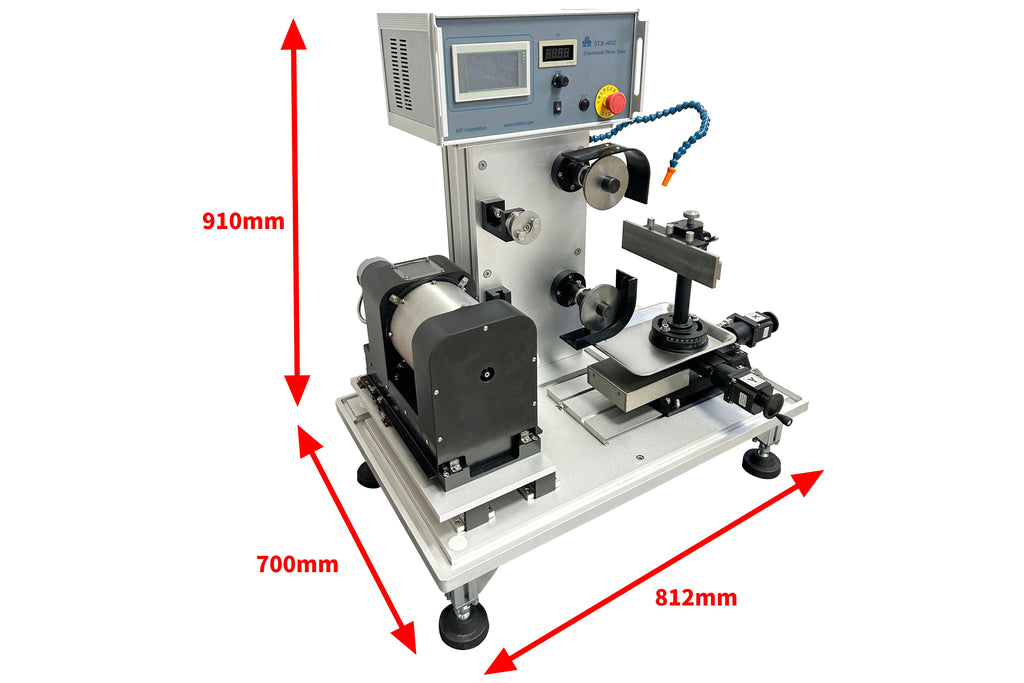

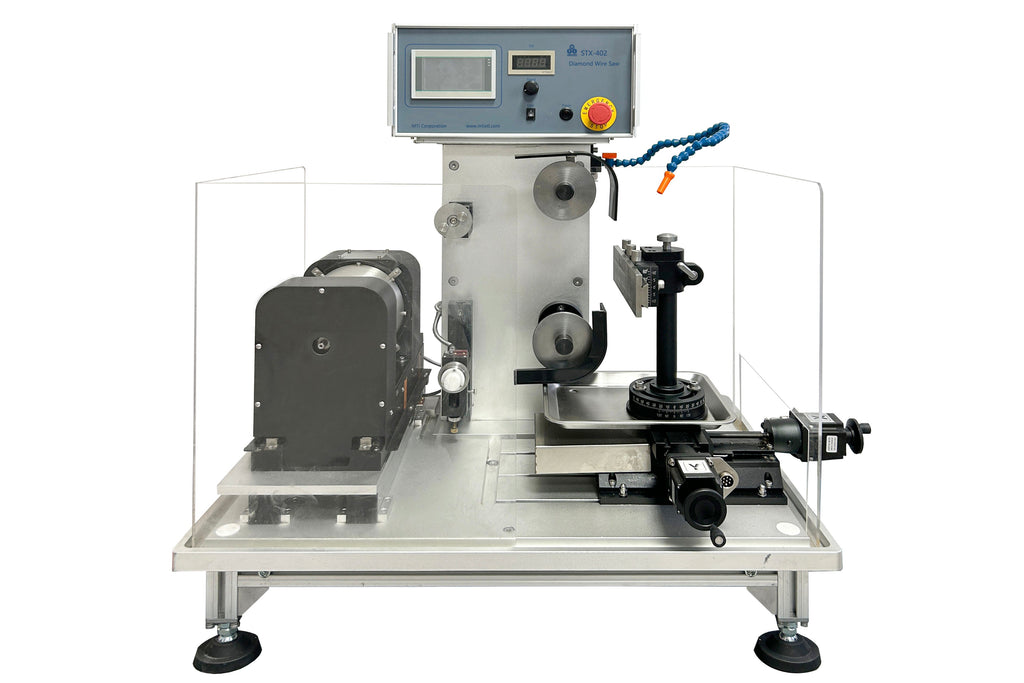

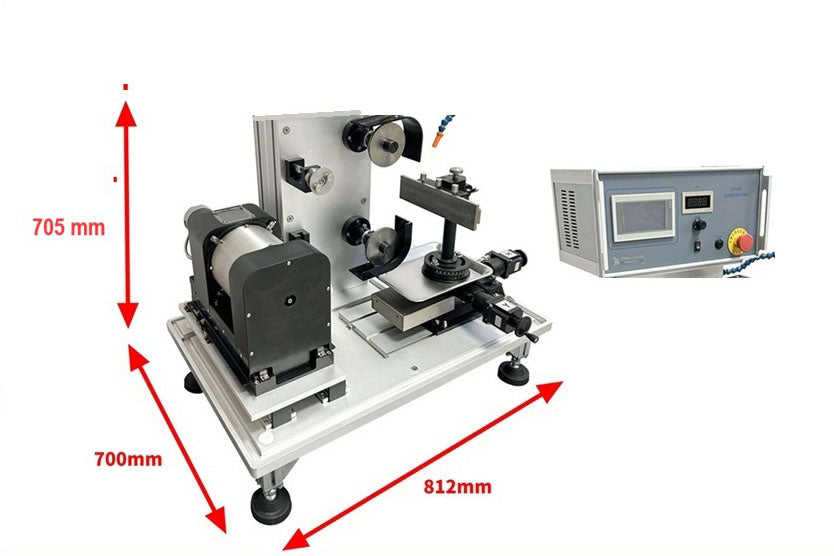

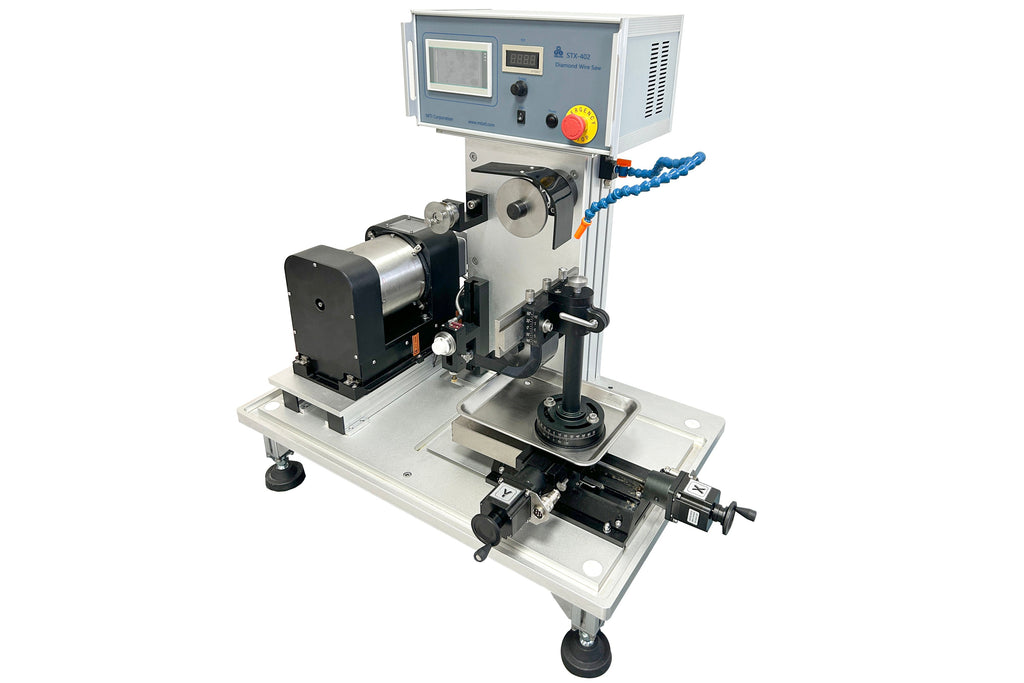

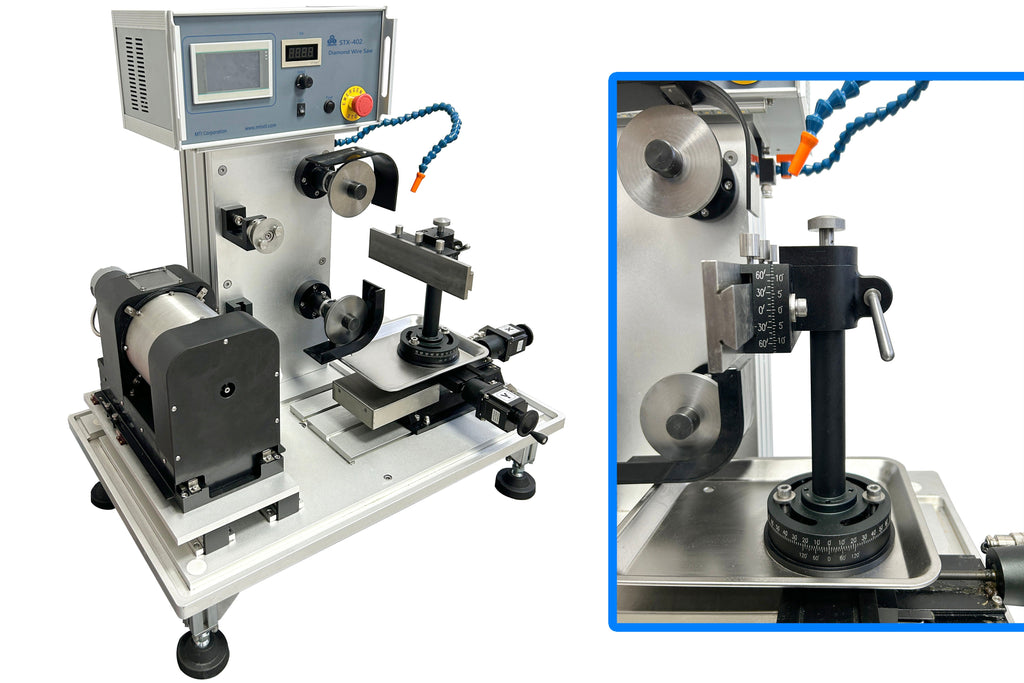

 The STX-402 is a single-wire reciprocating continuous diamond wire cutting saw can be used for precision cutting of brittle materials such as ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composite materials, and biomedical materials, with a cutting size of up to 4". Once the cutting program is set, it can continuously cut the sample, with the sample slowly moving towards the cutting wire to ensure the high precision. It can use a long cutting wire (80m), extending the usable life per wire loading and greatly improving cutting efficiency.

Voltage AC 220V 50Hz
Power 250W
Spindle Motor DC motor + Geared Motor 6KB DC110V 120W
X & Y-axis Drive Motors Precision stepper motors
Structure

Aluminum alloy
Diamond Wire Length

≤100m
Diamond Wire Diameter

Ø ≤0.45mm
Sample Size

Φ100mm X 100mm(length)
Sample Type

Any material with hardness less than the diamond wire
Wire Tension Method

Spring
Rotation Mode

Reciprocating
Wire Moving Speed 2m/s adjustable
Cutting Speed 0.05-40mm/min
X&Y -axis Effective Stroke ≤110mm
X&Y-axis Feed Accuracy 0.01mm
3D Fixture Rotation Range Vertical ±10°
Horizontal ±70°
3D Fixture Rotation Accuracy 10'
3D Fixture Vertical Lifting 10mm
Guide Wheels Distance ≤150mm
Control Mode PLC Programmer + 4.3 inch touchscreen
Safety Control  Automatic stop on wire break or wire drum over-travel
Application Notes
  • The flow rate of the coolant is adjustable by the valve in the blue feeding tubing. Please adjust it properly to improve cutting performance.
  • Please use the correct cutting fluid. Don't use tap water or any other fluid that would cause corrosion of machine parts.
  • Must clean the machine after each use.
  • Wire saws applications
Warnings
  • It is required to use proper cutting fluid with the saw to prevent corrosion of the machine components. We strongly recommend you use oil-based coolant or lube cool lubricant with the water. Do not use tap water directly, rusted component is not part of the warranty.
  • Never cut any materials without the use of proper cutting fluid. If you do so, serious damages can be caused
  • For cutting sticky materials such as non-ferrous alloy, epoxy, and plastic, you must sharpen diamond wire frequently. We suggest cutting the sample along with the included dressing stone (Glue sample and the dressing stone side by side and cut them together, this process will help keep the wire sharp enough for efficient cutting.
  • Please clean the machine after the completion of each use.
