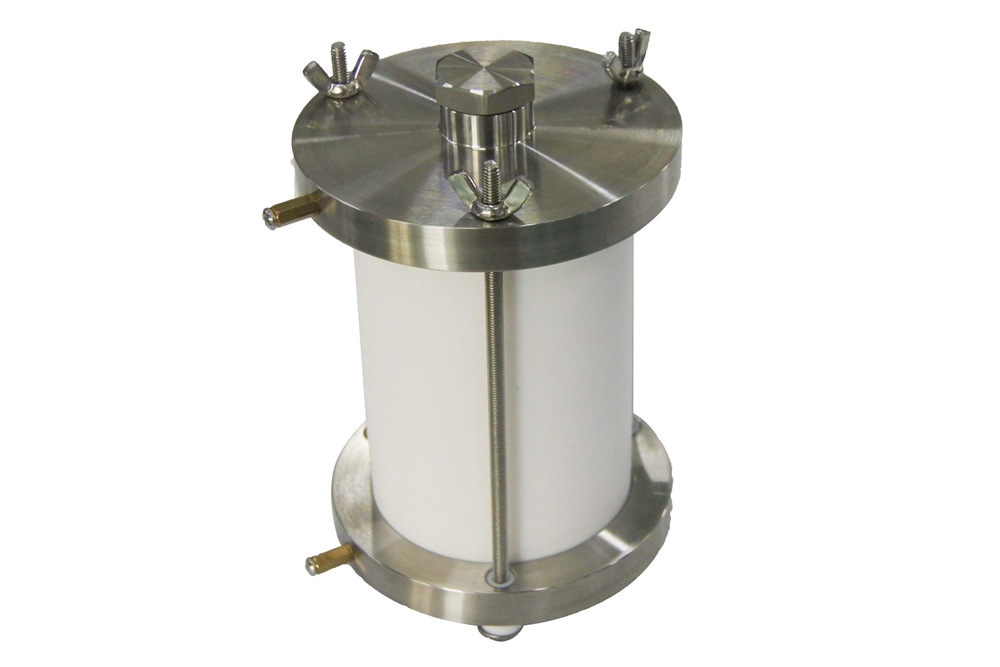

Split Type Cell for 4680 Cylindrical Battery SC-4680
  • Split Type Cell for 4680 Cylindrical Battery SC-4680
  • Split Type Cell for 4680 Cylindrical Battery SC-4680
  • Split Type Cell for 4680 Cylindrical Battery SC-4680
Split Type Cell for 4680 Cylindrical Battery SC-4680

Split Type Cell for 4680 Cylindrical Battery SC-4680

SKU: split-type-cell-for-4680-cylindrical-battery-sc-4680

Price: RFQ

Specifications

 SC-4680 is a split-type kit specially designed for the study of 4680 cylindrical batteries. Easy and fast disassembly and assembly for testing electrode cycling behavior and structural changes Note: Customized (Au coated) test cells are non-returnable and non-exchangeable. MTI has granted the patent 2016205320104 for the Split Type Cells for the Cylindrical Batteries with PTFE/Quartz Liner since June 2016. Dimensions I.D. of PTFE Body (liner): 46mm Height of PTFE Body: 80mm OD of the cap: 88mm Height the kit: 136mm Screw size is M4 Material Full Stainless steel 304 end caps Electrolyte corrosion-proof PTFE liner( quartz with special request ) can withstand temperature up to 200ºC Sealed by electrolyte corrosion-proof fluorinated rubber O-rings Installation Video

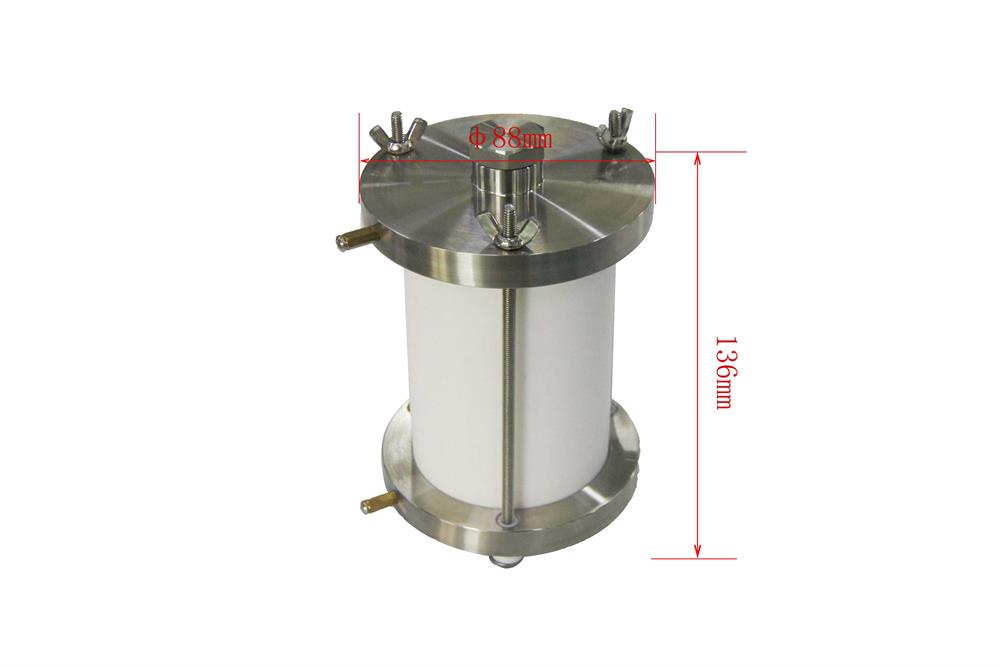

Dimensions
  • I.D. of PTFE Body (liner): 46mm
  • Height of PTFE Body: 80mm
  • OD of the cap: 88mm
  • Height the kit: 136mm
  • Screw size is M4

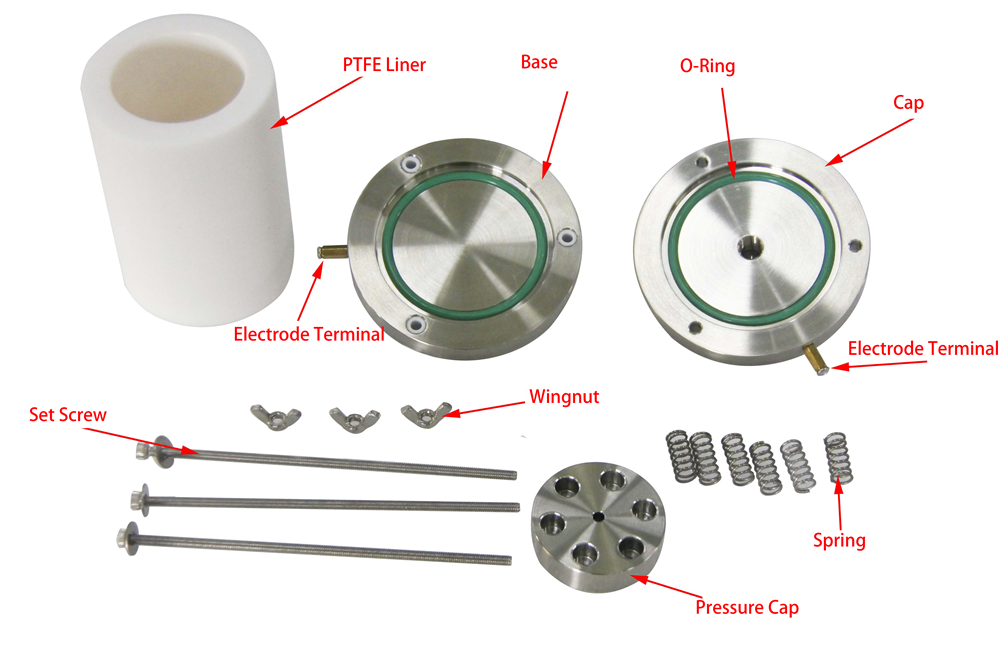

Material
  • Full Stainless steel 304 end caps
  • Electrolyte corrosion-proof PTFE liner(quartz with special request) can withstand temperature up to 200ºC
  • Sealed by electrolyte corrosion-proof fluorinated rubber O-rings
Installation Video
