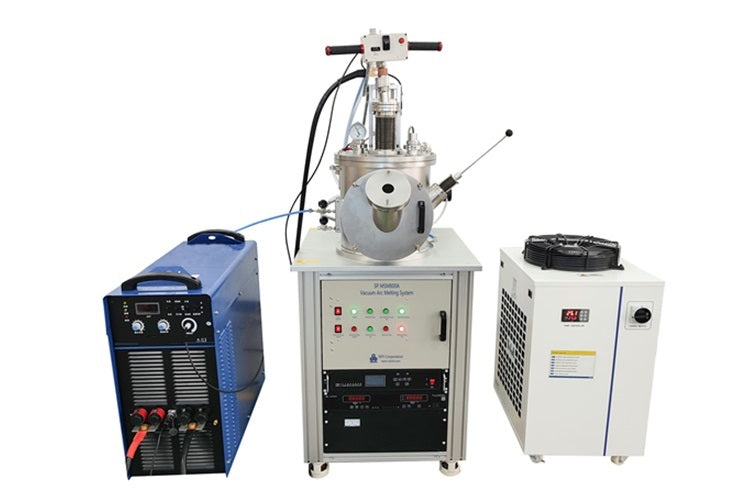

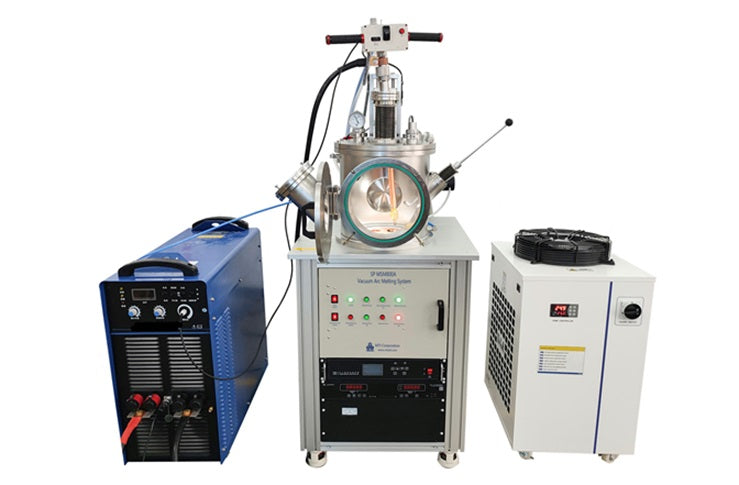

Arc Melting System up to 500g with Casting Function and Vacuum & Water Chiller - SP-MSM-800A

• Input: 460 VAC, 3ph, 80 KW, 50/60Hz
• Optional: 380 VAC

• High vacuum water-cooled chamber with a cooling-water jacket made of SS304
• Vacuum level: 5×10^-6 torr via a 1200L/s turbopump, or higher vacuum with larger turbopump.
• Leakage: <5.0 x 10^-4 (mbar·l)/s (5.0 x 10-5 Pa·m3/s).

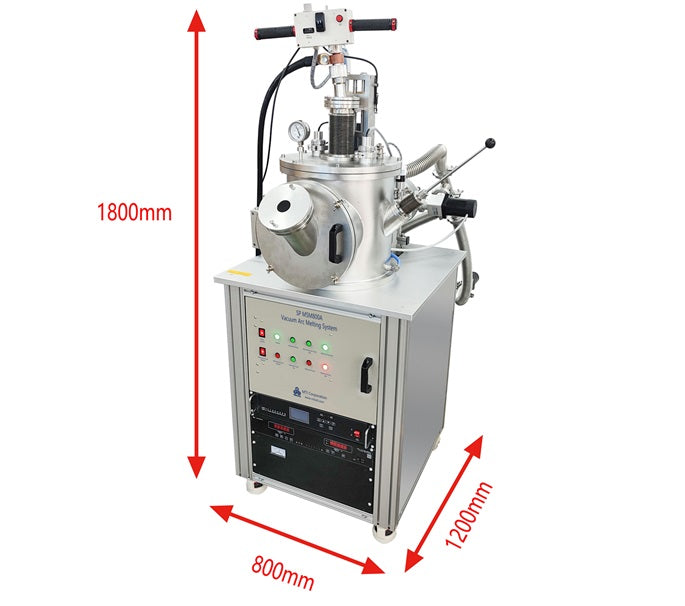

• The chamber size: 400mm Dia x 350mm L
• Two tinted observation windows (dia. 100 mm) on the front for monitoring the melting process
• Hinged front door
• The sample manipulator is built-in for sample flipping without breaking the vacuum
• Easy sample loading and unloading by the chamber lifting mechanism.

• Cavity 1: Ø80×35 mm with electromagnetic stirring
• Cavity 2: Ø65×25 mm with electromagnetic stirring
• Cavity 3: Ø65×25 mm with vacuum suction casting
• Cavity 4: Ø50×25 mm for Ti or Zr gettering.

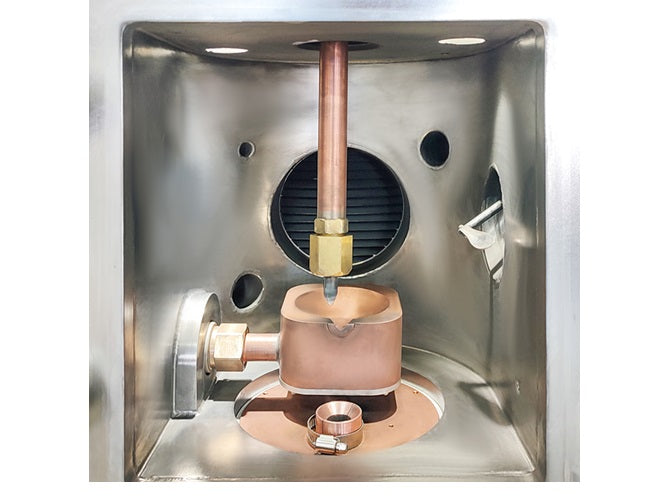

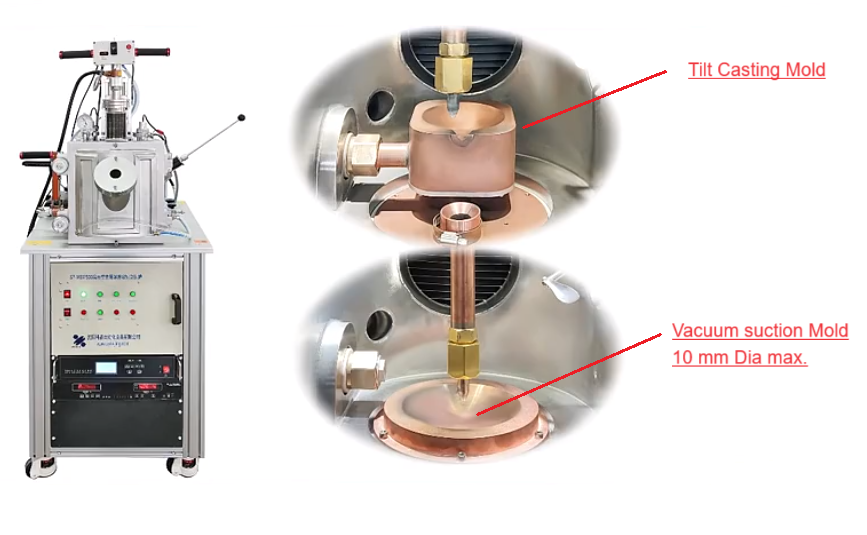

• Cavity 5: Ø60×20 mm with Ø1 mm with vacuum casting (casting mold is available up to 10 dia x 70 L mm ) Pic. 2



Tungsten Electrode & Power Generator

• Out Put power: 83V DC, 60A - 1000A adjustable
• Water-cooled wobble tungsten electrode: Ø12 mm
• The tungsten electrode stroke length. 100 mm
• Max continuous operation: 30 min
• HF ( High frequency ) start
• Max melting temperature: 3500oC
• Max. melting amount: 500 g ( Iron steel)

• 700 L/s turbopump with a ISO160K gate valve
• A dry scroll pump
• Pump controllers, vacuum valves, vacuum pressure gauges, pressure gage controllers and readouts, and vacuum lines are optional
• The control switch of the pneumatic high vacuum gate valve is integrated at the front of the system.
• A pressure gage with a range of 1 x 103 m-bar – 1 x 10-7 m-bar is installed on the chamber and a pressure gage with a range of 1 x 103 m-bar - 1 x 10-5 m-bar is installed on the fore-line between the fore-line valve and the scroll pump.

• Recirculating Water Chiller with 75L/min Flow, 30K BTU/hr is included
• Digital Temperature Control: 5 - 30ºC adjustable with ± 0.3 °C accuracy
• Refrigerant: R410-a

• High-purity inert gas with at least 5N purity (>99.999%) is required (not included)
• 5% Hydrogen + 95% Argon gas may be used to prevent oxidation during the melting process
• High-purity Ti sample melting may help absorb oxygen a lot
• A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 psi for safe operation. Click here to learn the installation of a gas regulator

• CE certified
• UL/CSA certification by NRTLs is available at an extra fee.
