SKU: sh-4

Price: RFQ

Description

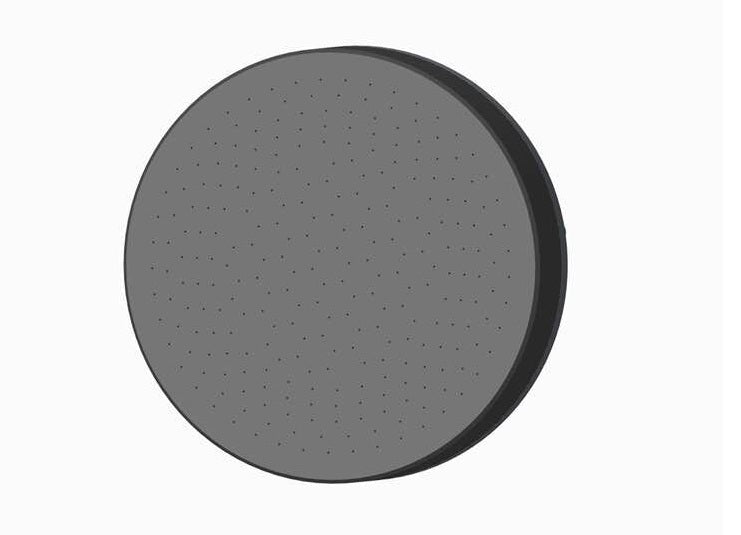

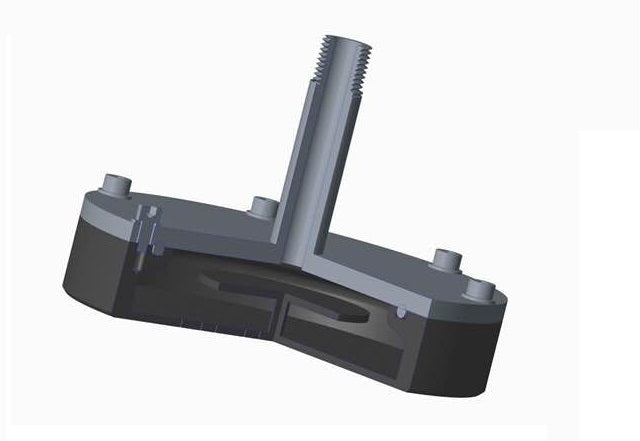

 This is a 4'' Dia. pinned shower head for uniform gas delivery for DIY of ALD or CVS. It is a necessary tool for developing CVD film on a wafers up to 4'' dia.
Material:  SS 304 for top flange and  Aluminium for the bottom showerhead
Oring:       Silicone
Gas Feeding Tube: 14 mm O.D x  6.35 mm I.D
Pin Hole Size
0.8  mm Dia.
Shower

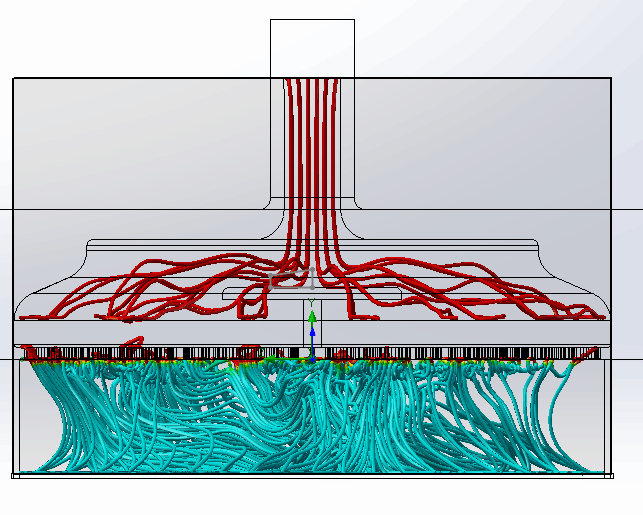

 Special design to ensure uniform distribution and gas/vaper

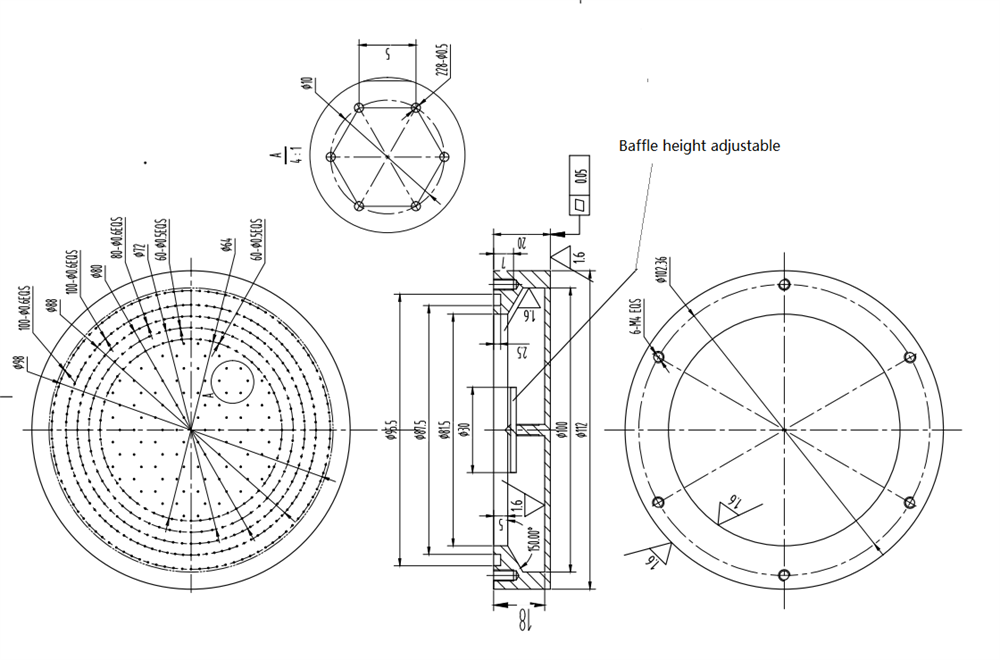

Dimension
( Click picture right  for details)
Warranty 1-year limited warranty with lifetime support
Weight 2 lbs
