4 Paths Film Applicator w/ Optional (80/120mm) Width and Gap of 5 - 20m/50 - 200m - SeKTQ4S

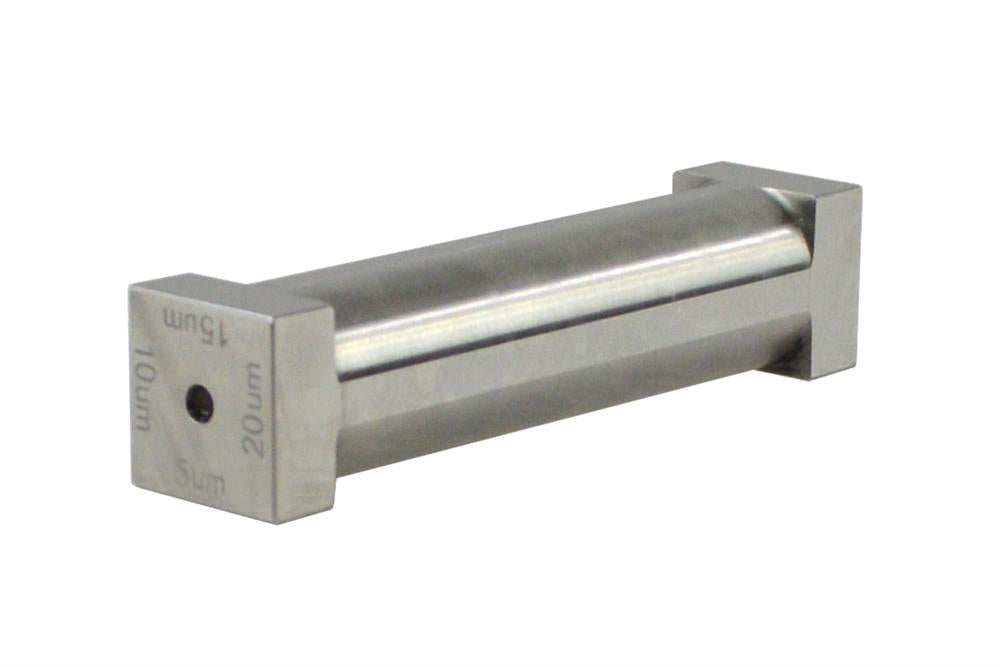

This is fixed thickness precision film applicator with four paths of 5μm10μm15μm and 20μm, which is designed for making thin film coating at small quantity.

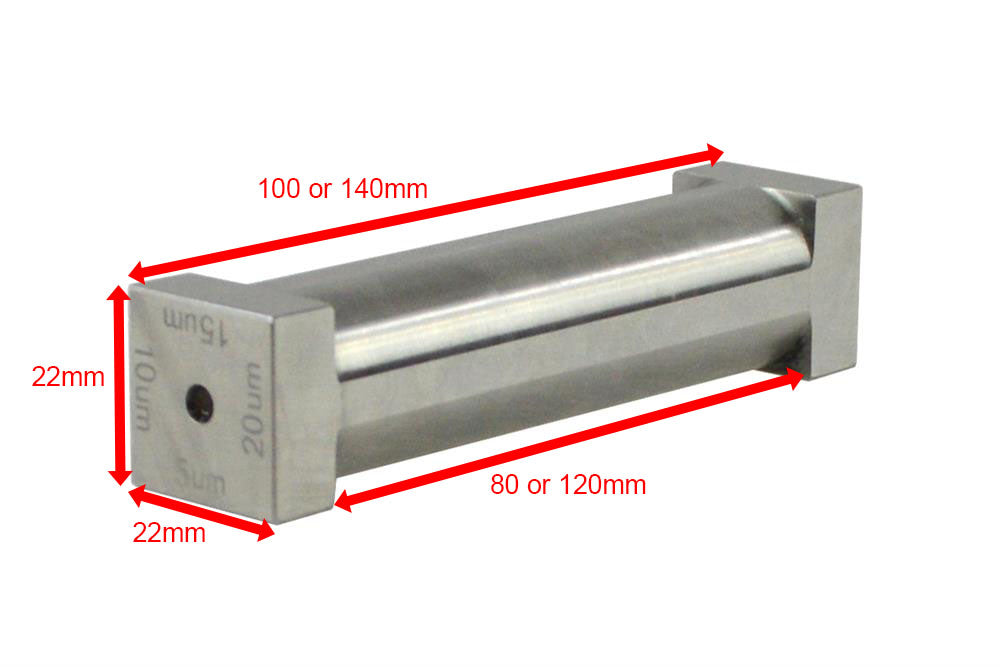

Specifications	Option 1: 80mm film applicator Made of stainless steel 100 mm length Coating width: 80 mm Coating thickness: 5μm10μm15μm20μm one each side or 50, 100, 150, 200μm one each side Customized length (up to 120 mm) is available upon request	Option 2: 120mm flim applicator Made of stainless steel 140 mm length Coating width: 120 mm Coating thickness: 5μm10μm15μm20μm one each side Customized length (up to 120 mm) is available upon request

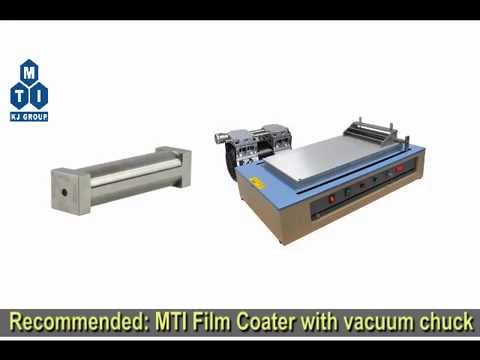

Application Note	If your slurry viscosity is high, the film applicator may be floated . You may add a die weight plat via double side tape on the top the applicator to make it stable. For coating 5-micron thin coating, you must use automatic coater as Pic of below- left, and use slow speed < 10 mm/min For using our automatic coater, customized Traverse Pusher needed to ensure the constant coating speed. (Please click the link to order a customized Traverse Pusher.) For making a small quantity of slurry, you may consider MTI micro-vibration mill or Auto-grinder as Pic d below-right 2 In order to make thin coating, must adjust  Viscosity by Slurry Viscosity tester ( click Pic below-right to order )

Optional Parts
