2900°C Ultrafast Thermal Pressing Furnace (UFTP) up to at > 200K/s Rate & 10 kgf -RTP-M1

RTP-M1 is an Ultrafast thermal Pressing Furnace ( UFTP) ) with a heating speed of more than 200 °C/minute, heating rate up to 2900°C under the selectable deadweight and controlled atmosphere. It is a cost-effective tool to study material properties under fast over-heated conditionsIt also can be used as an RTP annealing furnace or modifed into a CSS film coater.

SPECIFICATIONS:

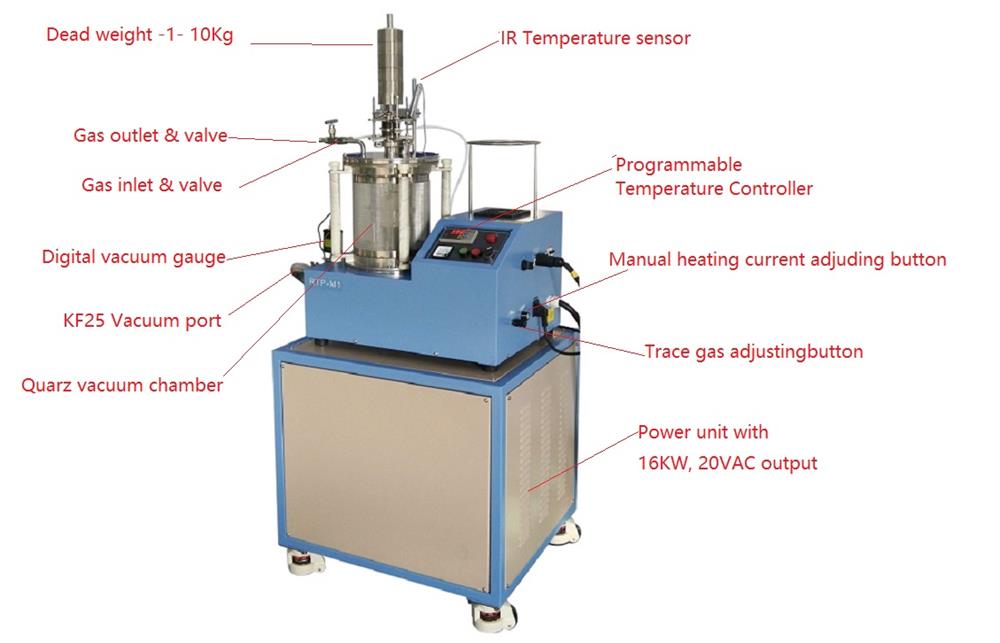

Furnace Feature	6" Quartz tube and SS flange as atmosphere control chamber with a vacuum level of 10x10-5 torr. ( inside gold coating is optional for better heating reflection. Two tungsten foil or graphite foil disks as the heating element can reach 2900°Cmax. rapidly under low voltage and high current. The gap between the two foils is adjustable for various sample thickness The vacuum-sealed deadweight can apply to the sample for hot pressing  IR temperature sensor and the display are available as an option at an extra cost.
Furnace Power	208 - 240 VAC, 50/60Hz, three phase 20 kW transformer with output of 20VDC to heater
Heating Elements and DC Power Supply	Two sets of 2" tungsten disc with 0.2 mm thickness are included Two sets of 2" graphite disc with 0.2 mm thickness are included Max. current: : 500A (DC) DC power 3000W is placed on the bottom of the furnace for easy repair and replacement
Max. Operating Temperature	2900°C Max. 30 seconds Max.
Max. Heating Rate	<= 200 °C/ second
Pressure	Several dead weights are included to apply pressure during heating 10Kg Max Electric motor with digital pressure sensor is available up to 100Kg at the extra cost
Sample size	Max. 35 mm diameter x 1.0 mm thickness  You may process multi-samples at the same time for hi-though research
Temperature Control	There are two heating modes with digital IR temperature senor (1) Manual heating with IR temperature display to achieve max heating rate ( ~ 200oC/S) (2) Programmable temperature control by IR sensor and digital display
Vacuum chamber	High Purity quartz with dimensions: O.D. 216mm, I.D.: 206mm Length: 300mm SS flanges are built-in on the top and bottom with gas inlet and outlet valve and KF 25 port for vacuum pump Vacuum level 10-2 torr by mechanical pump and 10-5 by turbopump The digital vacuum gauge is included, and the vacuum pump is optional

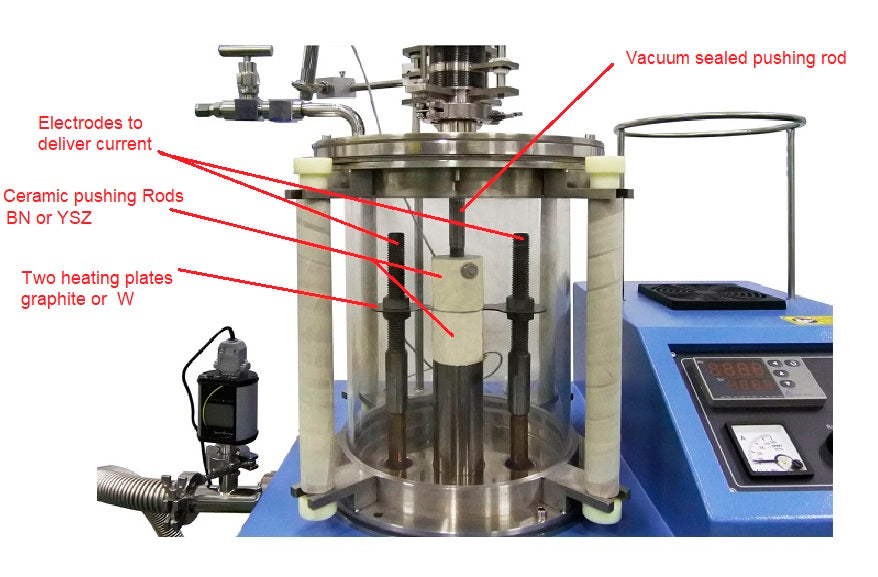

Pressure	Vacuum sealed and a movable rod is installed on the top flange. Two ceramic plates will press on the heating foils, where the sample is located between two heating foils. Deadweight with 1000 g each will be adding the rod and applying the pressure to the sample. 10 pcs deadweight pieces are included for a total of 10 kg weight An electric motor-driven pressure mechanism is available upon request at the extra cost.
Compliance	CE Certified NRTL or CSA certification is available at extra cost.
Water Chiller (Optional)	Recirculating water is required but not included. Please order the KJ5000 separately.  Digital Temperature Controlled Recirculating Water Chiller with 16L / min Flow, 2.8K BTU/hr - EQ-KJ5000
