Rotary Vacuum Sealer for Pouch Cell Batteries ( 2 cell rotary) with Faster Speed- MSK-115A-PM

Rotary Vacuum Sealer for Pouch Cell Batteries ( 2 cell rotary) with Faster Speed- MSK-115A-PM

RM0.00 MYR
RM0.00 MYR
Skip to product information
Rotary Vacuum Sealer for Pouch Cell Batteries ( 2 cell rotary) with Faster Speed- MSK-115A-PM
  • Rotary Vacuum Sealer for Pouch Cell Batteries ( 2 cell rotary) with Faster Speed- MSK-115A-PM
  • Rotary Vacuum Sealer for Pouch Cell Batteries ( 2 cell rotary) with Faster Speed- MSK-115A-PM
Rotary Vacuum Sealer for Pouch Cell Batteries ( 2 cell rotary) with Faster Speed- MSK-115A-PM

Rotary Vacuum Sealer for Pouch Cell Batteries ( 2 cell rotary) with Faster Speed- MSK-115A-PM

SKU: rotary-vacuum-sealer-for-pouch-cell-batteries-2-cell-rotary-with-faster-speed-msk-115a-pm

Price: RFQ

Description

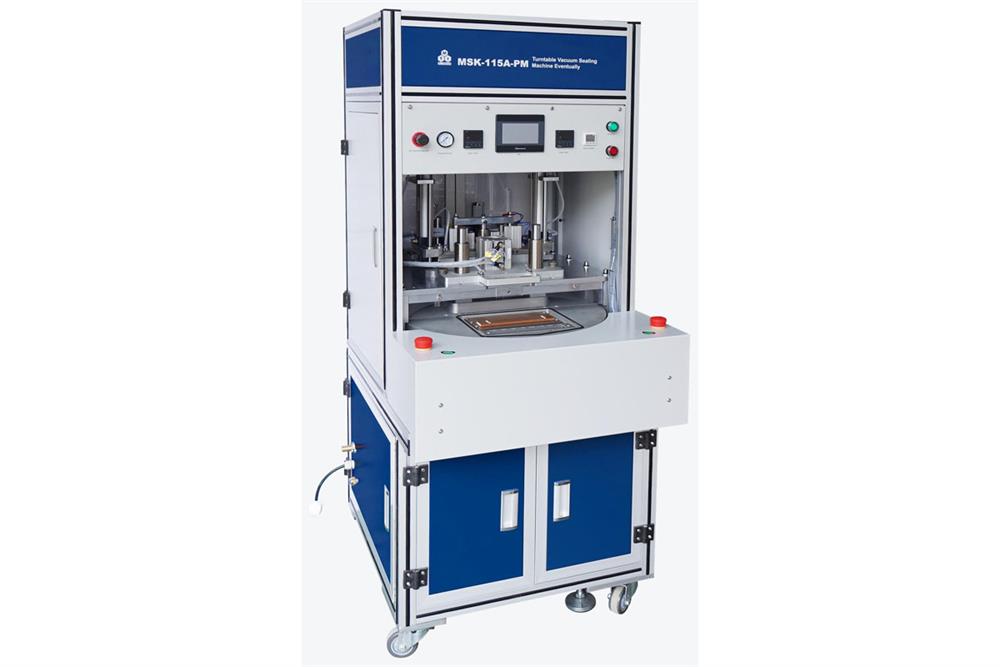

 MSK-115A-PM is a rotary vacuum sealer at fast speed, which can rotate 2 cells (pre-sealed in two sides ), and when one pouch case is sealed under vacuum and another pouch case can be loaded in the front holder.  The estimated sealing speed is about 100 pcs per hour.  The machine can be used for either solid-state battery and liquid Li-ion battery in a dry room SPECIFICATIONS: Power Supply AC 208 -  240V 50/60Hz, Single Phase AC110V is available via a 2000W transformer Max. Power 1,500 W Air Pressure 0.5 ~ 0.8 MPa inert gas  or compressive air pump ( not included ) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range Click here to learn the installation of a gas regulator . Heated Sealing Blade Sealing strip Width: 6 mm Sealing strip Length 200 mm Sealing Temperature: Max 250 with  accuracy: 2.5 The automatic piercing function is built-in Optical sensors are built-in to ensure loading pouch case safely. Max Cell Size to seal L 180 mm x W 135 mm x H 15 mm Heating Time 0 - 99 Seconds Adjustable Vacuum Level Max. -95 Kpa Certification CE Certified NRTL or CSA  certification is available upon request Warranty One year limited warranty and lifetime support Operation Manual & Video Product Dimensions 700 mm(L) x 850 mm(W) x 1700 mm(H) Net Weight 500 kg Reference Video

Power Supply AC 208 -  240V 50/60Hz, Single Phase
AC110V is available via a 2000W transformer
Max. Power 1,500 W
Air Pressure

  • 0.5 ~ 0.8 MPa inert gas  or compressive air pump ( not included )
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range
  • Click here to learn the installation of a gas regulator.
Heated Sealing Blade
  • Sealing strip Width:        6 mm
  • Sealing strip Length       200 mm
  • Sealing Temperature:     Max 250 with  accuracy: 2.5
  • The automatic piercing function is built-in
  • Optical sensors are built-in to ensure loading pouch case safely.
Max Cell Size to seal L 180 mm x W 135 mm x H 15 mm
Heating Time 0 - 99 Seconds Adjustable
Vacuum Level Max. -95 Kpa
Certification CE Certified
NRTL or CSA  certification is available upon request
Warranty One year limited warranty and lifetime support
Operation Manual & Video
Product Dimensions
700 mm(L) x 850 mm(W) x 1700 mm(H)
Net Weight 500 kg
Reference Video
