Description

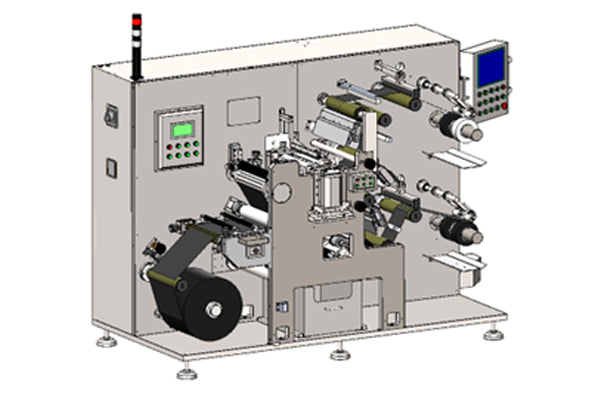

 MSK-CSC-B450 is a Roll to Roll automatic continuous slitting machine for electrode rolls with a maximum 350 mm width (roller width is 400 mm). Multiple electrodes strip slitting High precision round disc blades Cutting depth and speed are adjustable Automatic Roll to Roll Feeding and Correcting SPECIFICATIONS: Working Voltage Power supply: AC 380V AC±10%, 50/60Hz, Three Phases (AC220V is available upon request) Maximum Power: 8 kW (Airbreak ≥ 25 A) Winding and Unwinding Automatic Tension Control: 0- 10 0N, Accuracy: ± 2N Max. Winding and Unwinding Roll Diameter: 400 mm/300mm Guiding Roll Width: 450 mm Core Diameter of Unwinding Roll: 3", Mechanical Expansion for Fixing Cutting Blades Burr condition: ≤ 8 um Four electrode strip slitting Top and bottom set of round blades Blade Materials: Ultrafine Tungsten Alloy Blade Diameter: 100mm Cutting Width Range: 30 ~ 350mm (please indicate the cutting width before ordering). Blade set with various width can be switched. Accuracy: ±0.05mm The width of the electrode strip is preset and fixed Replace the space jacket to manually adjust the width at extra cost Cutting Thickness 10 - 350 um Cutting Speed Adjustable: 0 - 40 m/min Optional Upgrades Multi-blade and wrapping roller can be upgraded to enable slitting at 8 strips at extra cost De-dusting and iron powder removing device could be added at extra cost

Working Voltage
  • Power supply: AC380V AC±10%, 50/60Hz, Three Phases (AC220V is available upon request)
  • Maximum Power: 8 kW (Airbreak ≥ 25 A)
Winding and Unwinding
  • Automatic Tension Control: 0- 100N, Accuracy: ± 2N
  • Max. Winding and Unwinding Roll Diameter: 400mm/300mm
  • Guiding Roll Width: 450 mm
  • Core Diameter of Unwinding Roll: 3", Mechanical Expansion for Fixing
Cutting Blades
  • Burr condition: ≤ 8 um
  • Four electrode strip slitting
  • Top and bottom set of round blades
  • Blade Materials: Ultrafine Tungsten Alloy
  • Blade Diameter: 100mm
Cutting Width
  • Range: 30 ~ 350mm (please indicate the cutting width before ordering). Blade set with various width can be switched. Accuracy: ±0.05mm
  • The width of the electrode strip is preset and fixed
  • Replace the space jacket to manually adjust the width at extra cost
Cutting Thickness
  • 10 - 350 um
Cutting Speed
  • Adjustable: 0 - 40 m/min
Optional Upgrades
  • Multi-blade and wrapping roller can be upgraded to enable slitting at 8 strips at extra cost
  • De-dusting and iron powder removing device could be added at extra cost
