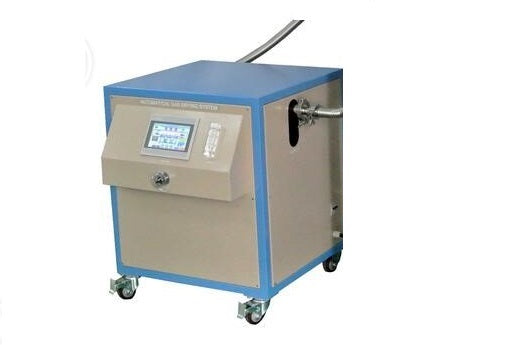

Automatic Recirculating Gas Purification System (O2 < 1 ppm) With Temperature Control System- RMP2F

Working Voltage

• 20V 50/60Hz, Single Phase (110V version is available at extra cost)
• 1500W Max.

• Precision oxygen is built-in ( without humidity sensor )
• Automatically purging function is built-in for quick reducing O2 < 100ppm before recycling.
• The automatic pressure control system is built in to keep the pressure at a constant level.
• Purification Cylinder: made of BASF antioxidant materials and UOP water adsorbent materials.
• Purification ratings: O2 < 1ppm  ( H2O < 1 ppm will reach <1 ppm when oxygen < 1 ppm)
• Moisture removal capacity: 2 kg
• Oxygen removal capacity:   60L
• Stainless steel pipe connection
• Flow Rate: 1-60m³/h
• Auto regeneration process with user-defined parameters.
• 6" color PLC touch panel is included which can set and display the oxygen and pressure level, and temperature control programme.

• Two 304 stainless steel KF40 ports for inert gas inlet/outlet recirculation through the filter
• One heavy-duty vacuum pump, 156L/m is included in this system: EQ-FYP-Pump
• Note: You need to order two sets of 1000mm length SS Bellows: KF-40 to the KF-25 Reducer Union, KF-40 & KF-25 quick clamp to connect the purification system to MTI's VGB-3 or VGB-4A glove box. KF-40 to the KF-25 Reducer Union are available at extra cost (Please click on the third picture below for details)

Working gases

• Working gases: Helium, Nitrogen, Argon
• Regeneration Gas: 95% N2 + 5% H2 gas
• One flow meter is included for accurate gas filling

Communication with MTI furnaces

• The purification system has a build-in connection port to the MTI furnace.
  Control and monitor furnace status can be set over the touchscreen.


• 60 kg (135 lbs)

• 960mm(L) x 700mm(W) x 800mm(H) (38" x 28" x 32")

• 1100mm(L) x 815mm(W) x 1200mm(H) (44" x 32" x 47")

     (1)     (2)       (3)      (4)     (5)

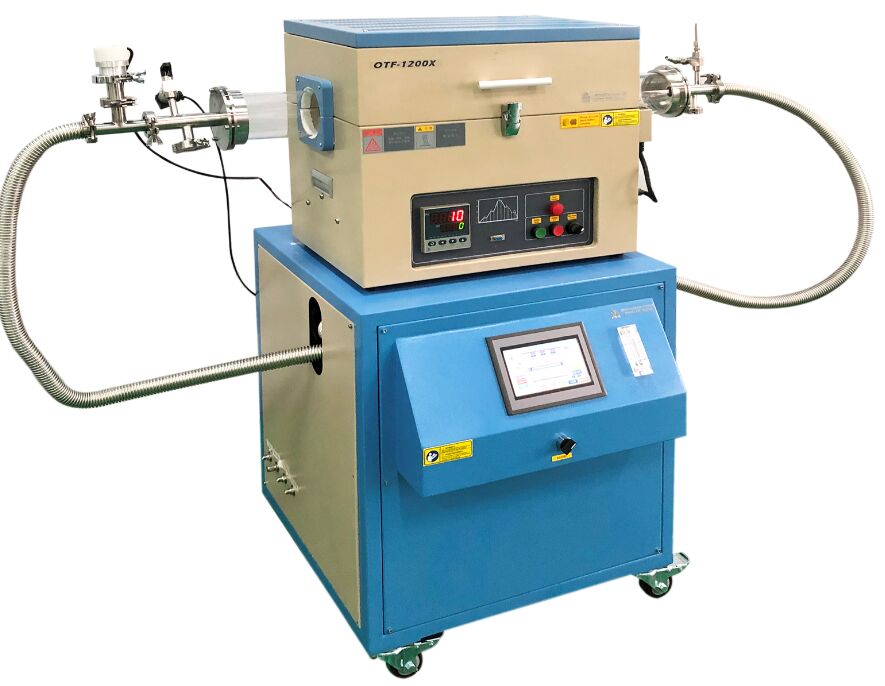

1. Annealing Ti alloy with or without sensor to replace high-cost turbo-pump.
2. Connect to a glovebox to remove moisture  for battery research at lower cost

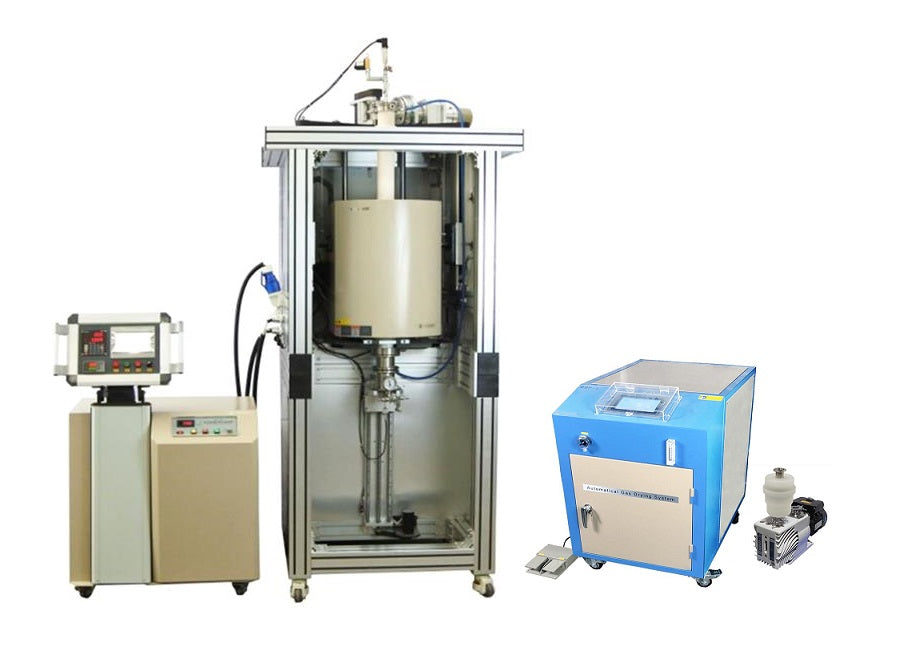

3. Connect to a Bridgman grower to synthesize metallic single crystal with Ar gas saving

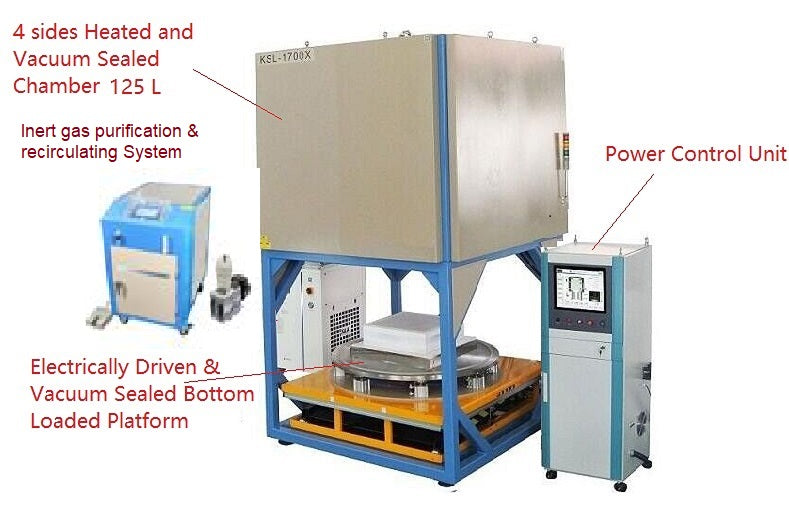

4. Connect with atmosphere controlled box furnace for sintering
5. Connect with an atmosphere controlled quenching furnace.
