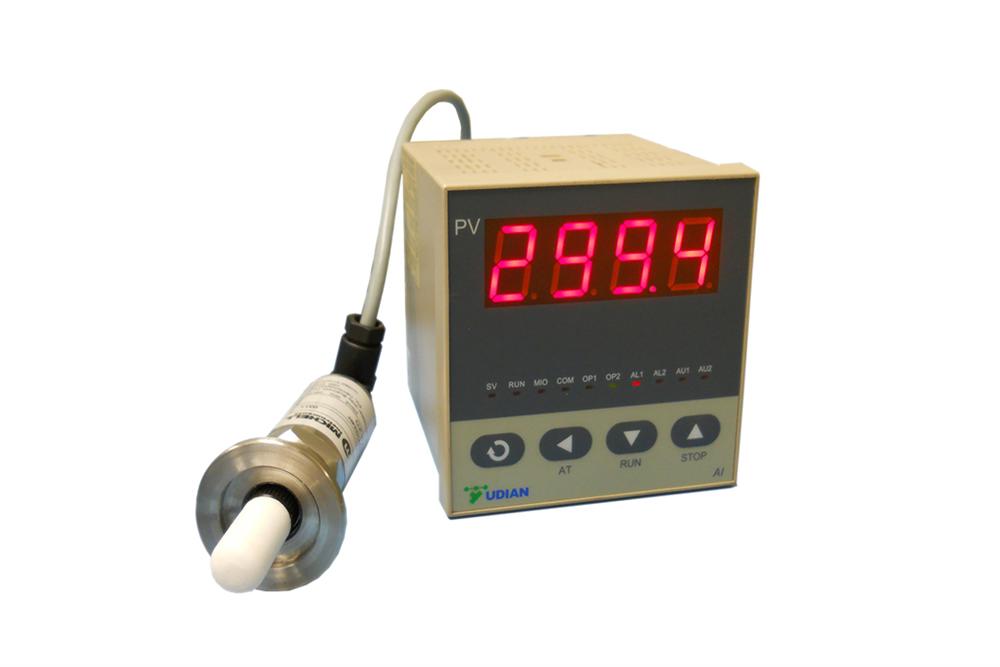

Precision Humidity Analyzer with KF25 Flange ( 0 - 3000 ppm ) - RH800

EQ-RH-800-LD is a precision humidity analyzer which can measure humidity level from 0~3000PPM. It is designed to be used in conjunction with the MTI glove-box for humidity monitoring.

Sensor	Durable ceramic sensor made in the UK Click picture to enlarge	Working Pressure	0.1 Pa ~ 30 MPa (absolute)
Dew Point Measure Range	0 - 3000 ppm ( standard display ) (please click here to change unit from dew point to ppm & RH%)	Gas Flow Speed	1 ~ 5 L/min Installed in chamber
Display Accuracy	+/- 1 ppm	Working Temperature	- 20 ~ + 50°C
Working gas temperature	- 40 ~ +60°C	Storage Temperature	- 40 ~ + 75°C
Input Power	12 ~ 28V DC	Environmental Standard	IP65
AC Power adapter	110 - 240V AC to 12V DC Included	Net weight	150g
Output Signal & Display	Sensor size: Ø13mm x 26mm (Sensor) Output signal from sensor:4 ~ 20mA Displaying Unit: 110x95x95mm (Display Model: 5.01 7.6a Unit at ppm) Device Failure when Measure Point: Higher than Max. 20 mA (fails at 23 mA) Lower than Min. 4 mA	Reading 2990-3000ppm outside the glovebox
Sensor Fitting	Compatible with standard KF25 fitting, click below picture for details: You may need to order a KF25-KF40 adapter to connect the sensor to the glove box or device that has a KF40 port, click below picture for details:	Weight	1.9 lbs
		Electrical Connections 4-20 mA connections 2-wire Pin 1 4–20 mA (Port 14) Pin 3 POWER (Port 16)
Operation Manual
Warranty	One year limited with lifetime support

,

,
