SS316 Reaction Vessel (1100 ml) with 6 1/4" Feedthrough Ports for VBF-600S - RC-SS1100FT6
  • SS316 Reaction Vessel (1100 ml) with 6 1/4" Feedthrough Ports for VBF-600S - RC-SS1100FT6
  • SS316 Reaction Vessel (1100 ml) with 6 1/4" Feedthrough Ports for VBF-600S - RC-SS1100FT6
  • SS316 Reaction Vessel (1100 ml) with 6 1/4" Feedthrough Ports for VBF-600S - RC-SS1100FT6
  • SS316 Reaction Vessel (1100 ml) with 6 1/4" Feedthrough Ports for VBF-600S - RC-SS1100FT6
SS316 Reaction Vessel (1100 ml) with 6 1/4" Feedthrough Ports for VBF-600S - RC-SS1100FT6

SS316 Reaction Vessel (1100 ml) with 6 1/4" Feedthrough Ports for VBF-600S - RC-SS1100FT6

SKU: rc-ss1100ft6

Price: RFQ

Description

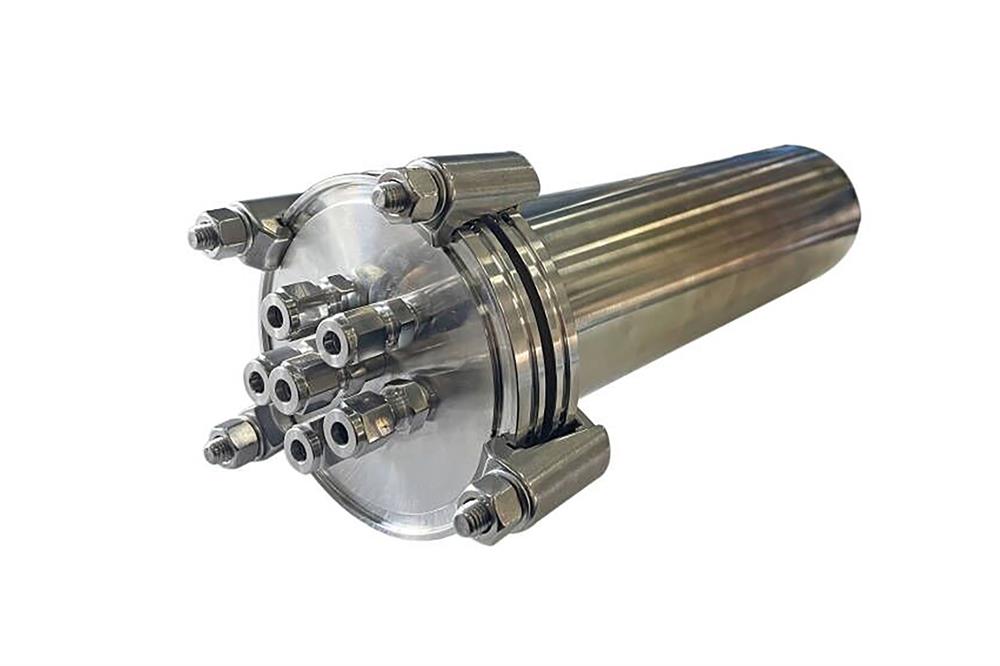

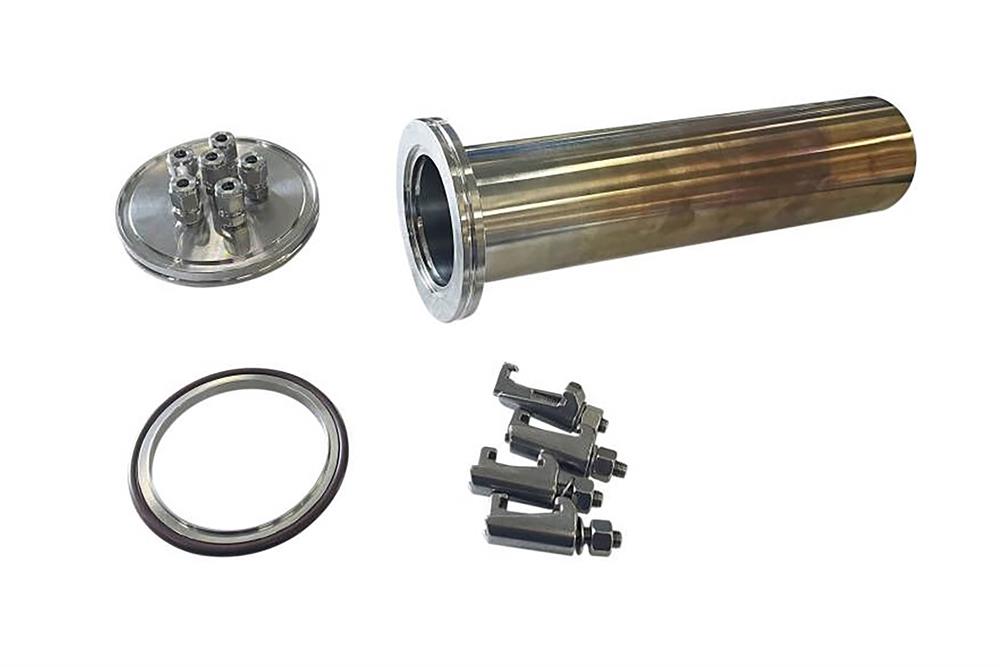

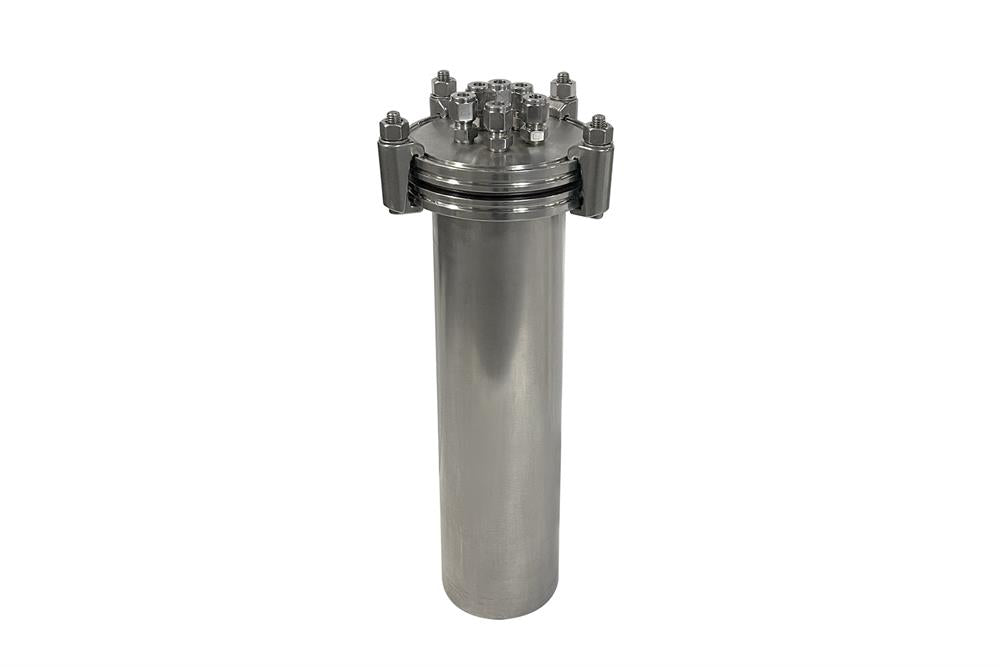

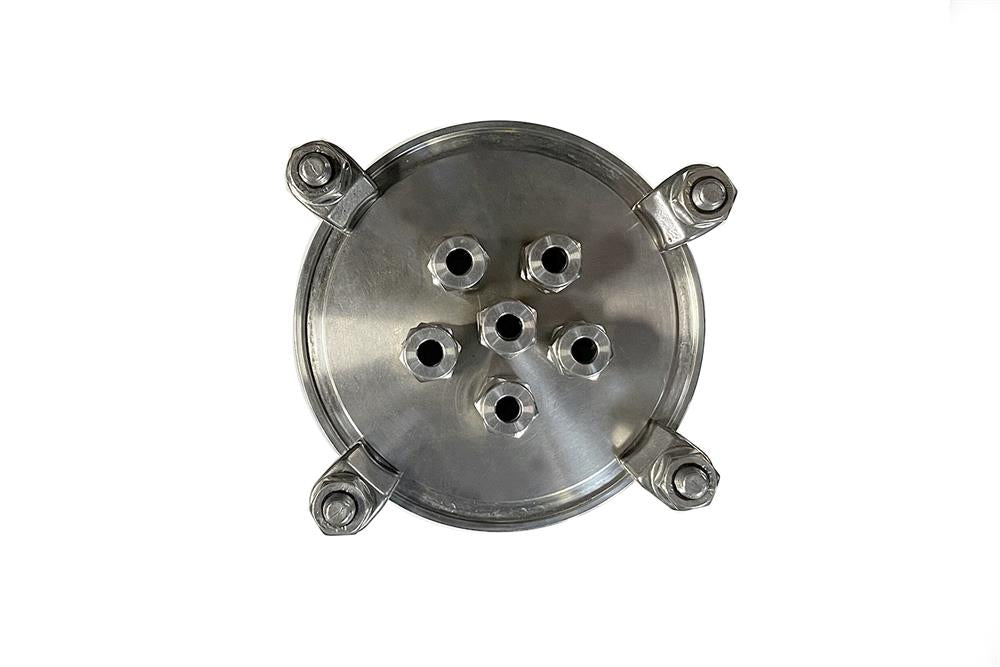

 RCSS31676 is an SS316 stainless steel tube with a vacuum flange and six 1/4" dia. feedthrough, designed for the reactor of molten salt battery. For use with VBF-600S . Structure SS316 Stainless Steel Dimension 76mm OD x 70mm ID x 300 mm height Volume 1100ml Ports 1/4" compression tube ports x 6 Flange Type DN80ISO-K Working Temperature RT - 600°C Max Working Pressure Vacuum: 10e-3 Torr by mechanical pump, or 10e-5 torr by a turbopump Positive pressure: 3 bar Net Weight 3.5Kg Application Crucible for melting Li and other alloys Reactor of molten salt rechargeable battery

Structure SS316 Stainless Steel
Dimension
  76mm OD x 70mm ID x 300 mm height
Volume 1100ml
Ports 1/4" compression tube ports x 6
Flange Type DN80ISO-K
Working Temperature RT - 600°C Max
Working Pressure Vacuum: 10e-3 Torr by mechanical pump, or 10e-5 torr by a turbopump
Positive pressure: 3 bar
Net Weight 3.5Kg
Application Crucible for melting Li and other alloys
Reactor of molten salt rechargeable battery
