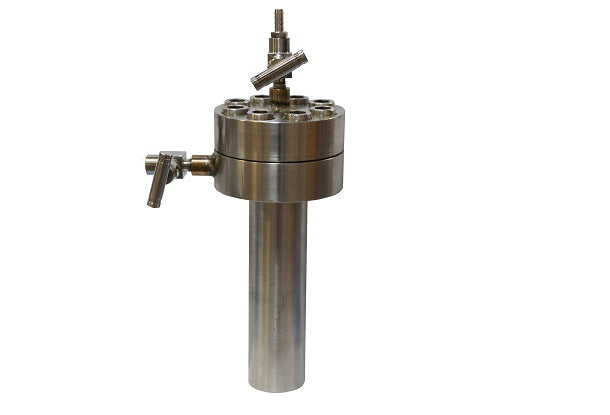

Ni-Based Superalloy High Pressure Hydro-thermal Reactor 1100C Max, Optional Volume 65ml &100ml - RC-Ni100-V
  • Ni-Based Superalloy High Pressure Hydro-thermal Reactor 1100C Max, Optional Volume 65ml &100ml - RC-Ni100-V
Ni-Based Superalloy High Pressure Hydro-thermal Reactor 1100C Max, Optional Volume 65ml &100ml - RC-Ni100-V

Ni-Based Superalloy High Pressure Hydro-thermal Reactor 1100C Max, Optional Volume 65ml &100ml - RC-Ni100-V

SKU: rc-ni100-v

Price: RFQ

Specifications

 RC-Ni-V is a compact reactor made of Ni-base Superalloy, which has excellent creep strength and anti-oxidation. It can reach 1100°C with a pressure up to 4Mpa under oxygen or inert gases. It is an ideal tool for preparing advanced material by hydrothermal method, especially heat treat sample under high oxygen pressure. SPECIFICATIONS Structure Made of Ni-Based Super-alloy ( Waspaloy or equivalent ) Working Voltage AC120V-220V, 50/60HZ Output Power 2.2KW Reactor Capacity & Dimensions (Please select the volume in the option bar) 55mm OD x 20mm ID x 210 mm height, 65 mL capacity 65mm OD x 25mm ID x 210 mm height, 100 mL capacity Working Temperature RT - 1100 °C Max. RT-1000 °C (continuous heating) 1100 °C (heating ≤ 30 min) Working Pressure (65 mL capacity) 36 MPa (5292 PSI) Max at 500°C 21 MPa (3046 PSI) Max. at 800 °C 12.5 MPa (1813 PSI) Max. at 900 °C 6.3 MPa (914 PSI) Max. at 1000 °C 4.2 MPa (609 PSI) Max. at 1100°C Working Pressure (100mL capacity) 20 MPa (2900 PSI) Max. at 800 °C 12 MPa (1740 PSI) Max. at 900 °C 6 MPa (870 PSI) Max. at 1000 °C 4 MPa ( 580PSI) Max. at 1100 °C Dimensions Main Unit Dimensions:  430mm x 445mm x 540mm (L x W x H) Control Unit Dimensions: 340mm x 345mm x 145 (L x W x H) Net Weight 65 ml: 11 kg 100ml: 15 kg Accessories SS306 needle valve with 1/4 pipe connector included Optional Upgrades ( click picture to review details ) 304SS 1/4" O.D tube fitting for connecting reactor to a gas tank via 1/4" SS pipe You may click the picture to order digit-pressure gauge Click picture above to order a pressure relieft valve for safety operation Optional: You may insert the reactor into the vertical furnace with a Temperature controller to 1100°C. ( click the picture to order the whole system Warning For your safety, the high-pressure vessel and furnace must be placed inside an explosive-proof box during use under the high-pressure box or under fume hood. never face on the top flange to avoid an accident. Attention : Due to the high-pressure gas output from the gas cylinder, it is necessary to install the gas pressure regulator with it to reduce the output pressure, avoid over pressurizing the furnace chamber and ensure a safe operation. Click here to learn the installation of a gas regulator. Recommend using a torque spanner to tighten the screws with the flange. Proper torque should be used is 200 N⋅m. Do not over-tightening the flange screws as this may cause damages to the flange or screws.

Structure
  • Made of Ni-Based Super-alloy ( Waspaloy or equivalent )
Working Voltage
  • AC120V-220V, 50/60HZ
Output Power
  • 2.2KW
Reactor Capacity & Dimensions (Please select the volume in the option bar)
  • 55mm OD x 20mm ID x 210 mm height, 65 mL capacity
  • 65mm OD x 25mm ID x 210 mm height, 100 mL capacity
Working Temperature
  • RT - 1100 °C Max.
  • RT-1000 °C (continuous heating)
  • 1100 °C (heating ≤ 30 min)
Working Pressure
(65 mL capacity)
  • 36 MPa (5292 PSI) Max at 500°C
  • 21 MPa (3046 PSI) Max. at 800 °C
  • 12.5 MPa (1813 PSI) Max. at 900 °C
  • 6.3 MPa (914 PSI) Max. at 1000 °C
  • 4.2 MPa (609 PSI) Max. at 1100°C
Working Pressure
(100mL capacity)
  • 20 MPa (2900 PSI) Max. at 800 °C
  • 12 MPa (1740 PSI) Max. at 900 °C
  • 6 MPa (870 PSI) Max. at 1000 °C
  • 4 MPa ( 580PSI) Max. at 1100 °C
Dimensions
  • Main Unit Dimensions:  430mm x 445mm x 540mm (L x W x H)
  • Control Unit Dimensions: 340mm x 345mm x 145 (L x W x H)
Net Weight
  • 65 ml: 11 kg
  • 100ml: 15 kg
Accessories SS306 needle valve with 1/4 pipe connector included


Optional Upgrades ( click picture to review details )

304SS 1/4" O.D tube fitting for connecting reactor to a gas tank via 1/4" SS pipe

You may click the picture to order digit-pressure gauge
Click picture above to order a pressure relieft valve for safety operation
Optional: You may insert the reactor into the vertical furnace with a Temperature controller to 1100°C. ( click the picture to order the whole system
Warning
  • For your safety, the high-pressure vessel and furnace must be placed inside an explosive-proof box during use under the high-pressure box or under fume hood. never face on the top flange to avoid an accident.
  • Attention: Due to the high-pressure gas output from the gas cylinder, it is necessary to install the gas pressure regulator with it to reduce the output pressure, avoid over pressurizing the furnace chamber and ensure a safe operation. Click here to learn the installation of a gas regulator.
  • Recommend using a torque spanner to tighten the screws with the flange. Proper torque should be used is 200 N⋅m. Do not over-tightening the flange screws as this may cause damages to the flange or screws.
,

304SS 1/4" O.D tube fitting for connecting reactor to a gas tank via 1/4" SS pipe

You may click the picture to order digit-pressure gauge
Click picture above to order a pressure relieft valve for safety operation
Optional: You may insert the reactor into the vertical furnace with a Temperature controller to 1100°C. ( click the picture to order the whole system
