R2R Automatic Precision Die Cutter with Collecting & Dust Removal - MSK-180-AMC
  • R2R Automatic Precision Die Cutter with Collecting & Dust Removal - MSK-180-AMC
  • R2R Automatic Precision Die Cutter with Collecting & Dust Removal - MSK-180-AMC
  • R2R Automatic Precision Die Cutter with Collecting & Dust Removal - MSK-180-AMC
R2R Automatic Precision Die Cutter with Collecting & Dust Removal - MSK-180-AMC

R2R Automatic Precision Die Cutter with Collecting & Dust Removal - MSK-180-AMC

SKU: r2r-automatic-precision-die-cutter-with-collecting-dust-removal-msk-180-amc

Price: RFQ

Specifications

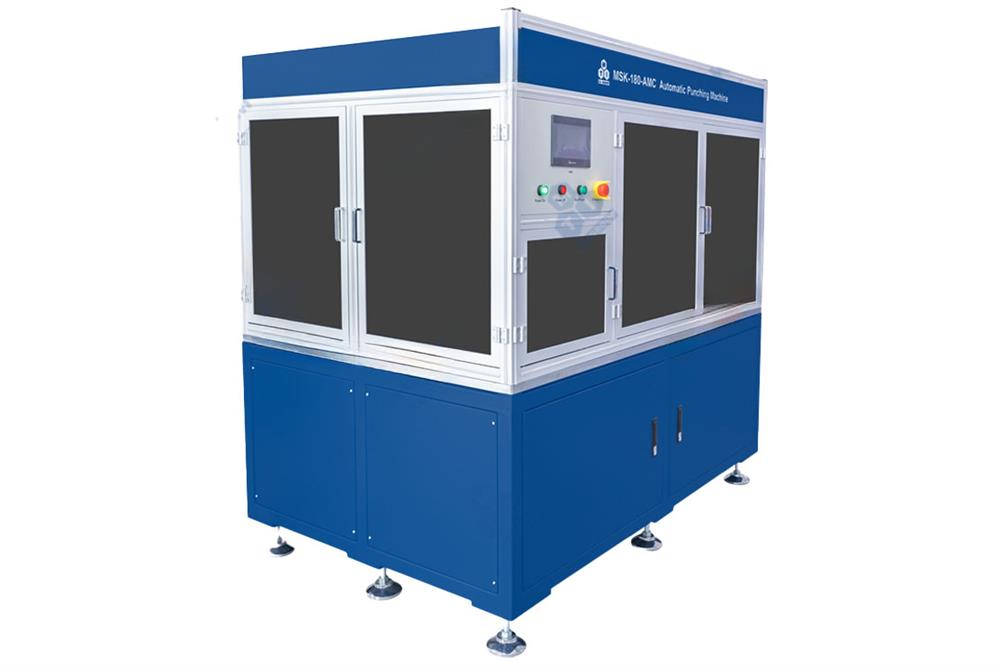

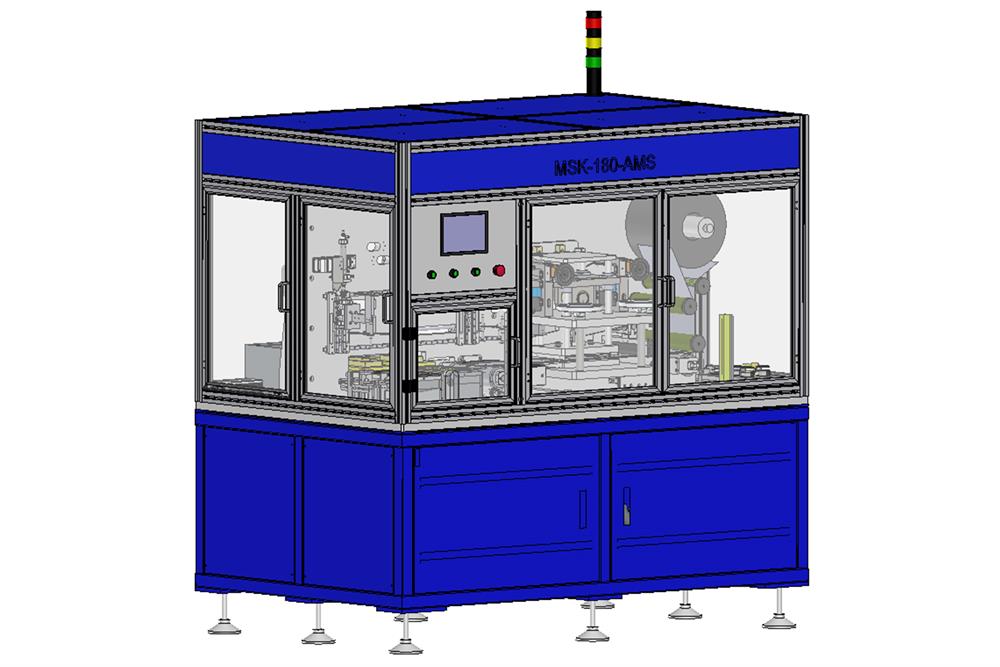

 The Roll to Roll Automatic Die Cutting Machine MSK-180-AMC is designed for the pouch cell electrodes including cathode and anode with the current collector tab die cutting. It can also be used for aluminum or copper metal die cutting. The roll to roll feature can achieve a precise and high-speed die cutting. The automatic collecting by the vacuum chucks and dust removel are included in the standard package. The PET conveyor enables the streamlined operation for material auto-feeding, die-cut, and final reel collection of wasted materials. Its high productivity makes it an ideal tool for pouch cell pilot line production. Patent 2017215277340 for the Pouch Cell Automatic Die Cutting Machine MSK-180-AM since June 2018. SPECIFICATIONS: Features The automatic, high-speed operation for maximum productivity The stream-line operation for material auto-feeding, die-cut and final reel collection of wasted materials PET made conveyor is contamination-free to the electrode materials Adjustable cutting force and speed, integrated digital counter Integrated IR curtain at the front for safe operations Automatic Collecting by Vacuum Chucks and Counter Dust Removal After the die cutting Working Voltage & Power 220VAC +/-10%, 50/60 Hz, single-phase, 3KW 110V can be operated via a 4.5KW transformer Die Set Dimensions The customized cutting die is available upon request Max. cutting size: 160 mm L x 100 mm W The cutting die set is not included in the standard package! Please provide detailed size requirements at the time of RFQ Cutting Speed 10 Pieces per minute / 10 PPM Cutting Thickness Max. 0.5mm (cathode or anode electrodes) Deviation Control Auto deviation correction, ± 0.5 mm Cutting Force Max. 3 Ton Cutting Precision ± 0.1 mm <20um burr Roller Diameter 300 mm Substance/Foil 200 mm Width Maximum Driven Gas Driven by any standard air compressor, which is not included. Please click the picture on the left to order. 0.5~0.8MPa compress gas is required for operation. Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator. Warranty One year limited warranty with lifetime support Compliance CE certified UL/CSA certification is available upon request Patent 2017215277340 for the Pouch Cell Automatic Die Cutting Machine MSK-180-AM since June 2018. Application Notes To increase the productivity of the pouch battery, you may need MSK-111A-E Auto Electrode Stacking Machine, and use MSK-120 Pouch Forming Machine to form the pouch. MTI Supplies ready-to-use Cathode & Anode Electrodes, Separator Film, and Laminated Aluminum Pouch for your research. Please click the picture below for product details. MTI Supplies Nylon-made Splittable Pouch Cell Casing for Battery R&D, please click the picture below for more details.

Features
  • The automatic, high-speed operation for maximum productivity
  • The stream-line operation for material auto-feeding, die-cut and final reel collection of wasted materials
  • PET made conveyor is contamination-free to the electrode materials
  • Adjustable cutting force and speed, integrated digital counter
  • Integrated IR curtain at the front for safe operations
  • Automatic Collecting by Vacuum Chucks and Counter
  • Dust Removal After the die cutting

Working Voltage & Power
  • 220VAC +/-10%, 50/60 Hz, single-phase, 3KW
  • 110V can be operated via a 4.5KW transformer
Die Set Dimensions
electrode die cutter
  • The customized cutting die is available upon request
  • Max. cutting size: 160 mm L x 100 mm W
  • The cutting die set is not included in the standard package!Please provide detailed size requirements at the time of RFQ
Cutting Speed
  • 10 Pieces per minute / 10 PPM
Cutting Thickness
  • Max. 0.5mm (cathode or anode electrodes)
Deviation Control
  • Auto deviation correction, ± 0.5 mm
Cutting Force
  • Max. 3 Ton
Cutting Precision
  • ± 0.1 mm
  • <20um burr
Roller Diameter
  • 300 mm
Substance/Foil
  • 200 mm Width Maximum
Driven Gas
  • Driven by any standard air compressor, which is not included. Please click the picture on the left to order.
  • 0.5~0.8MPa compress gas is required for operation.
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Warranty
  • One year limited warranty with lifetime support
Compliance
  • CE certified
  • UL/CSA certification is available upon request
  • Patent 2017215277340 for the Pouch Cell Automatic Die Cutting Machine MSK-180-AM since June 2018.
Application Notes

  • MTI Supplies ready-to-use Cathode & Anode Electrodes, Separator Film, and Laminated Aluminum Pouch for your research. Please click the picture below for product details.
  • MTI Supplies Nylon-made Splittable Pouch Cell Casing for Battery R&D, please click the picture below for more details.
