R2R Automatic Pouch Case Forming Machine for Pilot Scale of Pouch Cell Production - MSK-120A
  • R2R Automatic Pouch Case Forming Machine for Pilot Scale of Pouch Cell Production - MSK-120A
  • R2R Automatic Pouch Case Forming Machine for Pilot Scale of Pouch Cell Production - MSK-120A
R2R Automatic Pouch Case Forming Machine for Pilot Scale of Pouch Cell Production - MSK-120A

R2R Automatic Pouch Case Forming Machine for Pilot Scale of Pouch Cell Production - MSK-120A

SKU: r2r-automatic-pouch-case-forming-machine-for-pilot-scale-of-pouch-cell-production-msk-120a

Price: RFQ

Specifications

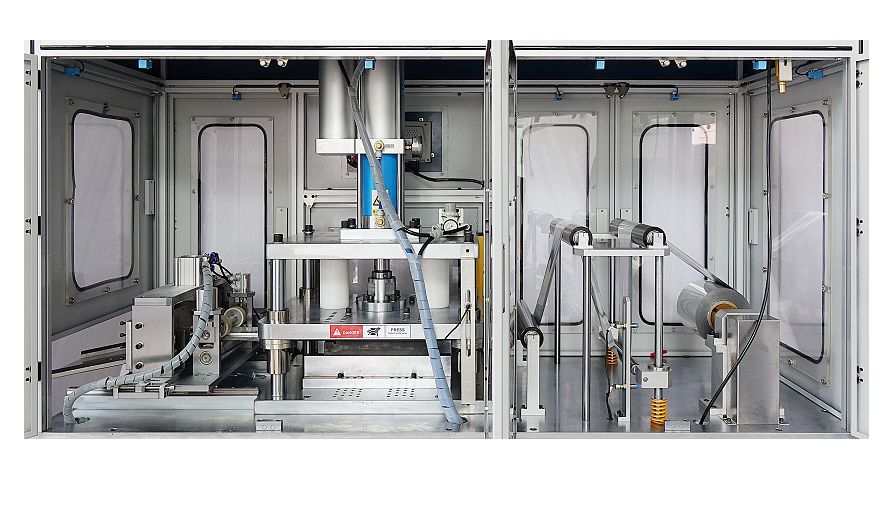

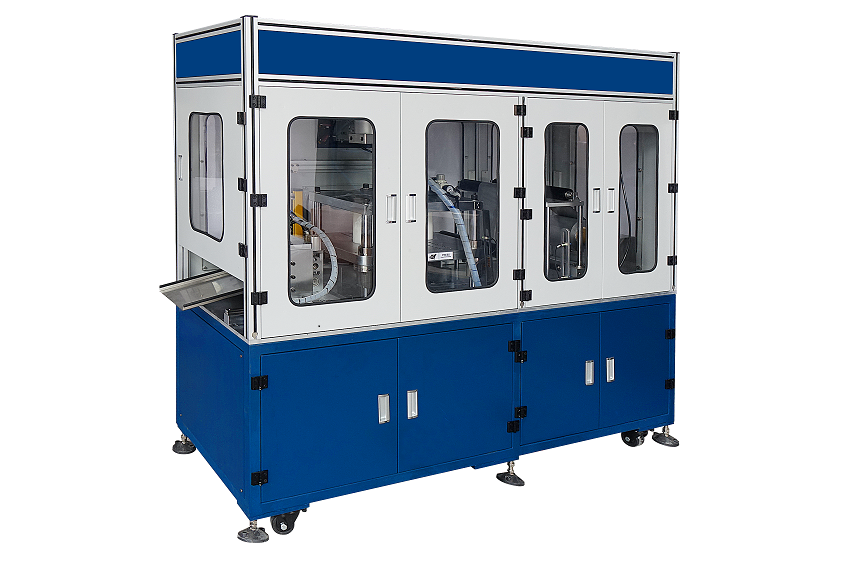

 MSK-120A is an automatic roll to roll case/cup forming machine for pouch cell production. It is capable of automatic, high-speed preparation of polymer cases made of aluminum laminated films. Its high productivity makes it an ideal tool for the pouch cell pilot line. SPECIFICATIONS: Features Automatic, high-speed operation for maximum productivity Touch screen control of forming/punching process: punching depth, maintain time, delay time Automatic roll feeding and adjustable cutting length Integrated IR sensors for safe operations Input Film Size Maximum film width: 250 mm Maximum diameter of the film roll: 300 mm Die Set Customized die is available upon request Max die dimension: 400 mm L x 400 mm W The die set is not included with the tool! Please provide your desired size of the customization die when RFQ Forming Speed 200 - 400 pcs / hour Working Voltage AC 220 V 50/60 Hz, single phase Max. Power Consumption 1 kW Air Pressure Requirement 0.5 - 0.8 MPa 11 L consumption of compressed air per punch Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator. Punching Precision ± 0.2 mm Punching Depth Max 6 mm Punching Pressure Max 10 metric ton Al Laminated Film Film thickness: 0.10 - 0.20 mm acceptable Al laminated film is available upon request Operation Manual & Video Video and Manual Coming Soon

Features
  • Automatic, high-speed operation for maximum productivity
  • Touch screen control of forming/punching process: punching depth, maintain time, delay time
  • Automatic roll feeding and adjustable cutting length
  • Integrated IR sensors for safe operations
Input Film Size
  • Maximum film width: 250 mm
  • Maximum diameter of the film roll: 300 mm
Die Set
  • Customized die is available upon request
  • Max die dimension: 400 mm L x 400 mm W
  • The die set is not included with the tool! Please provide your desired size of the customization die when RFQ
Forming Speed
  • 200 - 400 pcs / hour
Working Voltage
  • AC 220 V 50/60 Hz, single phase
Max. Power Consumption
  • 1 kW
Air Pressure Requirement
  • 0.5 - 0.8 MPa
  • 11 L consumption of compressed air per punch
  • Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.

Punching Precision
  • ± 0.2 mm
Punching Depth
  • Max 6 mm
Punching Pressure
  • Max 10 metric ton
Al Laminated Film
  • Film thickness: 0.10 - 0.20 mm acceptable
  • Al laminated film is available upon request
Operation Manual & Video
  • Video and Manual Coming Soon
