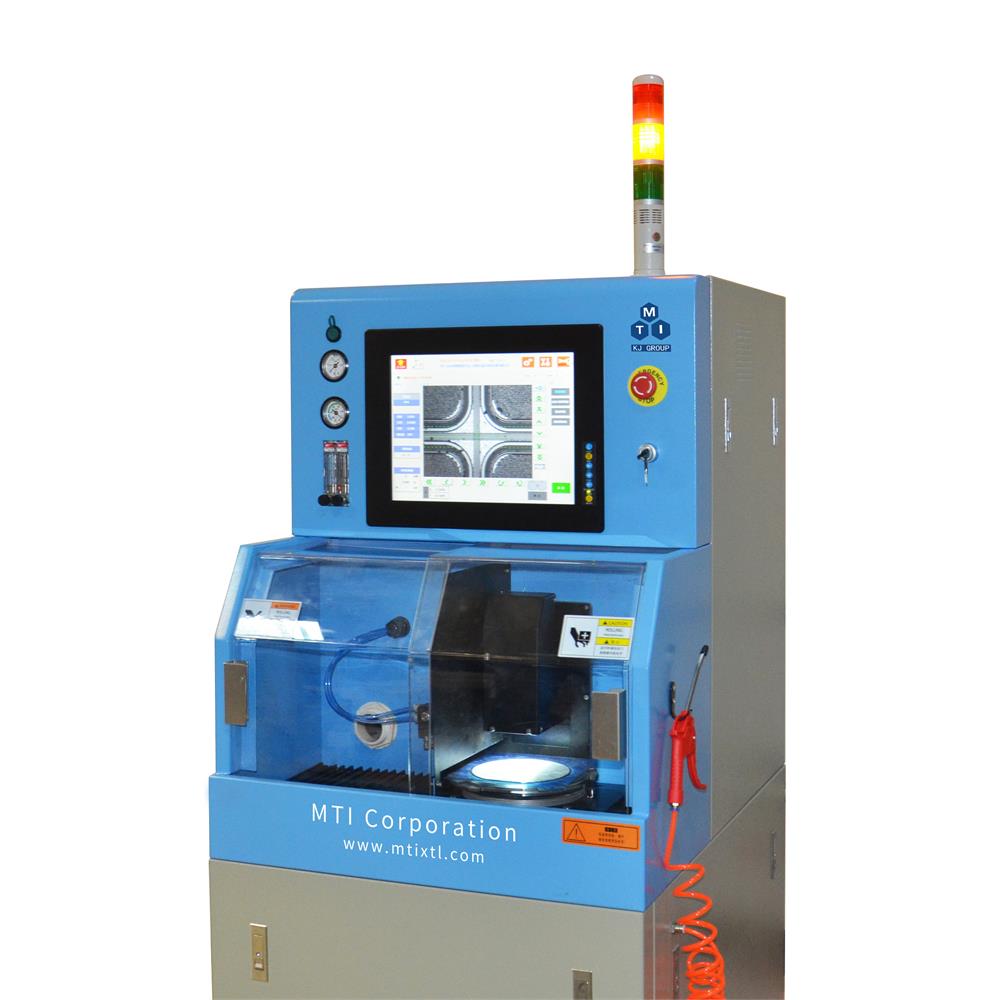

Precision Dicing Saw with Air Bearing for 6" Max Wafer - SYJ-1610
  • Precision Dicing Saw with Air Bearing for 6" Max Wafer - SYJ-1610
  • Precision Dicing Saw with Air Bearing for 6" Max Wafer - SYJ-1610
  • Precision Dicing Saw with Air Bearing for 6" Max Wafer - SYJ-1610
  • Precision Dicing Saw with Air Bearing for 6" Max Wafer - SYJ-1610
Precision Dicing Saw with Air Bearing for 6" Max Wafer - SYJ-1610

Precision Dicing Saw with Air Bearing for 6" Max Wafer - SYJ-1610

SKU: precision-dicing-saw-with-air-bearing-for-6-max-wafer-syj-1610

Price: RFQ

Specifications

 SYJ-1610 Precision Dicing Saw with Air Bearing offers high precision, rigidity, and output power while keeping low noise levels and a long lifespan. An industrial computer control system with a 15-inch industrial-grade LCD touchscreen is equipped for all operations and real-time status monitoring, also offers a self-guided program mode, and a multi-set process program can be programmed to adapt to various materials and methods of cutting. The spindle speed is adjustable. The y-axis is controlled by grating closed-loop and fitted by a mathematical model for higher precision. More than collimation and rapid alignment,  the ring Light, and coaxial light can be switched at will with microscope auto-focus, Self-locking by cutting space, and multiple protection measures such as Compressed air, cooling water, power supply, and alarm prompt, make it safer to use. SPECIFICATIONS Voltage AC 220±V10% Single Phase Power 3kW

Voltage AC 220±V10% Single Phase
Power 3kW
Specifications
  • Spindle Speed:  3000-50000 rpm
  • Spindle output power:  1.5 kW
  • X-axis cutting stroke:  240mm Max.
  • X-axis velocity range:  0 ~ 400 mm/s
  • Y-axis cutting stroke:  165mm Max.
  • Y-axis single stepping accuracy:  0.003 mm/5mm
  • The maximum error of the y-axis: 0.005 mm/160mm
  • Z-axis effective travel: Max30mm
  • Z-axis repositioning accuracy: 0.001 mm
  • The application size of the Z-axis Cutter: φ50mm ~ φ60mm
  • Theta Axis Drive Mode: DD Motor
  • Theta axis angle range: 320 °
  • Resolution of θ Axis: 1′
  • Lighting Source: LED Ring Light Source + coaxial light
  • CCD: Industrial Camera
  • Monitor: industrial grade 15′ color LCD touchscreen
  • Control system: PC Base + Windows XP
Dicing Blade
  • One pair of the standard flange is included to accept  40 mm ID x 50.8 - 60 mm OD x 0.035 ~ 0.35 mm dicing blade
  • Mac. cutting depth : 1.5 mm
  • Custom flange is available upon request
Cooling Water Requirements
  • A Φ12MM connection port is reserved. Recommended using a quick-connect plug with a separate valve
  • Cooling water for Spindle:
    • Recommend an industrial circulating water chiller with 0.6 horsepower cooling capacity and temperature control accuracy ± 2 ° C
    • The interface is φ6mm hose (refer to Hanway CA-0.6 water chiller for details)
    • May share the same intake with the cooling water for cutting
  • Cooling water for cutting
    • The pipeline should be less than 2 meters
    • The pressure should be not less than 0.3 Mpa
    • The flow should be not less than 3l/min
Waste Water Pipe Requirements
  • Inside diameter 30m
  • The height of the pipeline port shall not exceed 400mm
Compressor (separate purchase)
  • An oil-free gas source with no water and no impurities is required
  • The pressure should be above 8 kg
  • The compressor can be more than 7.5 kW of power, and cooling and drying machines can be chosen according to the air compressor
  • The distance between the connecting port and the equipment shall not exceed 2 meters, the pressure shall not be less than 0.6 Mpa, and the flow rate shall not be less than 300l/Min
  • The pipeline must be safe and reliable and connected to an air dryer and filter
Net Weight 500 kg
Dimensions

 Working Size: Φ6′
Round Table: Φ6′
Square table: 160mm × 160mm

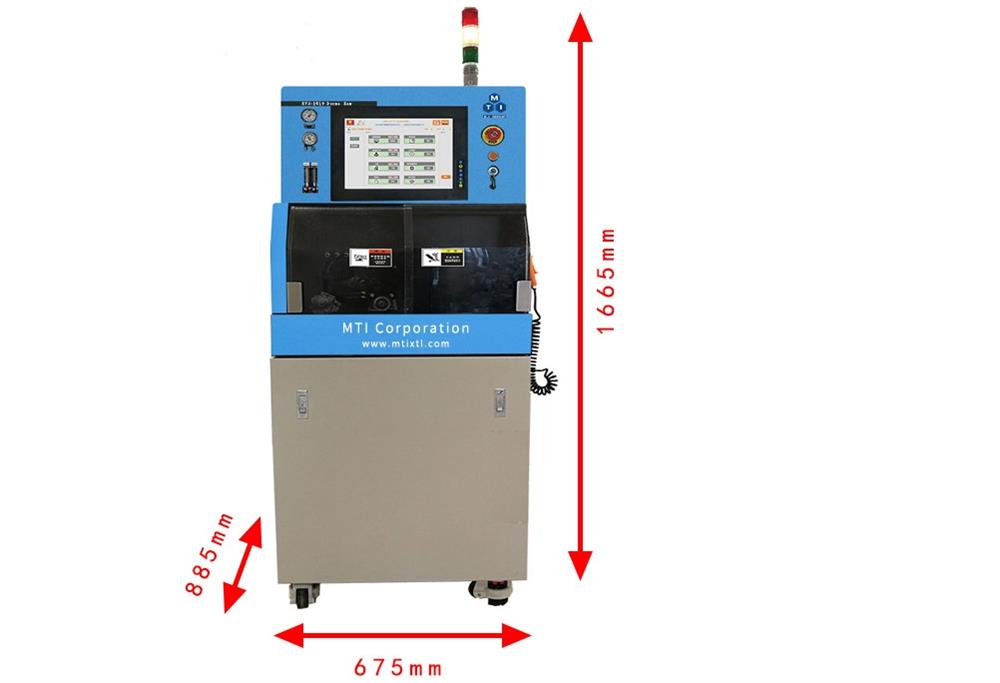

Volume (W × D × H) mm: 675 × 885 × 1665
Warranty  One year limited with lifetime support --- including all electronic and mechanical parts. Damaged parts caused by misuse: such as rusted parts from inadequate storage and broken parts by the user are not covered by the standard warranty.
Reference Video
              Demo                Blade Change Tutorial
