Description

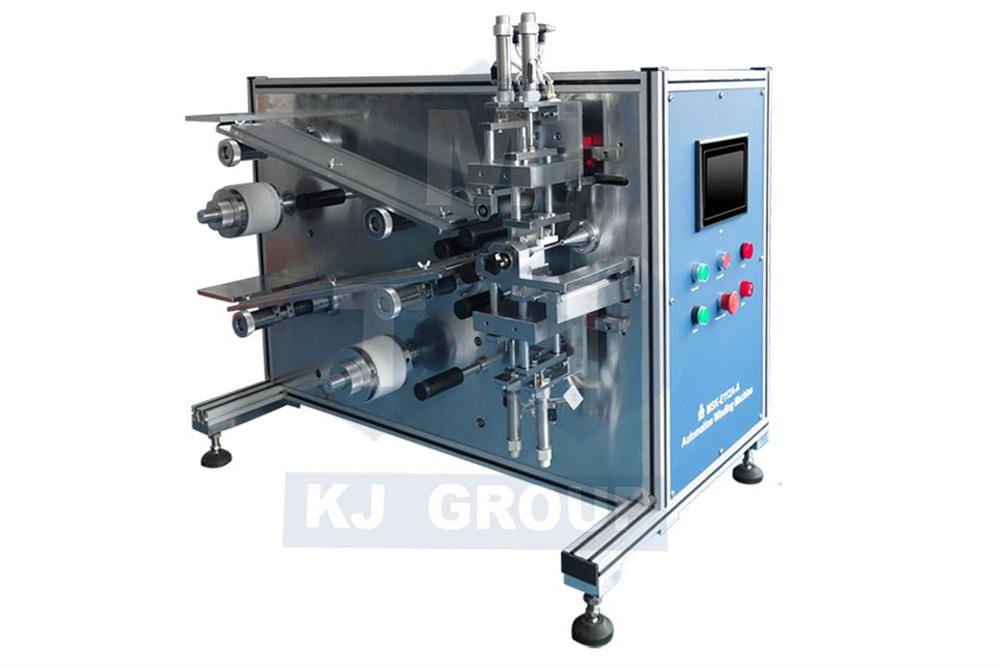

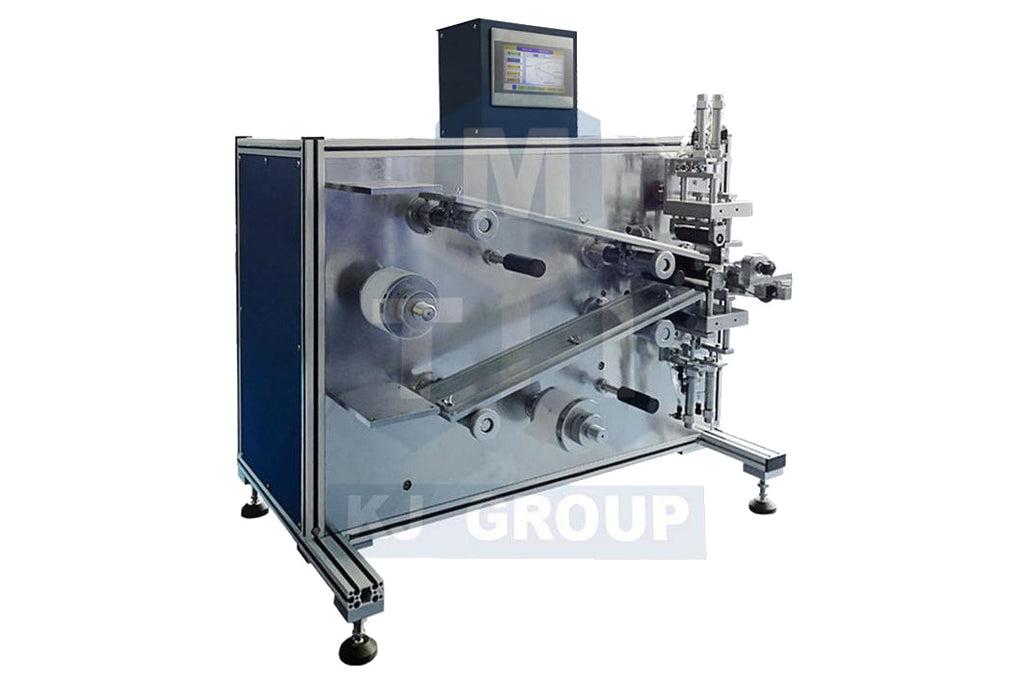

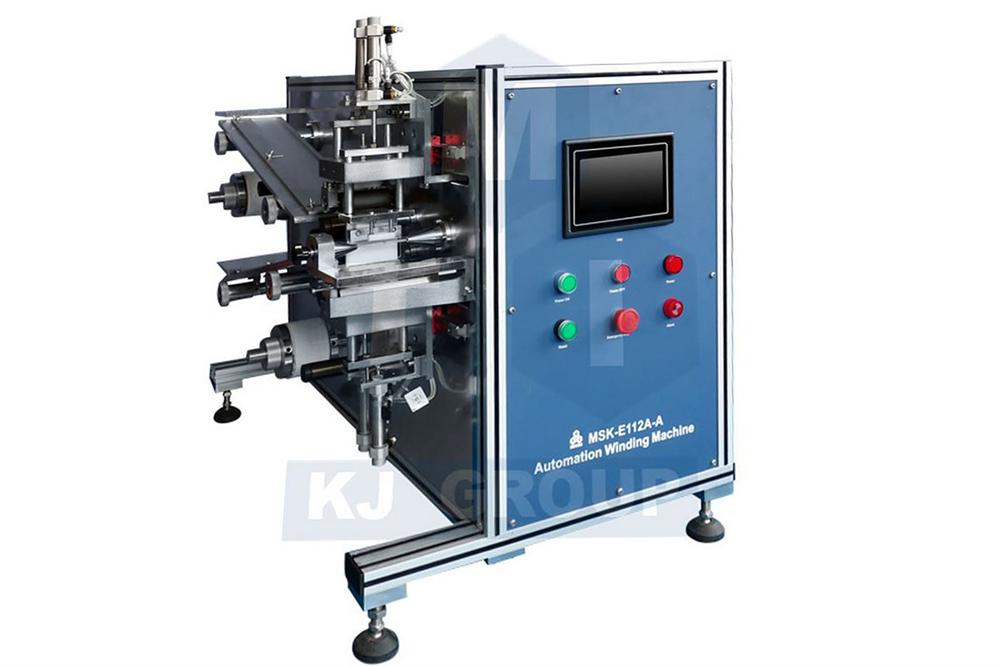

MSK-112A-ES a new semi-automatic winding machine for accurate assembly of flat pouch/prismatic cell electrode core. The separator film is sandwiched between the cathode and anode materials and then rolled up into a Prismatic pouch cell core at constant tension force. This is an ideal tool provides the reliability and precision to produce high-quality windings of electrode cores.
Outstanding Features:
- PLC Touch Screen Control
- Unreeling rotors for separator film feeding
- Vacuum assist 1200mm long feeder bed for accurate cathode/anode sheet positioning & feeding
- Passive tension control; tension is adjustable
- Automatic finish cut after the completion of jelly roll winding
- The device can be placed into a glovebox and operated in inert gas
MTI has granted the patent 201920397543.X for the Pouch Cell Winding Machine MSK-112A-ES since October 2019.
| Working Voltage | Single-phase 220VAC, 50/60Hz (to operate at 110V, we may add a 1500W transformer) |
| Max. Power Consumption | 1KW |
| Cathode / Anode Winding |
|
| Separator Winding |
|
| Winding Rod | 3.5mm O.D |
| Electrode Winding Size |
|
| Winding Accuracy | Edge Evenness: <0.5mm |
| Tension Control | <150g adjustable |
| Winding Width | Manually adjustable 25 - 70mm |
| Winding Speed | 0 - 400 RPM adjustable |
| Feeder Bed | 1200mm Long |
| Compressed Air Requirement |
0.7MPa (Please note that an air compressor is needed for the operation of this machine. Air Compressor is NOT included. (Please click here to order) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
|
| Product Dimensions | L1000mm * W700mm * H900mm |
| Weight | 150Kg |
| Warranty |
|
| Compliance |
|
| Optional |
|
