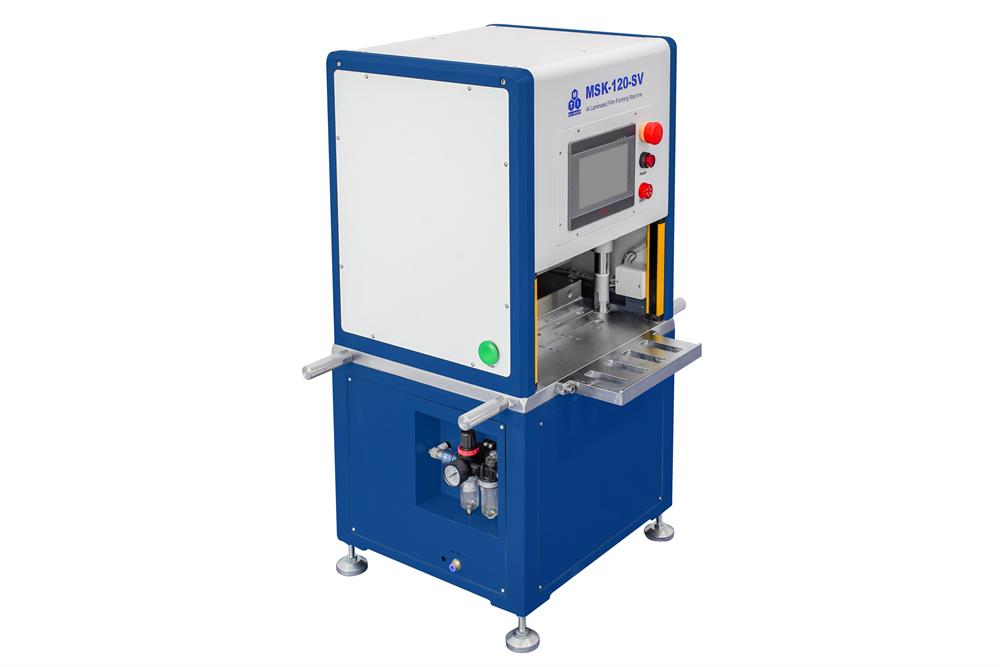

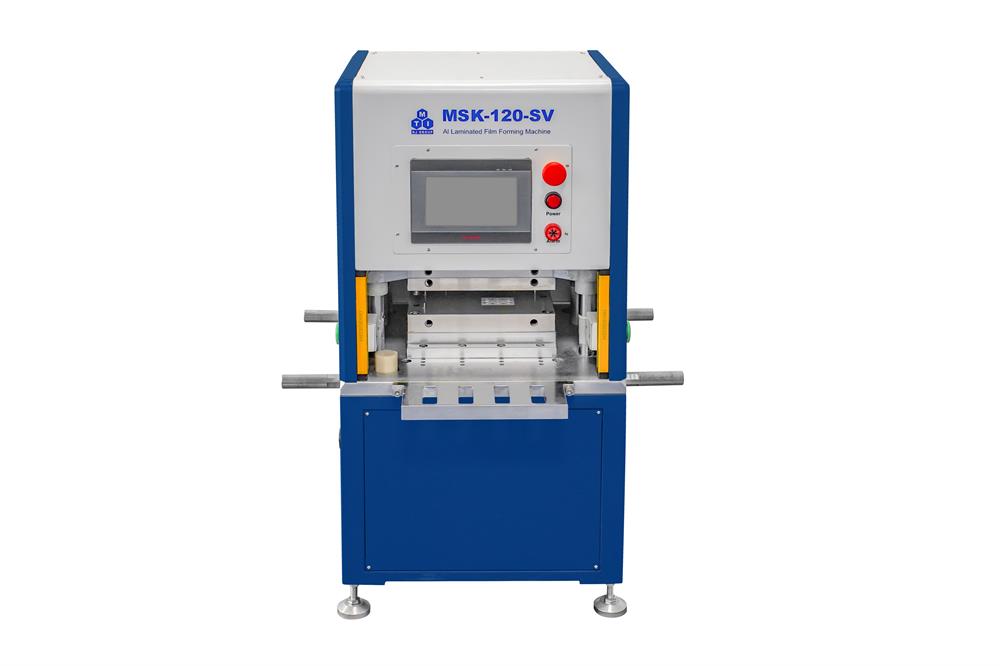

Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV
  • Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV
  • Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV
  • Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV
  • Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV
Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV

Pouch Cell Case Forming Machine with Automatic Depth Adjustment - MSK-120-SV

SKU: pouch-cell-case-forming-machine-with-automatic-depth-adjustment-msk-120-sv

Price: RFQ

Specifications

 MSK-120-SV is a gas-driven and electrical Aluminum Laminated Films pouch case-forming machine with Automatic Depth Adjustment. SPECIFICATIONS: Features Gas/Electrical driven. The pouch cell forming depth, punching pressure, and speed are programmable Case forming die set with high strength and precision. Display for case forming time PLC Control Voltage and Power AC 110V or AC 220V, 50/60 Hz (Please select from product options) Maximum power: 1,000 W Standard Die Size Standard die size: 61mm (L) x 47mm (W) which perfectly fits the electrodes cut by MSK-180 Recommended pouch cell case size: 182 mm (L) at least x 137 mm (W), one aluminum laminated case after forming could be folded Customized Die Size One aluminum laminated case after forming could be folded, the maximum dimension: 70 mm (L) x 110 mm (W) with an airbag One formed aluminum laminated case + one flat aluminum laminated case With the airbag, the maximum dimension: is 120 mm (L) x 110 mm (W) Without the airbag, the maximum dimension: is 120 mm (L) x 140 mm (W) Air Pressure Requirement 0.5 - 0.8 MPa Air or inert gas Air Compressor is not included . Please click here to order . Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator. pic1 pic2 Max. Cup Depth Maximum 6.0 mm Precision: ± 0.05 mm Max. Punching Pressure 1 metric ton Al Laminated Film The thickness of Aluminum Laminated Film : 0.10 mm - 0.20 mm is acceptable Please click the picture below to order Aluminum Laminated Film . Die Installation Warning The tolerance of precision die is very little; Misalignment will result in die damage. Following the operation manual when installing the die. MTI is not responsible for the damage caused by desperation. Small Footage Pouch Cell Machines High Throughput Electrode Cutting 3-in-1 Hot Sealer

Features

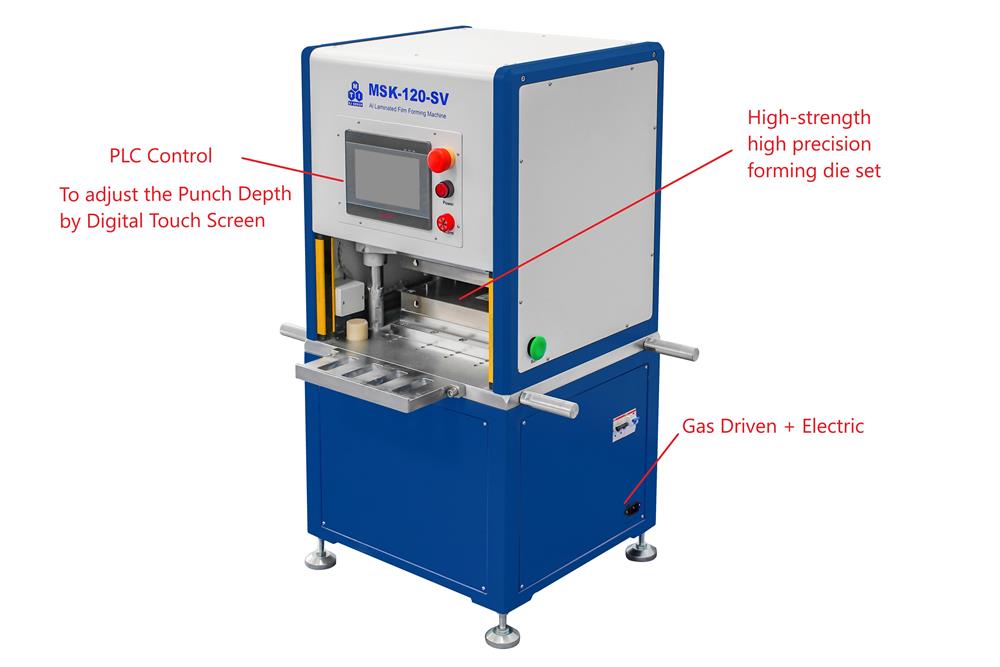

  • Gas/Electrical driven.
  • The pouch cell forming depth, punching pressure, and speed are programmable
  • Case forming die set with high strength and precision.
  • Display for case forming time
  • PLC Control
Voltage and Power
  • AC 110V or AC 220V, 50/60 Hz (Please select from product options)
  • Maximum power: 1,000 W
Standard Die Size
  • Standard die size: 61mm (L) x 47mm (W) which perfectly fits the electrodes cut by MSK-180
  • Recommended pouch cell case size: 182 mm (L) at least x 137 mm (W), one aluminum laminated case after forming could be folded
Customized Die Size
  • One aluminum laminated case after forming could be folded, the maximum dimension: 70 mm (L) x 110 mm (W) with an airbag
  • One formed aluminum laminated case + one flat aluminum laminated case
    • With the airbag, the maximum dimension: is 120 mm (L) x 110 mm (W)
    • Without the airbag, the maximum dimension: is 120 mm (L) x 140 mm (W)
Air Pressure Requirement
Max. Cup Depth
  • Maximum 6.0 mm
  • Precision: ± 0.05 mm
Max. Punching Pressure
  • 1 metric ton
Al Laminated Film
Die Installation Warning
  • The tolerance of precision die is very little; Misalignment will result in die damage.
  • Following the operation manual when installing the die.
  • MTI is not responsible for the damage caused by desperation.
