3 L Plasma Cleaner with Vacuum Pump & Digital Controller, 6"Dx6.5"L Quartz Chamber - PCE6
  • 3 L Plasma Cleaner with Vacuum Pump & Digital Controller, 6"Dx6.5"L Quartz Chamber - PCE6
  • 3 L Plasma Cleaner with Vacuum Pump & Digital Controller, 6"Dx6.5"L Quartz Chamber - PCE6
  • 3 L Plasma Cleaner with Vacuum Pump & Digital Controller, 6"Dx6.5"L Quartz Chamber - PCE6
3 L Plasma Cleaner with Vacuum Pump & Digital Controller, 6"Dx6.5"L Quartz Chamber - PCE6

3 L Plasma Cleaner with Vacuum Pump & Digital Controller, 6"Dx6.5"L Quartz Chamber - PCE6

SKU: pce6

Price: RFQ

Specifications

 EQ-PCE-6 is a medium plasma cleaner with 6" Dia x 6.5"Length quartz chamber.  It is designed to clean and remove nano-scale organic contamination on the substrate or wafer up to 4" using air, oxygen, or argon plasma. The rate of organic removal is about 20 nm/min Maximum at high RF power. It is an excellent tool to pre-clean single crystal substrate before epitaxial film deposition to achieve better quality.  If you don't have experience with plasma surface cleaning, please refer to the articles as follows: McIntire, Theresa M., S. Rachelle Smalley, John T. Newberg, A. Scott Lea, John C. Hemminger, Barbara J. Finlayson-Pitts. "Substrate Changes Associated with the Chemistry of Self-Assembled Monolayers on Silicon." Langmuir (2006) 22(13): 5617-5624. Sumner, Ann Louise, Erik J. Menke, Yael Dubowski, John T. Newberg, Reginald M. Penner, John C. Hemminger, Lisa M. Wingen, Theo Brauers, Barbara J. Finlayson-Pitts. "The Nature of Water on Surfaces of Laboratory Systems and Implications for Heterogeneous Chemistry in the Troposphere." Phys. Chem. Chem. Phys. (2004) 6: 604-613. Mennicke, Ulrike, Tim Salditt. "Preparation of Solid-Supported Lipid Bilayers by Spin-Coating." Langmuir (2002) 18: 8172-8177. SPECIFICATIONS Input Power AC 220V, 50/60 Hz, (You may order a transformer to operate at 110V) RF Power:    30 W Max. Vacuum Pump:   < 500W Total Power:    < 600W RF Power RF power (High voltage & high-frequency current applied on the coil) is adjustable at three levels: Low Setting 7.2W; Medium Setting 10.2W; High Setting 30W RF frequency:   13,56 MHz Control Panel Control Function: Clean time, RF Power, Vacuum Pump. Plasma Chamber 6" diameter x 6.5" length quartz chamber 3 Liter Capacity Hinged type door with viewing window for easy sample loading and observing Vacuum Pump One Double-Stage Rotary Vane Vacuum Pump (156 L/m ) with Exhaust filter and vacuum pipe are included for the equipment Both 110V or 220V are available, please specify when purchase. Inert Gas Different gases can be chosen for plasma cleaning such as N2, Ar, air, and mixed gas. No flammable gas should be used for the plasma cleaner Optional Combinations of PCE-6 plasma cleaner with Two Channel Gas Mixer will be a solution for introducing up to two process gases. Order plasma cleaner with the two-channel gas mixer from product options or Click the picture left for Two-Channel Gas Mixer. Dimensions 400mm L ×300mm W ×300mm H 16" x 12" x 12" (inch) Net Weight 30 Lbs Shipping Weight & Dimensions 140 lbs 40"x30"x23" Warranty One year limited warranty with lifetime support ( no warranty for Pyrex glass chamber ) Application Note Positive Pressure may damage Plasma Quartz Chamber. Operation Manual

Input Power
RF Power
  • RF power (High voltage & high-frequency current applied on the coil) is adjustable at three levels: Low Setting 7.2W; Medium Setting 10.2W; High Setting 30W
  • RF frequency:   13,56 MHz
Control Panel
  • Control Function: Clean time, RF Power, Vacuum Pump.
Plasma Chamber
  • 6" diameter x 6.5" length quartz chamber
  • 3 Liter Capacity

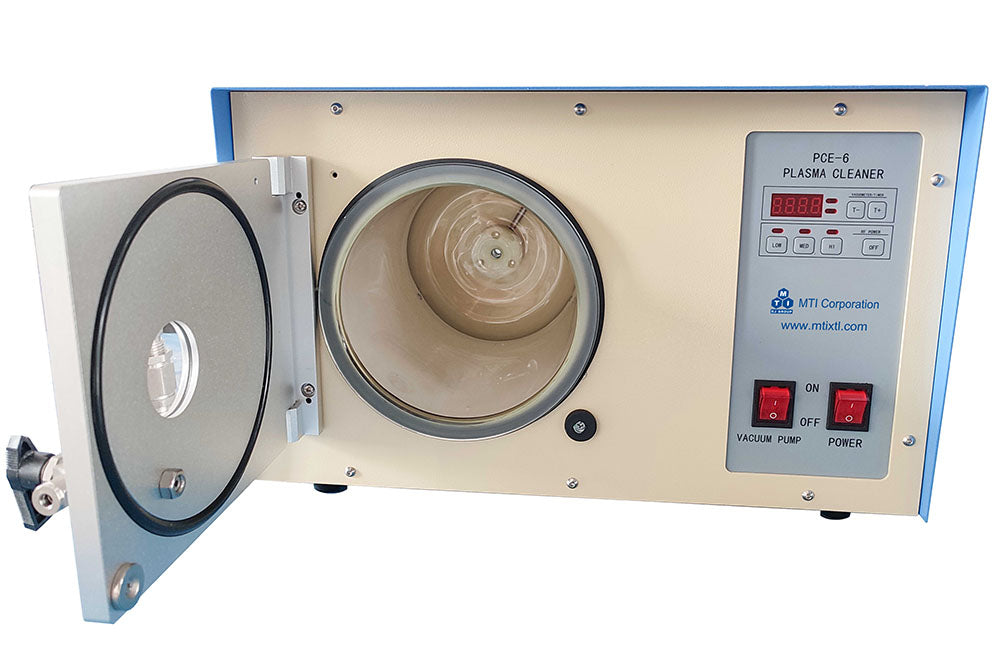

  • Hinged type door with viewing window for easy sample loading and observing

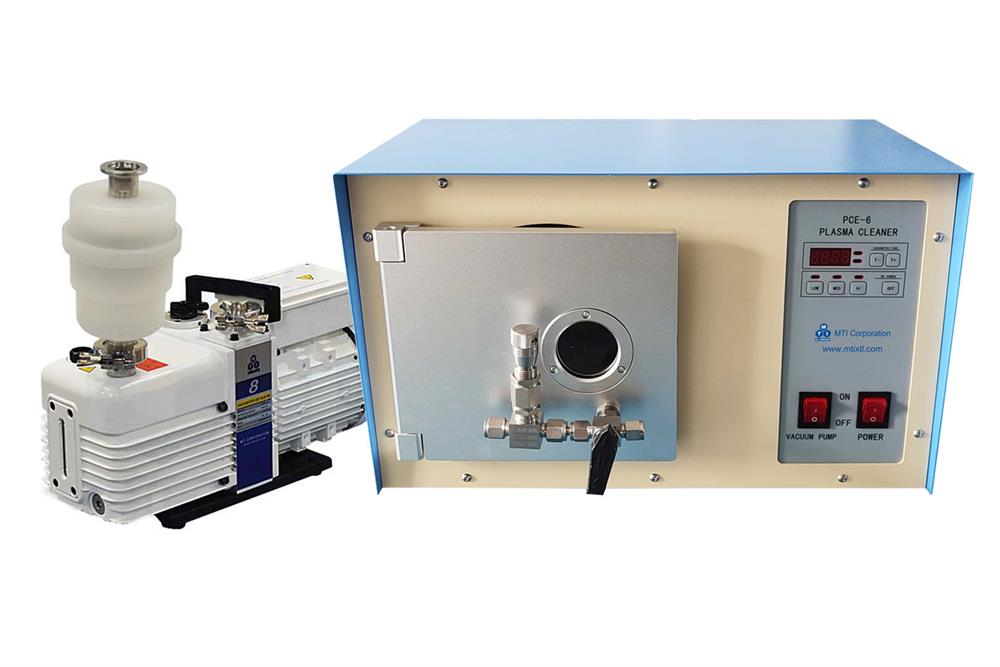

Vacuum Pump
Inert Gas
  • Different gases can be chosen for plasma cleaning such as N2, Ar, air, and mixed gas.
  • No flammable gas should be used for the plasma cleaner
Optional

  • Combinations of PCE-6 plasma cleaner with Two Channel Gas Mixer will be a solution for introducing up to two process gases. Order plasma cleaner with the two-channel gas mixer from product options or Click the picture left for Two-Channel Gas Mixer.

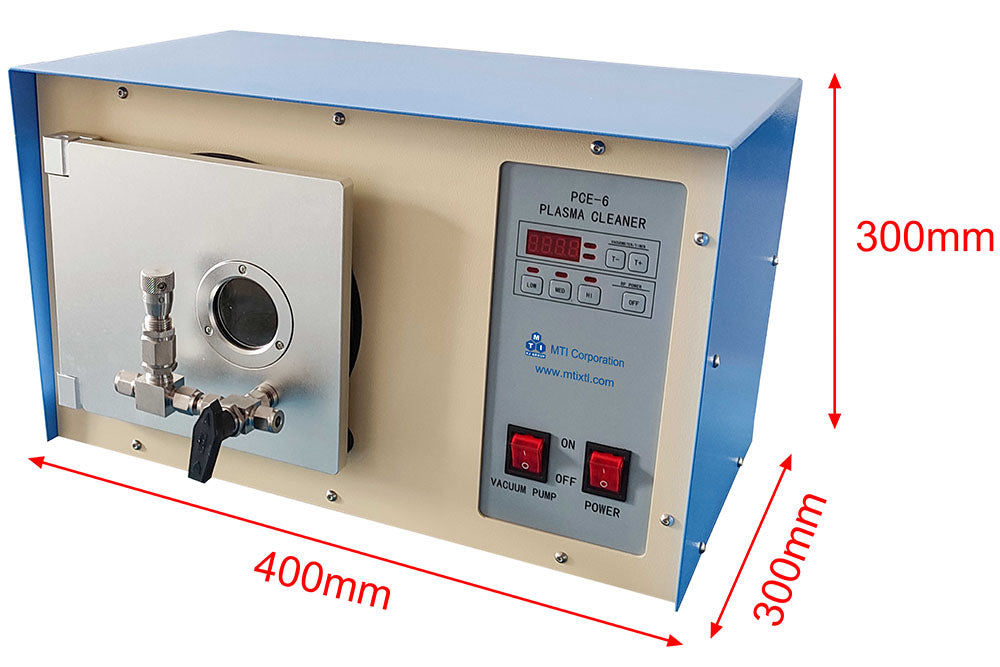

Dimensions
    • 400mm L ×300mm W ×300mm H
    • 16" x 12" x 12" (inch)
    Net Weight       30 Lbs
    Shipping Weight & Dimensions
    • 140 lbs
    • 40"x30"x23"
    Warranty       One year limited warranty with lifetime support ( no warranty for Pyrex glass chamber )
    Application Note       Positive Pressure may damage Plasma Quartz Chamber.
    Operation Manual
