Specifications

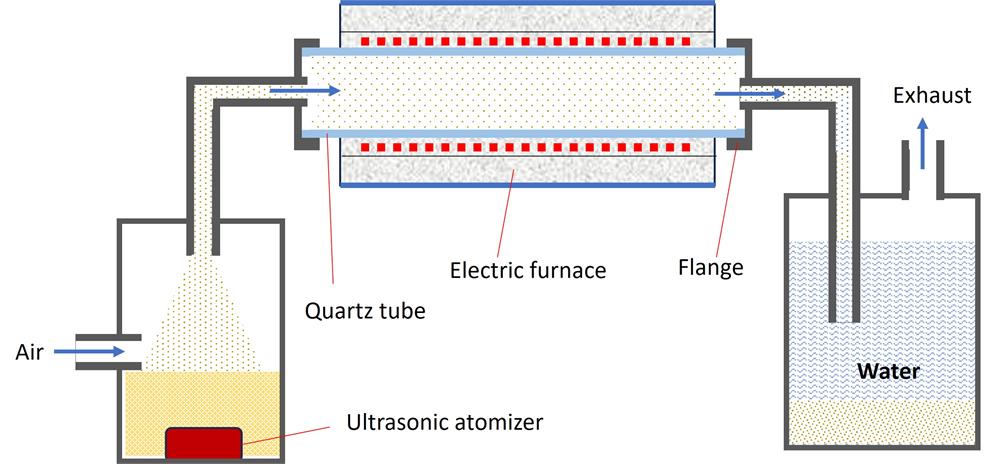

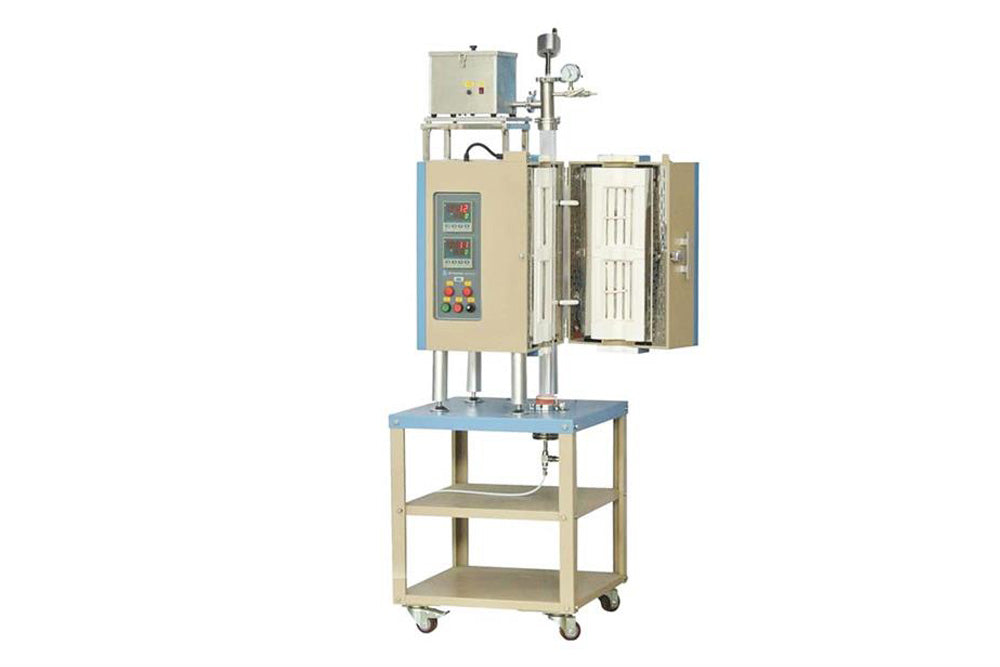

OTF-1200X-II-VT-USPA is Two Heating Zone Split Vertical Tube Furnace with a vacuum-sealed 100mm diameter quartz tube. It can introduce gas flow or liquid/ water atomization to the heating furnace, also be used for PVD, CSS or CVD coating. Two precision temperature controllers provide 30 segments heating and cooling program with +/- 1°C accuracy independently. The vertical tube furnace is installed in a heavy-duty mobile cart for easy moving. Related Article : Large scale production of spherical WO3 powder with ultrasonic spray pyrolysis assisted by sol-gel method for hydrogen detection
|
Furnace Structure
|
|
| Power for Furnace |
6KW (total) / each zone: 3KW |
| Voltage |
AC 208-240V Single Phase, 50/60 Hz |
| Max. Temperature |
1200°C (<1 hr) each zone |
| Continuous Temperature |
1100°C for each zone |
| Max. Heating Rate |
<= 20°C/min. |
| Temperature Accuracy |
+/- 1°C |
Tube Size and Materials |
- One 1000mm length quartz tube is included
- OD: 100 mm, ID. 95 mm
- Foam ceramic blocks with alumina coating are included, which is hanged on top of flange to protect O-ring damaged by heat radiation
- Upgrade note:( Processing tube can be replaced by mullite tube from 60 mm OD to 100 mm OD at extra cost, then furnace can be used up to 1250°C )
|
Heating Zone Length |
- 200mm (bottom)
- 200mm (top)
- 400mm (total)
|
| Constant Temperature Zone |
- Constant temperature zone: 300 mm (+/-1°C) if two heating zones are at the same temperature
|
Temperature Controller
|
- MET certified 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
- Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection.
- Over-temperature protection and alarm allow for operation without attendant(s).
- RS485 Communication Port.
|
Vacuum Sealing Flange
|
|
Vacuum Level |
- 10E-2 Torr by mechanical vacuum pump
- 10E-5 Torr by molecular pump
- Leak rate < 5 mTorr / min.
|
| Heating Element |
1300°C Fe-Cr-Al Alloy doped by Mo |
| Laptop, Software & WiFi Control (Optional) |
- New laptop with Labview Based Temperature Control System (EQ-MTS01) enables users to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
- A wireless remote control provides up to 300 meters of operating range.
-

|
| Compliance |
- CE Certified
- The furnace is ready to pass NRTL or CSA certification at extra cost
|
| Application Note |
|
| Warning |
- The tube furnaces with quartz tube are designed for using under vacuum and low pressure <0.2 bars / 3 psi / 0.02 MPa. Vacuum pressures may only be safely used up to 1000°C. The flow rate for gasses should be limited to < 200 SCCM (or 200ml/min) for reducing thermal shocks to the tube.
- Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator
|
