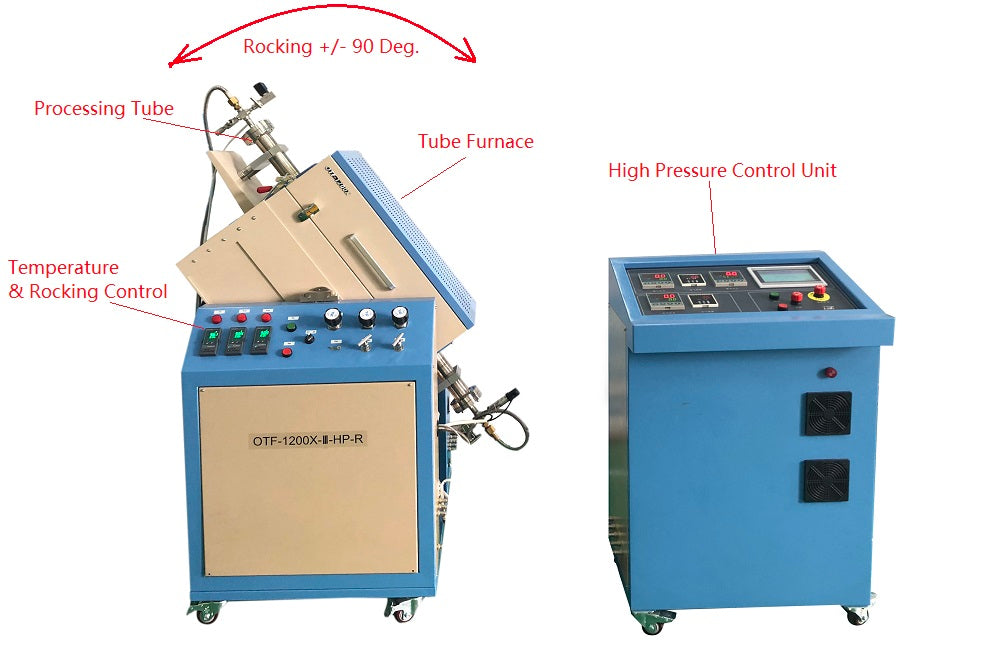

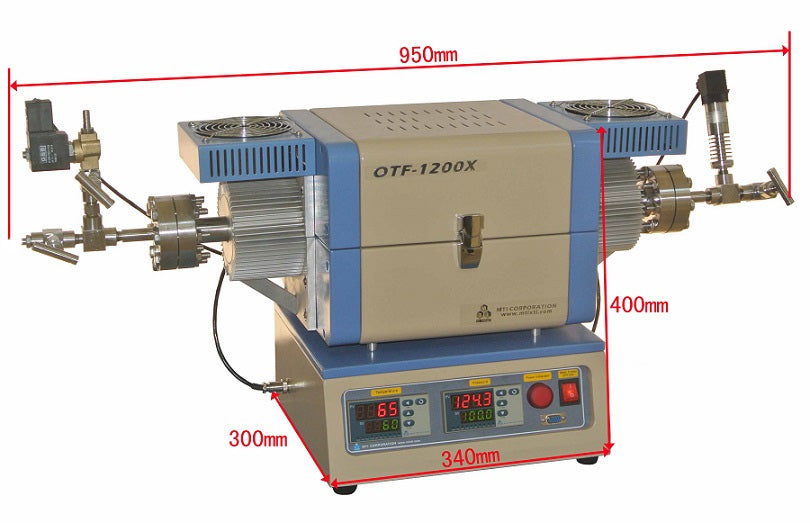

1100C Hi-Pressure Rocking Tube Furnace with 2" Super-alloy Processing Tube - OTF-1200X-HPR-III

Furnace Structure

• Split-able tube furnace with three heating zone with the independent temperature controllers
• Each zone length of 200 mm and 600 mm in total length
• Ni-Based Super-alloy with Max. working temperature up to 1100oC at high pressure.
• The furnace can be swung from -30º to + 90º an electric motor at the frequency range of 0.1 - 1 time/min



Power

• AC 208 - 240V 50/60Hz
• 4.2 KW (32 A breaker required)

Working Temperature

• Max. Temperature: 1100 °C (< 1 hr)
• Continuous working temperature: 1000°C
• Max. Heating Rate: 10°C /min

Heating Zones

• Three heating zones: 150 mm + 150 mm + 150 mm
• Total heating zone length: 450 mm
• Constant temp. zone: 280 mm ±1°C

• Three precision digital temperature controllers (FA-YD518P-AG ) are included
• Proportional–integral–derivative control (PID control) and auto-tune function
• 30 segments programmed with ramping, cooling and dwelling steps
• Built-in over-temperature alarm and thermocouple failure alarm
• +/- 1 ºC temperature control accuracy
• THE Default RS485 PC port for PC operation and operation software is included.
• You may upgrade the temperature controller to the Eurotherm 3000  with +/- 0.1 ºC accuracy.

• Ni-based superalloy GH747 (Click to download the alloy datasheet)
• Tube dimension: OD 60 x ID 52 x Length 1000 , mm
• Max. working temperature: 1100ºC
• 8 pcs fibrous alumina thermal blocks are included ( 4 pcs each side) with SS310 small tube to fix crucible in the center without moving.
• Please click the picture below to see how to fix a crucible

• Inert gas or oxygen
• No hydrogen or any flammable gas is allowed

• 40 bar Max. at 800°C
• 25 bar Max. at 900°C
• 12 bar Max. at 1000°C
• 8 bar Max. at 1100°C

• There are two fixing methods for tube and flanges
• High-pressure fixing method ( Pic. 1)
• There are two CF flanges included, the upstream side with 1/4" NPT venting port
• 2 pecs of copper O-rings are included. Spare copper O-ring as consumable parts available.
• One 1/4" metal hose is included for connecting tube and cylinder
• Constant pressure fixing method (Pic. 2)
• A CF to KF flange adaptor is used on left side of the tube, and a cooling ring is installed externally. A CF type flange is used on the right side
• Remove left side KF flange in order to get the sample out

• A core funnel filter is installed on the gas outlet side of the tube
• A cold trap is also installed outside of the core funnel filter

• Gear DC motor, 150W drives the furnace in the center
• LCD digital display with adjustable speed from 10 - 70 RPM
• Rocking angle: -30º to + 90º
• Rocking frequency: 0.1 - 1 time per minute adjustable
• Rocking Timer: 1-1199 min or continuous running adjustable.

• The control panel is separated from the furnace for safe operation
• Temperature, pressure, and gas flow rate are controlled via the touch screen panel
