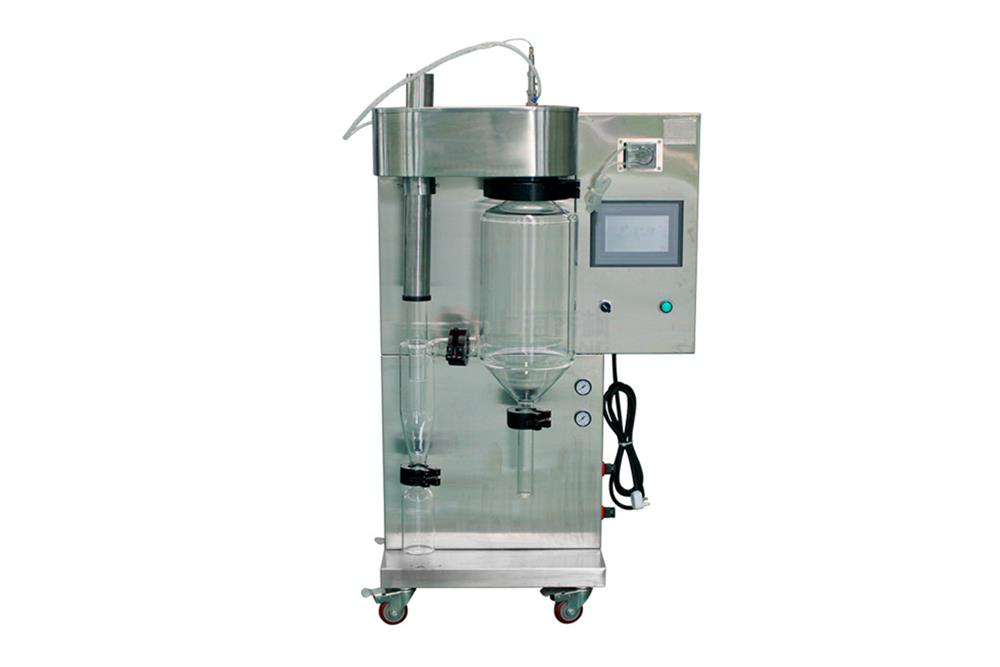

Lab Spray Dryer up to 300C with Glass Chambers - MSK-USP6000
  • Lab Spray Dryer up to 300C with Glass Chambers - MSK-USP6000
  • Lab Spray Dryer up to 300C with Glass Chambers - MSK-USP6000
  • Lab Spray Dryer up to 300C with Glass Chambers - MSK-USP6000
Lab Spray Dryer up to 300C with Glass Chambers - MSK-USP6000

Lab Spray Dryer up to 300C with Glass Chambers - MSK-USP6000

SKU: msk-usp6000

Price: RFQ

Specifications

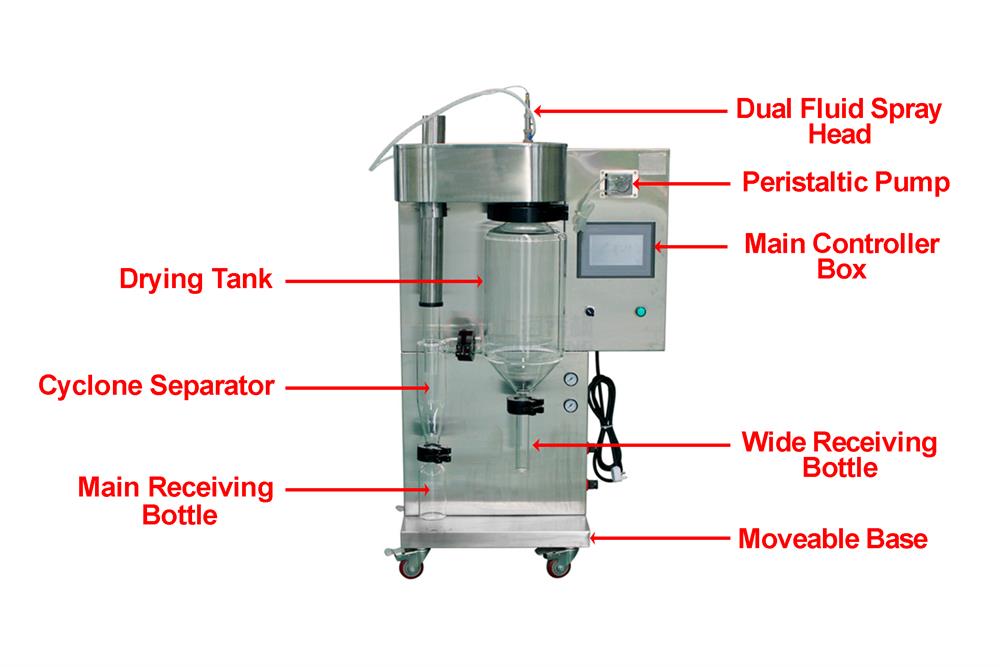

 MSK-USP-6000 is a lab-scale spray dryer that generates fine particles by evaporating the atomized liquid spray and that has been collected through the cyclone separating process. It is suitable for synthesizing heat-sensitive materials for a broad range of applications such as Pharmaceuticals, Nanotechnology, Catalysts, Fuel cells, and Batteries. SPECIFICATIONS System Features A dual-channel spray nozzle with an anti-clogging function prevents the nozzle from being clogged during the spray process Transparent receiving tank, drying chamber, and cyclone separator for easy process monitoring Borosilicate glass chamber resists strong acid/alkali and high-temperature The use of quick clamps allows easy component removal and cleaning The included air compressor is quiet (50dB) and clean (oil-mist-free) Digital control panel Built-in PID temperature controller for accurate Inlet/outlet air temperature control The user-friendly control panel enables easy adjustment of temperature, airflow & pressure, pumping speed, and anti-clogging interval Solvent feeding via a peristaltic pump, the rate is adjustable Input Voltage & Power 208~240VAC, 4000W Spray Nozzle (Atomizer) Compress gas-assist spray nozzle disperses spray liquid into fine droplets which are subsequently dried in the chamber The dual-channel design allows the mixing and spraying of two kinds of solutions at the same time Anti-clogging nozzle, auto anti-clogging interval adjustable Co-current downward spray Atomized particle sizes range from 10 - 50 um Spray Nozzle Size is 0.7mm Dia. Recommended slurry viscosity less than 500 cP. Cyclon Material Collector Material collection efficiency can be as high as 80%. Collect Capacity: 500 mL Temperature Control Inlet air: 30C - 300C Outlet air: 30C - 140C Max. working Temperature: 250C PID temperature controller with ±1 accuracy Drying Time 1~1.5S Drying Air One oil-less air compressor is included 35m^3 /h Pressure: 5~8 bar Peristaltic Pump The solvent is fed by the peristaltic pump Feeding rate adjustable: 30-2200ml/h Evaporation Capability Max. 1500ml/h Certification CE Certified NRTL or CSA certification is available upon request

System Features
  • A dual-channel spray nozzle with an anti-clogging function prevents the nozzle from being clogged during the spray process
  • Transparent receiving tank, drying chamber, and cyclone separator for easy process monitoring
  • Borosilicate glass chamber resists strong acid/alkali and high-temperature
  • The use of quick clamps allows easy component removal and cleaning
  • The included air compressor is quiet (50dB) and clean (oil-mist-free)
  • Digital control panel
  • Built-in PID temperature controller for accurate Inlet/outlet air temperature control
  • The user-friendly control panel enables easy adjustment of temperature, airflow & pressure, pumping speed, and anti-clogging interval
  • Solvent feeding via a peristaltic pump, the rate is adjustable
Input Voltage & Power 208~240VAC, 4000W
Spray Nozzle (Atomizer)
  • Compress gas-assist spray nozzle disperses spray liquid into fine droplets which are subsequently dried in the chamber
    • The dual-channel design allows the mixing and spraying of two kinds of solutions at the same time
  • Anti-clogging nozzle, auto anti-clogging interval adjustable
  • Co-current downward spray
  • Atomized particle sizes range from 10 - 50 um
  • Spray Nozzle Size is 0.7mm Dia.
  • Recommended slurry viscosity less than 500 cP.
Cyclon Material Collector
  • Material collection efficiency can be as high as 80%.
  • Collect Capacity: 500 mL
Temperature Control
  • Inlet air: 30C - 300C
  • Outlet air: 30C - 140C
  • Max. working Temperature: 250C
  • PID temperature controller with ±1 accuracy
Drying Time 1~1.5S
Drying Air
  • One oil-less air compressor is included
  • 35m^3 /h
  • Pressure: 5~8 bar
Peristaltic Pump
  • The solvent is fed by the peristaltic pump
  • Feeding rate adjustable: 30-2200ml/h
Evaporation Capability
  • Max. 1500ml/h
Certification
  • CE Certified
  • NRTL or CSA certification is available upon request
