1.7 MHz Ultrasonic Atomizing Generator with Digital Syringe Pump and Heating Function - MSKUSP17SP
  • 1.7 MHz Ultrasonic Atomizing Generator with Digital Syringe Pump and Heating Function - MSKUSP17SP
  • 1.7 MHz Ultrasonic Atomizing Generator with Digital Syringe Pump and Heating Function - MSKUSP17SP
1.7 MHz Ultrasonic Atomizing Generator with Digital Syringe Pump and Heating Function - MSKUSP17SP

1.7 MHz Ultrasonic Atomizing Generator with Digital Syringe Pump and Heating Function - MSKUSP17SP

SKU: msk-usp-sp-ld

Price: RFQ

Specifications

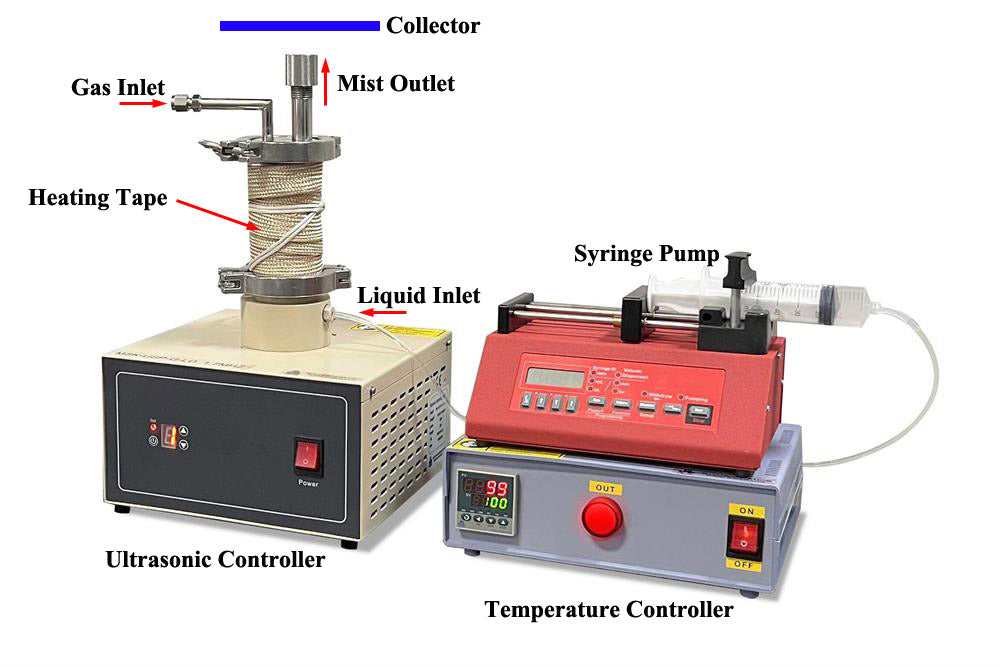

 MSK-USP-SP-LD is a 1.7 MHz Ultrasonic Particle Generator with a digitally controlled infusion syringe pump and a temperature controller. It can be used in line with MTI Tubing Furnaces to form a versatile synthetic system for nanostructured oxide materials. SPECIFICATIONS Voltage 110 - 240VAC for universal use 24VDC driving ultrasonic generator Work 30W System Features A 316 Stainless Steel liquid container is equipped with a fluoropolymer sealing ring and a heating tape 1.7 MHz ultrasonic generator 3 levels of power output ( low, middle, high) Droplet size: < 10 microns, which is dependent on the viscosity of solution, ultrasonic frequency, gas speed. Continuous mode and timed mode can be set. For timed mode, time can be adjusted from 30 minutes to 180 minutes The quick clamps allow easy removal of components for cleaning or adapting the device with simple connections to the gas supply A liquid injection pump is included and equipped to inject automatically which comes with a 60 ml plastic syringe. Digital Syringe Pump Holds small or big syringes from 10 uL to 60 mL Pumps continuously until you stop the pump The infusion rate can be changed while pumping Remembers previous settings on power-up Power failure mode allows the pump to continue pumping after a reset Displays total volume dispensed in mL or µL units The pumping rate range:6.1um/min - 120um/min The pumping rates are various from 3.9uL/min to 76.5mL/min upon the sizes of syringe Precise reproducible flow rates Selectable infusion rate units: mL/hr, µL/hr, mL/min, µL/min Infuses Only , does not withdraw, volume target, or have a computer interface An infusion Syringe Pump with an optional Heatable Glass Syringe is available at an extra cost Temperature Controller The controller uses PID via SSR power control Single-point setting controller Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. A K-type thermocouple with 3mm OD x 4" L is included in the standard package. Heating Tape Length: 24" Width: 1/2" Input Voltage: 120V AC Max Power: 105W Max. Working Temperature: 250°C Electric insulation Fiberglass Power Plug: included Application Notes An MFC can be connected to the upstream to control the carrier gas flow rate. ( Pic. 1) The ultrasonic particle generator can be used in line with MTI Tubing Furnaces and Electrostatic Precipitators to form a versatile synthetic system for nanostructured oxide materials. Please click picture 2 to view the details Pic. 1 Pic. 2

Voltage
  • 110 - 240VAC for universal use
  • 24VDC driving ultrasonic generator
Work
  • 30W
System Features
  • A 316 Stainless Steel liquid container is equipped with a fluoropolymer sealing ring and a heating tape
  • 1.7 MHz ultrasonic generator
  • 3 levels of power output ( low, middle, high)
  • Droplet size: < 10 microns, which is dependent on the viscosity of solution, ultrasonic frequency, gas speed.
  • Continuous mode and timed mode can be set. For timed mode, time can be adjusted from 30 minutes to 180 minutes
  • The quick clamps allow easy removal of components for cleaning or adapting the device with simple connections to the gas supply
  • A liquid injection pump is included and equipped to inject automatically which comes with a 60 ml plastic syringe.
Digital Syringe Pump
  • Holds small or big syringes from 10 uL to 60 mL
  • Pumps continuously until you stop the pump
  • The infusion rate can be changed while pumping
  • Remembers previous settings on power-up
  • Power failure mode allows the pump to continue pumping after a reset
  • Displays total volume dispensed in mL or µL units
  • The pumping rate range:6.1um/min - 120um/min
  • The pumping rates are various from 3.9uL/min to 76.5mL/min upon the sizes of syringe
  • Precise reproducible flow rates
  • Selectable infusion rate units: mL/hr, µL/hr, mL/min, µL/min
  • Infuses Only, does not withdraw, volume target, or have a computer interface
  • An infusion Syringe Pump with an optional Heatable Glass Syringe is available at an extra cost

Temperature Controller
  • The controller uses PID via SSR power control
  • Single-point setting controller
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
  •  A K-type thermocouple with 3mm OD x 4" L is included in the standard package.

Heating Tape
  • Length: 24"
  • Width: 1/2"
  • Input Voltage: 120V AC
  • Max Power: 105W
  • Max. Working Temperature: 250°C
  • Electric insulation Fiberglass
  • Power Plug: included
Application Notes
  • An MFC can be connected to the upstream to control the carrier gas flow rate. ( Pic. 1)
  • The ultrasonic particle generator can be used in line with MTI Tubing Furnaces and Electrostatic Precipitators to form a versatile synthetic system for nanostructured oxide materials. Please click picture 2 to view the details
Pic. 1  Pic. 2
