Description

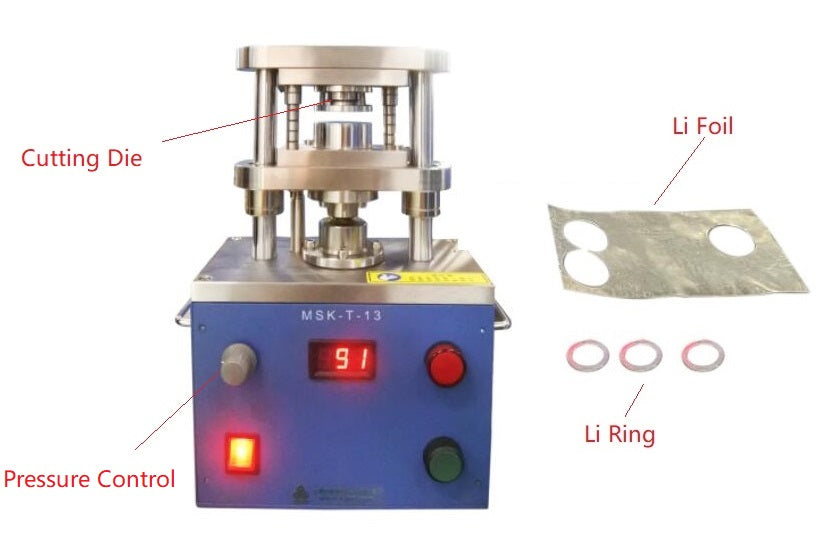

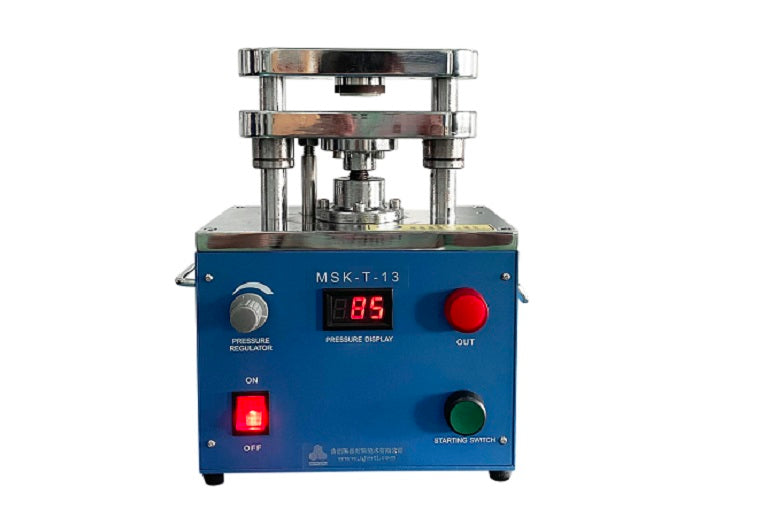

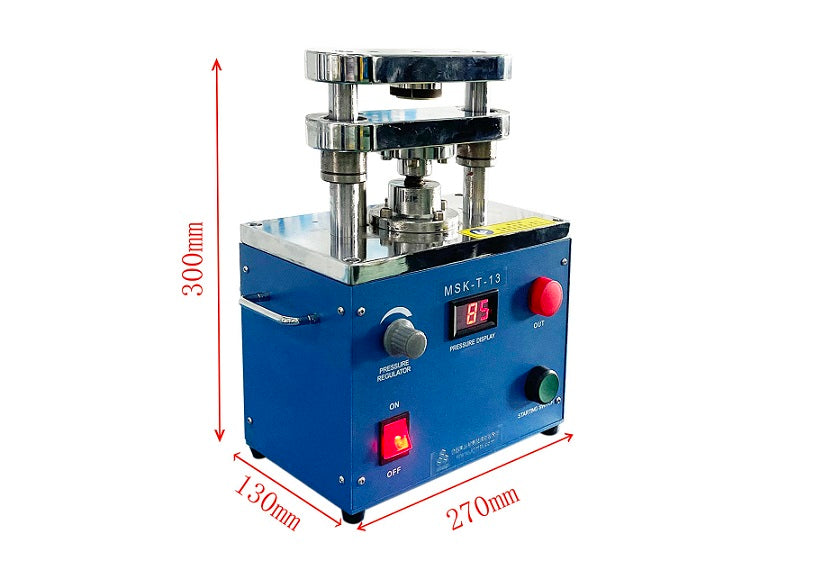

MSK-T-13 is a benchtop motorized ring cutter to punch Ø26×Ø19 mm lithium rings. The as-cut lithium rings is compatible with a three-electrode split test cell as a reference electrode. Thanks to its modular design, it can also punch a Ø15×Ø8 mm ring of cathode materials for a 3-electrode split coin cell via an optional die.
MSK-T-13 is ready to use in an Argon-filled glovebox.
Power
|
- 110 - 240V AC (50/60Hz) NRTL certified power adapter for worldwide use
- 24V DC motor with reducing gear, 15W. The operation is very safe without further certification
|
Pressure
|
- The cutting pressure is adjustable with a digital display
- Pressure 0 - 1400 kg
- Note: Display unit is %, not force value
- For cutting Li, copper, and Al only
|
|
Cutting Die
|
- One ring type of cutting die is included for cutting ring with OD 26 mm x ID 19 mm
- The ring is fitted into MTI Three-Electrode Split Test Cell.

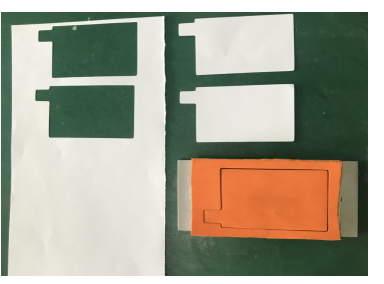

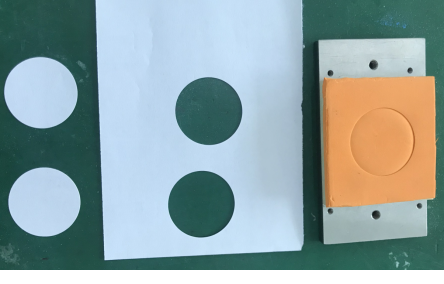

- The customized die is available for cutting single or multi-discs and rectangular sheet at the extra cost
-
-
- Multi-disc cutting within 80x60 mm
-
- Multi-disc cutting within 80x60 mm

|
| Compliance |
- CE certified
- NRTL or CSA certification is available at the extra cost
|
