Automated Pneumatic Shock Tester with Max. Load of 10 Kg (UN 38.3.4.4 ) - MSK-SS-10

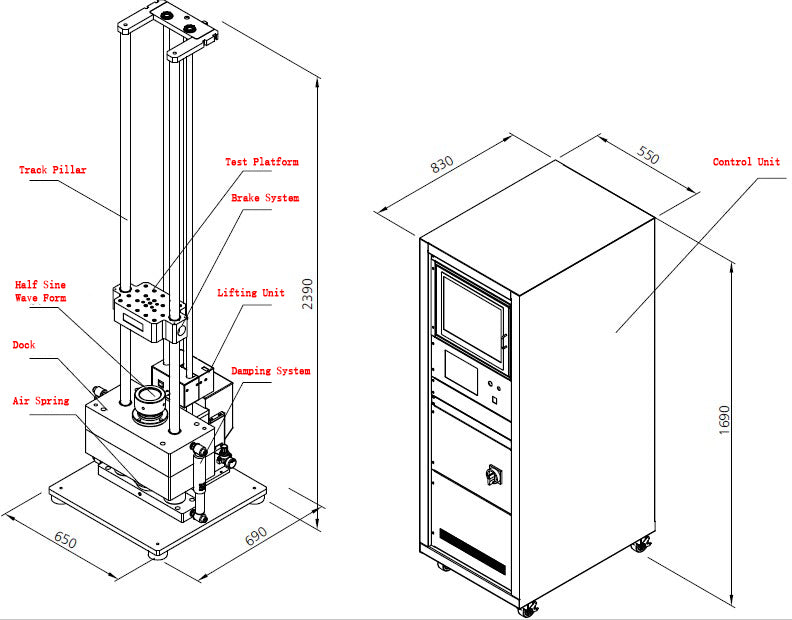

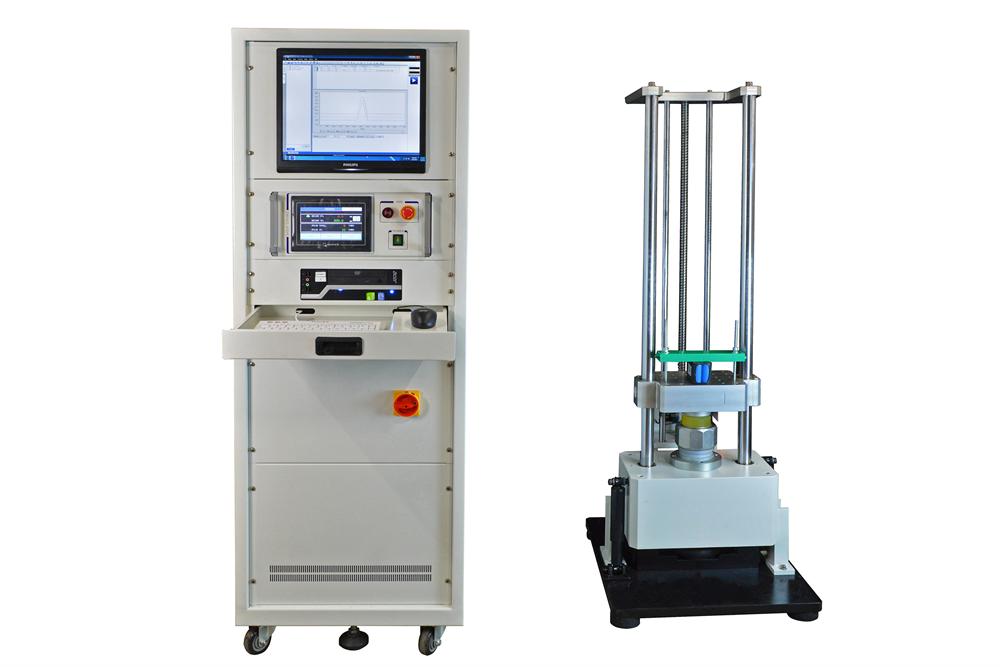

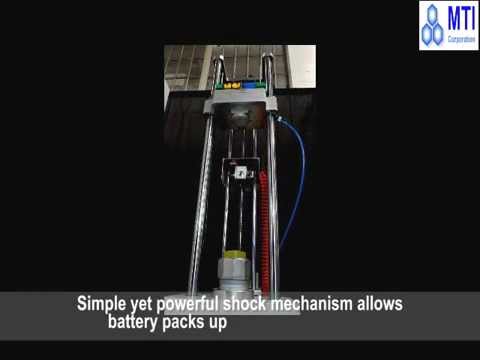

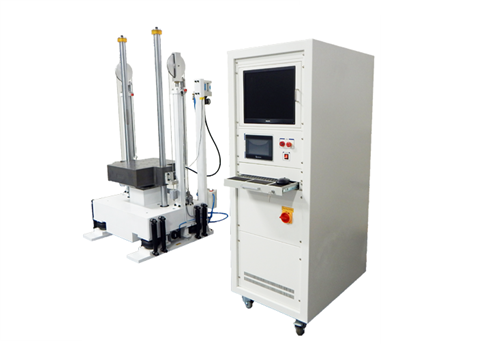

• This testing system consists of three units: shock frame with sample stage, shock propelling hydraulics, and shock control unit with PC & software.

  • Sample Stage Size: 250mm x 200mm (9.84" x 7.87 ")
  • Shock Height Range: 50-1000 mm
  • Max. Sample Load: 10 kg (22 lbs) or smaller

  • Shock Pulse Time: 0.5 -30 ms (half-sine wave); programmable
  • Max. Acceleration: 15 - 15000 m/s^2 (half-sine wave);
  • Shock Direction: Perpendicular
  • Brake Device: Built-in brakes to protect from second time shock.

Control Unit

• Operation software compatible with MS Windows is included & installed
• PC and Monitor are integrated into the control unit to maximize space savings
• Wave Type: Half-Sine Wave
• Program Settings:
  • Pulse Duration: 0.5 - ­11 ms
  • Acceleration: 15 - 15000 m/s^2


Compress Air

• >7 /c compress air is required for the operation of this equipment, however, we are not including an air compressor in the standard package, please order one from your local hardware store.
• A quick connector with a short 8 mm dia tube is included, you need using a 12 mm tube insert to the tube we supplied ( click Pic below to a connector )
•
• Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
   pic1 pic2


Application Notes

• Please Click Here for Details on UN38.3 Li-Ion Battery Testing Requirements
• IEC 62113 Safety Test Standard Details
• Other equipment for testing of IEC 62113 or UN38.3 Standards can be found at MTI online web.
• 50Kg heavy duty shock tester is available upon request
• The system is capable of achieving a minimum of 75 g average acceleration in the initial 3 ms of the half-sine shock application (UL1642) with extra cost.
