2L Precision Slurry Feeder with Stirring & Vacuum & Heating Functions (150oC Max) - MSK-SP-H2
  • 2L Precision Slurry Feeder with Stirring & Vacuum & Heating Functions (150oC Max) - MSK-SP-H2
  • 2L Precision Slurry Feeder with Stirring & Vacuum & Heating Functions (150oC Max) - MSK-SP-H2
  • 2L Precision Slurry Feeder with Stirring & Vacuum & Heating Functions (150oC Max) - MSK-SP-H2
2L Precision Slurry Feeder with Stirring & Vacuum & Heating Functions (150oC Max) - MSK-SP-H2

2L Precision Slurry Feeder with Stirring & Vacuum & Heating Functions (150oC Max) - MSK-SP-H2

SKU: msk-sp-h2

Price: RFQ

Specifications

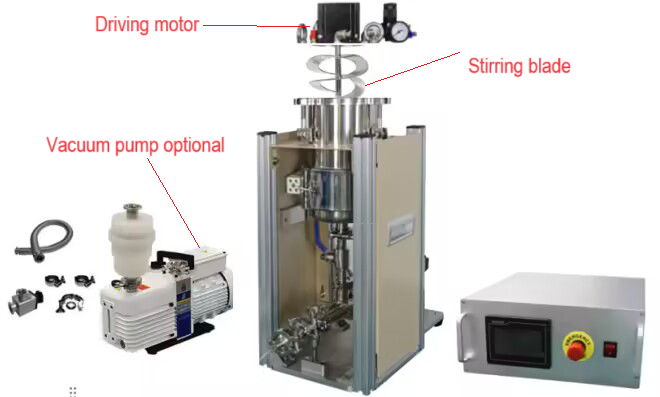

 MSK-SP-H2 is a precision slurry feeder delivered by a screw pump with 2000 mL air-tight stainless steel container. The container is heat able up to 150oC with digital temperature control. A stirring blade is inside chamber to mix slurry under either vacuum or positive pressure condition. It is designed for delver slurry precisinly for roll to roll Slot-die coating, and also can be used for mixing slorry before coating. It is multi-function tool for preparing various film for poly , ceramics and electrodes of lithium ion batter. SPECIFICATIONS: Features High-precision screw pump for delivering slurry with a wide range of viscosity from 0 to 10e6 CPS The stirring blade is inside the container to keep the slurry without precipitation during the coating Vacuumed mixing is possible to remove gas bubbles before coating. 2000 ml container is heatable up to 150oC for mixing and delivering special coating slurry. The device is Ar gas-compatible Power Single Phase, 220VAC+/-10%, 50/60Hz, Power consumption: 2000W Max Slurry Container Air-tight 2000 ml slurry container made of SS 316 stainless steel Vacuum can reach 10-2 torr by MTI mechanical pump ( optional) for mixing with KF25 port Positive inert gas pressure can reach 0.6 MPa for high-viscosity slurry with 1/4 gas inlet and valve. A rotary stirring blade is built inside the container and driven by a DC motor Stirring speed: 0 - 400 rpm adjustable A heating jacket is installed outside the container with a 150ºC max. working temperature One slurry position sensor is installed inside the container to ensure the machine stops running when the slurry is empty Screw Pump Screw pump materials： The rotor is made of EPDM, and the Stator is made of SS316 Feeding speed: 4~48ml/min adjustable Feeding accuracy: 1% Touch-Screen Control Panel The control unit is separated from the feeding device with a 7" color touchscreen panel, which will control and display the parameters below: Mixing blade speed （ 0- 400 rpm) Slurry feed speed ( 4~48ml/min ) Heating temperature ( RT- 150oC， single point ) Options To achieve a better coating by the slot die, the viscosity and dispersion of the slurry are significant. Please click the picture below to order a viscosity meter （Pic. 1） and dispersing machine（Pic. 2) to find the best parameter for your coating, For vacuum mixing, you may choose the MTI vacuum pump below ( Pic. 3) Pic. 1 Pic. 2 Pic. 3

Features
  • High-precision screw pump for delivering slurry with a wide range of viscosity from 0 to 10e6 CPS
  • The stirring blade is inside the container to keep the slurry without precipitation during the coating
  • Vacuumed mixing is possible to remove gas bubbles before coating.
  • 2000 ml container is heatable up to 150oC for mixing and delivering special coating slurry.
  • The device is Ar gas-compatible
Power
  • Single Phase, 220VAC+/-10%, 50/60Hz,
  • Power consumption: 2000W Max

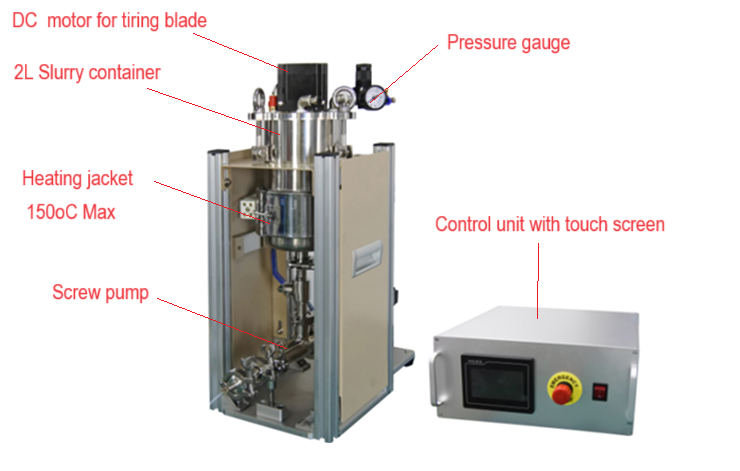

Slurry Container
  • Air-tight 2000 ml slurry container made of SS 316 stainless steel
    • Vacuum can reach 10-2 torr by MTI mechanical pump ( optional) for mixing with KF25 port
    • Positive inert gas pressure can reach 0.6 MPa for high-viscosity slurry with 1/4 gas inlet and valve.
  • A rotary stirring blade is built inside the container and driven by a DC motor
    • Stirring speed: 0 - 400 rpm adjustable
  • A heating jacket is installed outside the container with a 150ºC max. working temperature
  • One slurry position sensor is installed inside the container to ensure the machine stops running when the slurry is empty
Screw Pump
  • Screw pump materials：
    • The rotor is made of EPDM, and the Stator is made of SS316
  • Feeding speed: 4~48ml/min adjustable
  • Feeding accuracy: 1%
Touch-Screen Control Panel
  • The control unit is separated from the feeding device with a 7" color touchscreen panel, which will control and display the parameters below:
    • Mixing blade speed （ 0- 400 rpm)
    • Slurry feed speed ( 4~48ml/min )
    • Heating temperature ( RT- 150oC， single point )
Options
  • To achieve a better coating by the slot die, the viscosity and dispersion of the slurry are significant. Please click the picture below to order a viscosity meter （Pic. 1） and dispersing machine（Pic. 2) to find the best parameter for your coating,
  • For vacuum mixing, you may choose the MTI vacuum pump below ( Pic. 3)
  Pic. 1 Pic. 2   Pic. 3
