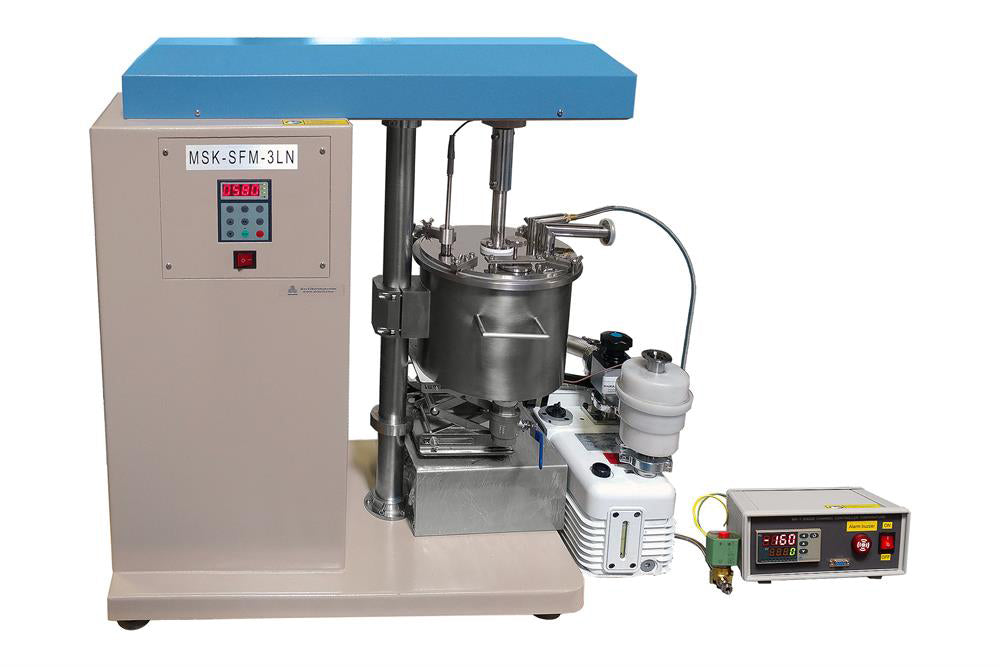

Liquid Nitrogen Cryogenic Rotor Mill with 5 Liter Vacuum Thermal Insulated Tank - MSK-SFM-3LN
  • Liquid Nitrogen Cryogenic Rotor Mill with 5 Liter Vacuum Thermal Insulated Tank - MSK-SFM-3LN
  • Liquid Nitrogen Cryogenic Rotor Mill with 5 Liter Vacuum Thermal Insulated Tank - MSK-SFM-3LN
  • Liquid Nitrogen Cryogenic Rotor Mill with 5 Liter Vacuum Thermal Insulated Tank - MSK-SFM-3LN
Liquid Nitrogen Cryogenic Rotor Mill with 5 Liter Vacuum Thermal Insulated Tank - MSK-SFM-3LN

Liquid Nitrogen Cryogenic Rotor Mill with 5 Liter Vacuum Thermal Insulated Tank - MSK-SFM-3LN

SKU: msk-sfm-3ln

Price: RFQ

Specifications

 MSK-SFM-3LN is a liquid nitrogen cold rotor mill with precision temperature control inside milling container, which is designed for grinding soft and tough material in a single container as low as - 160°C. SPECIFICATIONS Features 5-liter stainless steel container with vacuum thermal insulating shell Stainless steel blending rod with multi-layer blending blades; rotary speed adjustable from 0-1200 RPM Programmable controller to set time, speed, rotation direction according to application needs Max. Size of Input Particles 20mm Min. Size of Output Particles 1 micron Voltage 220V single Phase, 10A Max. (110V AC available upon request) Note: 220V AC Power plug is not included while customers choose 220V version. Please click here to order the plug ) Power AC motor at 1250W Max. Rotor Rod Speed 0-1200 RPM variable Grinding Container Made of SS 304 Steel with 5 Liter Capacity and vacuum jacket for thermal insulation. Dimension: I.D.: 210mm Height: 180mm Inserted with a PTFE liner to be anti-corrosive and to reduce contamination of grinding materials. Vacuum jacket with KF 25 port  and needle valve  ( vacuum pump is not included, please click picture below right to order ) Grinding Media Click the picture below to order milling ball according to your application Max. load of milling media is 3.5Kg (suggested ball size < 5mm diameter) Temperature & Liquid Nitrogen Flow Control Temperature inside the container is measured and controlled by the temperature controller with a thermal couple insert. The liquid Ni flow is regulated by the CSA certified cryogenic solenoid valve, 1/4 FNPT, 155 psi max. The lowest temperature: - 160C Liquid nitrogen tank and pipe are not included.  Please order from your local vendor Please see picture blow for operation procedure Compliance CE certified NRTL certification is available at an extra cost Application Notes Vacuum pump is required for the operation

Features
  • 5-liter stainless steel container with vacuum thermal insulating shell
  • Stainless steel blending rod with multi-layer blending blades; rotary speed adjustable from 0-1200 RPM
  • Programmable controller to set time, speed, rotation direction according to application needs
Max. Size of Input Particles
  • 20mm
Min. Size of Output Particles
  • 1 micron
Voltage
  • 220V single Phase, 10A Max. (110V AC available upon request)
  • Note: 220V AC Power plug is not included while customers choose 220V version. Please click here to order the plug)
Power
  • AC motor at 1250W Max.
Rotor Rod Speed
  • 0-1200 RPM variable
 Grinding Container
  • Made of SS 304 Steel with 5 Liter Capacity and vacuum jacket for thermal insulation.
  • Dimension:
    • I.D.: 210mm
    • Height: 180mm
  • Inserted with a PTFE liner to be anti-corrosive and to reduce contamination of grinding materials.
  • Vacuum jacket with KF 25 port  and needle valve  ( vacuum pump is not included, please click picture below right to order )


 Grinding Media
  • Click the picture below to order milling ball according to your application
  • Max. load of milling media is 3.5Kg (suggested ball size < 5mm diameter)
  •
Temperature & Liquid Nitrogen Flow Control

  • Temperature inside the container is measured and controlled by the temperature controller with a thermal couple insert.
  • The liquid Ni flow is regulated by the CSA certified cryogenic solenoid valve, 1/4 FNPT, 155 psi max.
  • The lowest temperature: - 160C
  • Liquid nitrogen tank and pipe are not included.  Please order from your local vendor

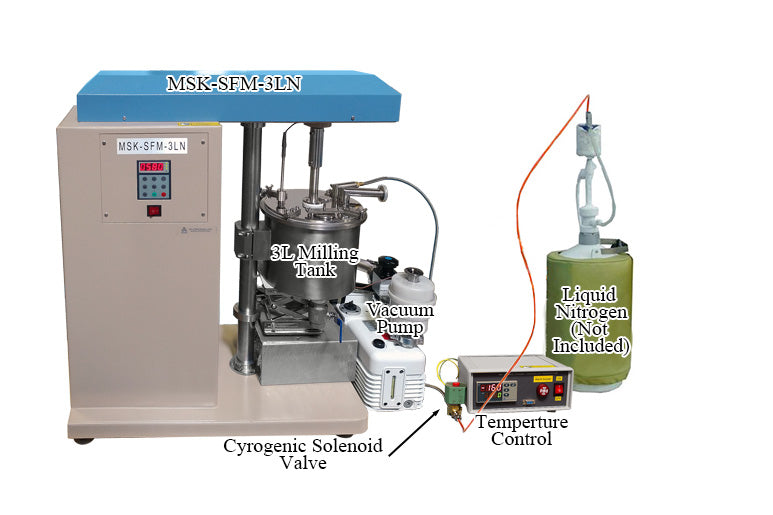

  • Please see picture blow for operation procedure






Compliance
  • CE certified
  • NRTL certification is available at an extra cost
Application Notes
  • Vacuum pump is required for the operation
