High Energy Impact Mill w/ Dual 50 ml Jars & 48 Tubes Adaptors -MSKSFM192LN

MSK-SFM-192LN is a versatile high energy, high-throughput ball mill & mixer designed for efficient milling and mixing. Two milling stations can hold two 50ml SS jars in position. Radial oscillating movements provide sufficient kinetic energy to the milling balls which impact the wall surface of the jar and pulverize the materials. The included multi-channel 24 x2 ml tube adapters enable the simultaneous milling/mixing of up to 48 different samples. Cryo-milling is also feasible by pre-treating the 50ml milling jars in liquid nitrogen. This compact ball mill can be operated inside a glovebox with Ar atmosphere or vacuum glovebox to achieve vacuum ball milling.

Specifications:

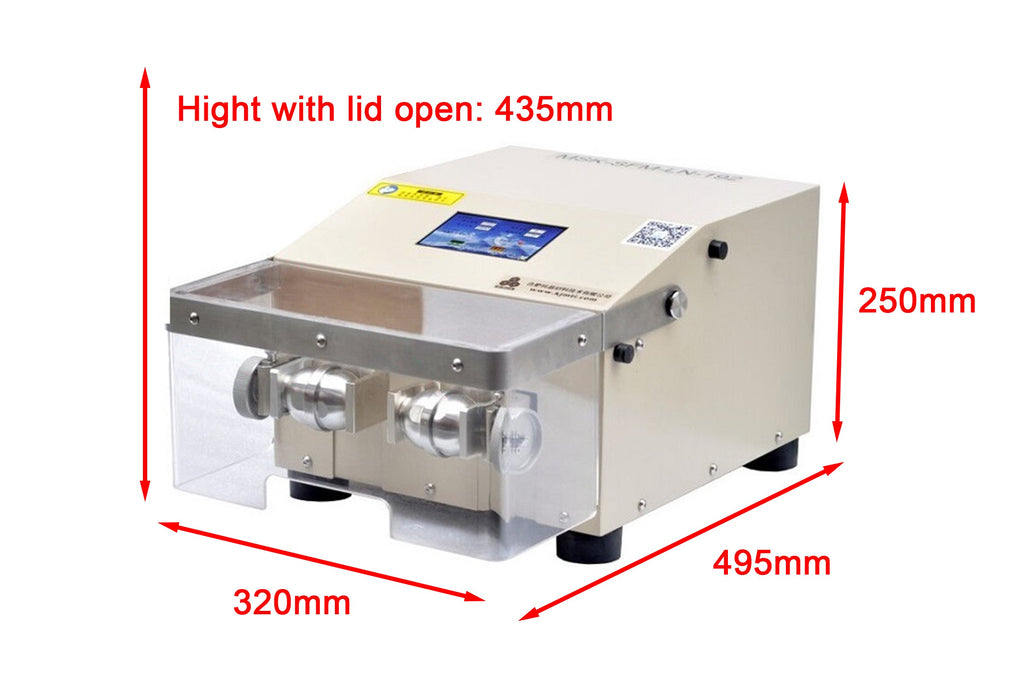

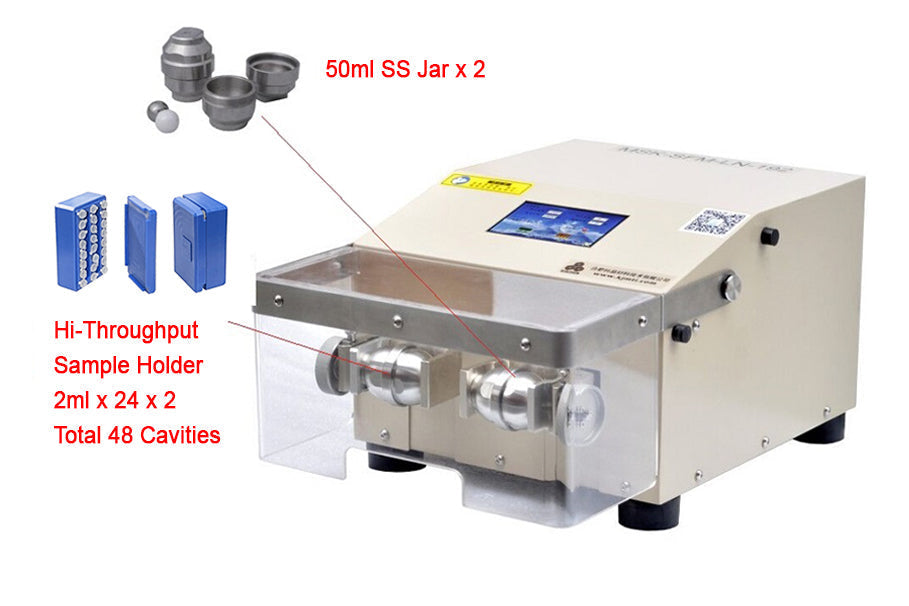

Features	High energy Impact ball mill/mixer with versatility - wet & dry grinding/mixing; multi-sample high throughput processing; cryogenic & room temperature Bench-top compact design with 2 Grinding Stations. Two standard 50ml SS jars are included. (pic. 1). Each Station can hold milling jars with a volume range from 1.5ml to 50ml. 2 sets of 24 slot adaptors are included for high-throughput milling of 48 samples via 2ml Microcentrifuge tubes (Pic. 2 &3 ) This device is able to perform cryo-milling: Before grinding temperature-sensitive or elastic materials, the user can pre-cool samples by submerging the grinding jar in liquid nitrogen. (pic. 4, 5, & 6)   pic. 1 pic.2 pic.3 pic. 4  pic.5  pic. 6
Working Voltage	110 or 220V AC, 50/60 Hz 24VDC motor. 400W Max.
Vibration	Frequency: ( 300-2000 swing/minute adjustable) Max. Amplitude: 25mm Time Display Range: 1 sec to 6553 sec.
Material Feed Size	≤ 8mm
Material Output Size	~3μm (may differ depending on the sample material)
Milling Jars/Balls	Standard Package includes. Two sets of 2ml x 24 Tube Holder adaptors (Pic. 1) Two 50ml SS Milling Jars ( Pic. 2) Four each 20mm SS Milling balls ( Pic. 3) 1.5mm Dia. Zirconia Milling Balls (~30mL, 250g)(Pic. 4) 48 pcs of 2ml sample tubes inserted in the tube holder adapters. (Pic. 5) We provide a wide range of jar/ball materials for contamination-free processes, such as Nylon, Alumina, Zirconia, and agate...Please contact us for more details. Optional (not included in standard package): SS Milling Jars with volume size: 10ml and 25ml (Pic. 6) SS Milling Jars with Zirconia lining 25mL/50mL PEEK substrate milling jars 25mL/50mL PTFE substrate milling jars 24 Holes Milling Holder (Pic.1) 50ml SS Milling Jar (Pic. 2) SS Milling Balls (Pic. 3) Zirconia Milling Balls (Pic. 4) 2ml Sample Tubes (Pic. 5) Optional SS Jars 10 - 80ml WC Jar 25 ml (optional)
Control Panel	Touch screen digital control panel Parameters: Milling time, Pause time, Cycle number, Vibrating Frequency, are programmable. 10 programs can be pre-stored in the panel Note: The single grinding time is recommended not to exceed 300s, and the total time is not more than 6553s.
Compliance	CE Certified NRTL certification is available at an extra cost
Application Notes	SS304 mixing jar is suitable for grinding various metal materials For milling the oxide material, please choose alumina/Nylon jars and zirconia media. DO NOT USE stainless steel balls in Alumina jars.

,

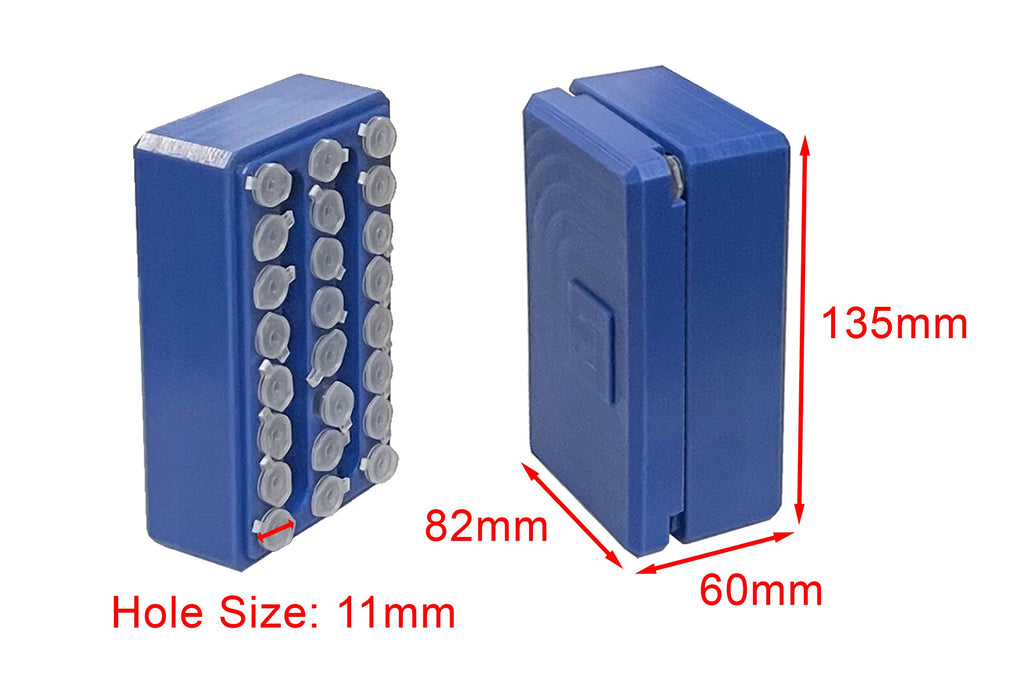

24 Holes Milling Holder (Pic.1)

50ml SS Milling Jar (Pic. 2)

SS Milling Balls (Pic. 3)

Zirconia Milling Balls (Pic. 4)

2ml Sample Tubes (Pic. 5)

Optional SS Jars 10 - 80ml

WC Jar 25 ml (optional)
