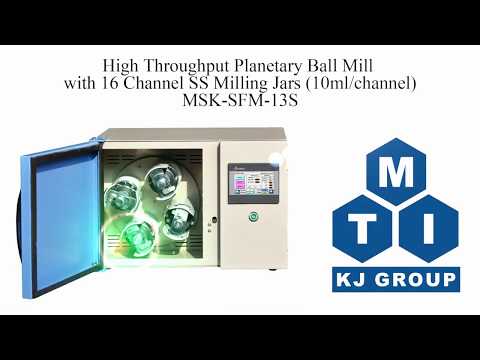

High Throughput Planetary Ball Mill w/ 4 -16 SS Milling Jars (10 -100ml Per Jar) - MSK-SFM-13S

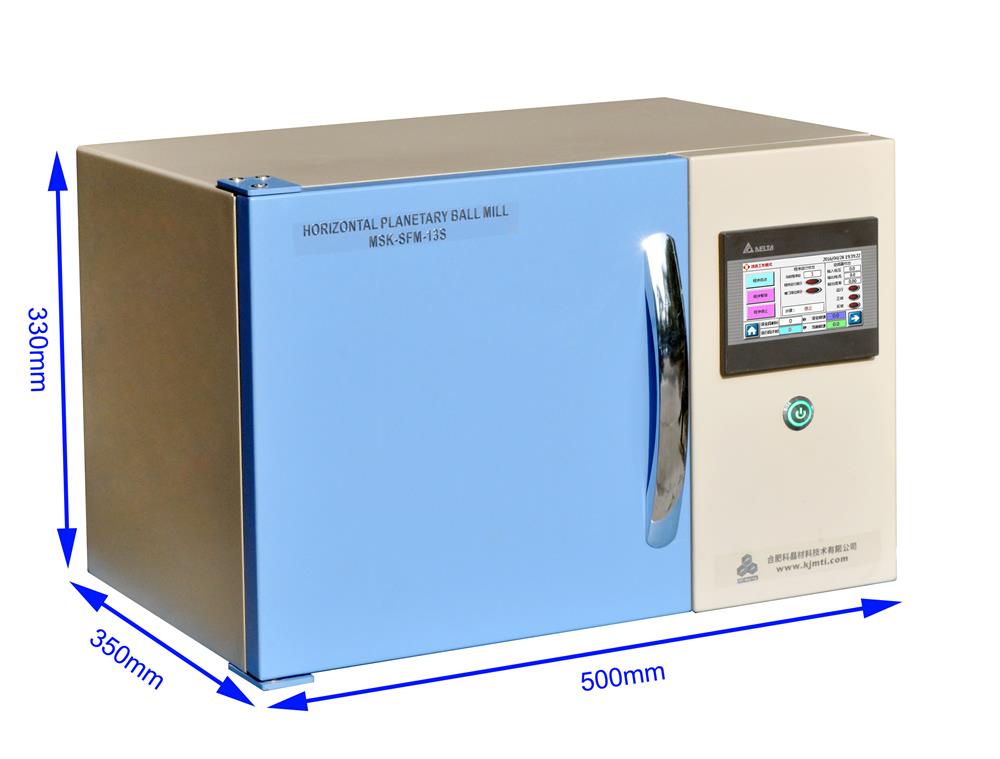

MSK-SFM-13S is a benchtop high throughput planetary ball mill designed to achieve the most efficient milling and fine grinding quality. 4 grinding stations with 4 cavity SS milling jars allow you to prepare up to 16 different materials (alloys, ceramics, chemical products, polymer composites, metal oxides, minerals, etc) in an efficient way. This is an ideal solution whenever high throughput material grinding/mixing is needed. It also can be used as four tanks (4x 10 ml) planetary mill removing 10 ml small tank.

Specifications:

Features	High throughput processing is feasible thanks to the 4-cavity SS jar. Up to 16 different materials can be processed at the same time with 4 jars placed in position. Please click the bottom left image to see the details. Bench-top compact design with 4 Grinding Stations. Large touch screen controller allows easy programming for multi-step speed-up/down milling/grinding, rotate direction, timing control, and cycling Efficient grinding benefits from the high centrifugal force and pulverization energy Suitable for mechanical alloying, mixing, homogenizing, pulverizing Minimum output granularity can be as small as 0.1 um
Working Voltage	208 - 240V AC (single-phase), 50/60 Hz 220V AC Power plug is not included. Please click here to order the plug. For operation under 110V, please use > 1000W transformer (click here to order) Power: 550W max.
Speed	Speed adjustable by tuning the frequency output to the AC motor  Revolution: Max.324 RPM, Min: 30 RPM Mixing tank self-rotation: Max. 648 RPM Min: 60 RPM
Speed Ratio	Revolution:Self-rotation = 1:2
Touch Screen Control	Digital display and inputs for speed and time Up to 10 recipes can be stored Max. 5 segments speed control per recipe, up to 10 Cycles Max. time for each segment is 99 hours 59 minutes 59 seconds Rotation direction selectable, clockwise-anticlockwise
Material Feed Size	Crispy materials< 10mm (Others<3mm)
Material Output Size	Wet Milling < 1um average Dry milling < 20um average Note: The output granularity is dependent on the material physical properties such as size, milling media and processing time. Minimum granularity can be as small as 0.1 um according to the customer's feedback.

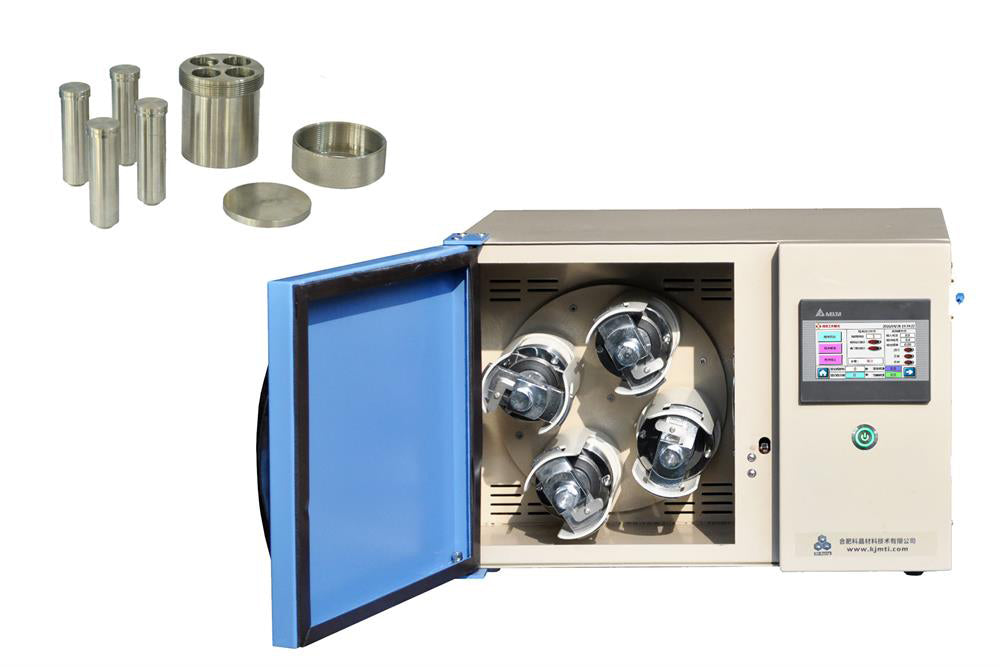

Milling Jars	Four sets of 4 cavity SS jars (10ml/cavity) are included, which can mill 16 samples per batch. Pic 1 Four sets of SS milling ball combo are included. Please click the pic in below to order spare balls. Pic. 2 Four jar holders can accommodate the single cavity jars, such as SS jar (Pic 4), vacuum jar. (pic. 5), Alumina Jar (Pic.6) Tungsten jars Pic. 3) We provide a wide range of jar/ball materials for contamination-free processes, such as Nylon, Alumina, Zirconia, agate...Please contact us for more details.   4 cavity SS jar (included) Pic. 1 SS Milling Balls ( Included) Pic. 2 WC Jar  Pic 3)   100ml SS Jar Pic. 4 Vacuum. Jar (Pic. 5)
Noise Level	55~70 decibel

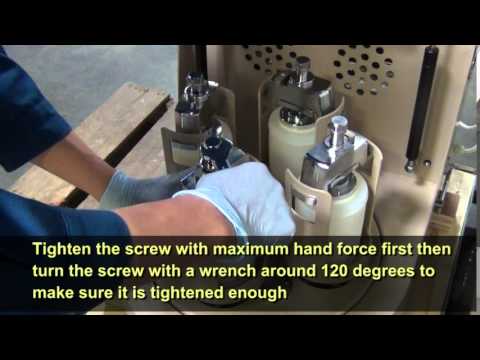

Holding Fixtures	Four sets of holding fixtures are included Easy to tight for max. jar securing. Can hold jars with height up to 80mm
Compliance	CE Certified NRTL certification is available at extra cost
Application Notes	SS304 mixing jar is suitable for grinding various metal materials For milling the oxide material, please choose alumina/Nylon jars and zirconia media. DO NOT USE stainless steel balls in Alumina jars.  Must place 4 jars or 2 in symmetrical with similar weight in the ball mill to keep balance during rotation, If using one jar, you must put another jar with the same weight in a symmetrical position. Otherwise, unbalance rotation, especially one jar, may damage the machine. Please consider our SYU-3 Ultrasonic Filtration System for filtering the product Please click underline to learn Centrifugal Force calculation.

,

4 cavity SS jar (included) Pic. 1

SS Milling Balls ( Included) Pic. 2

WC Jar  Pic 3)

100ml SS Jar Pic. 4

Vacuum. Jar (Pic. 5)
