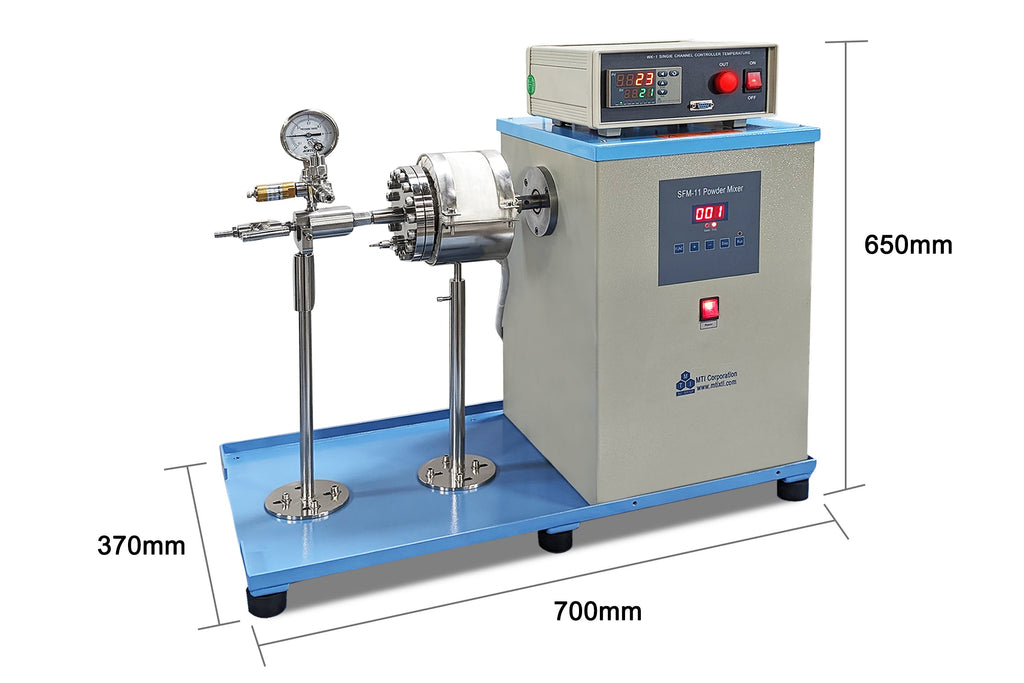

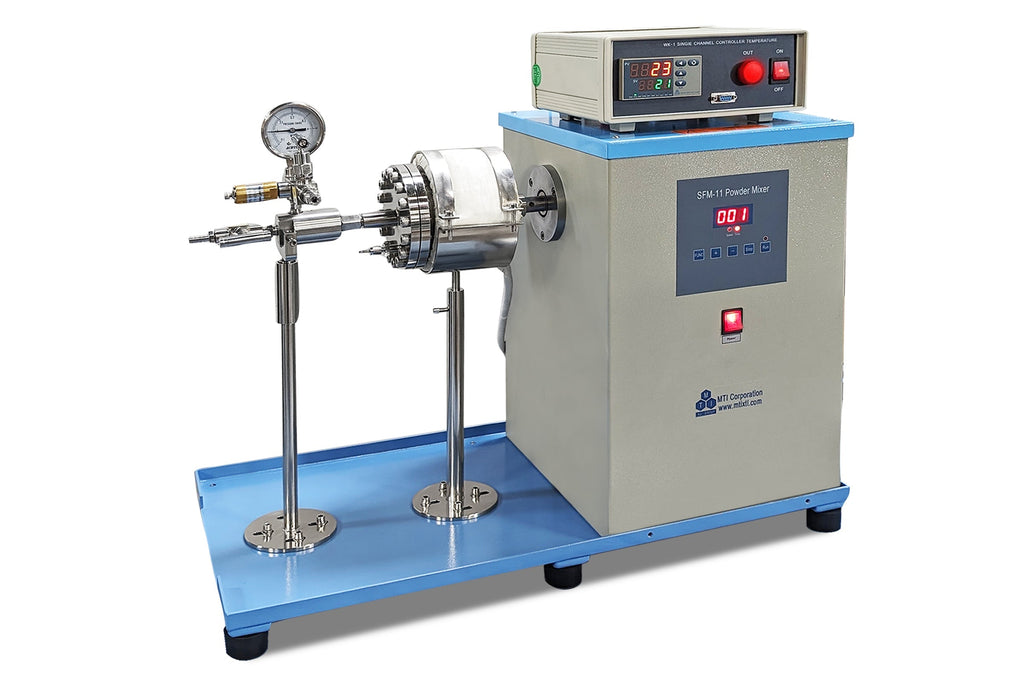

500°C & 3 Bar Max. Rotary Ball Milling (500ml) with Gas Flow Function - MSK-SFM-11-H500

MSK-SFM-11-H500 is a high-temperature rotary ball with gas flowing function up to 500oC and 3 bar pressure. The high-temperature ball mill can be used for the Mechanochemical activation of catalysts for CO2 methanation. For more applications using a ball mill, please review the article at https://doi.org/10.1002/anie.201810902

Specifications:

Rotary Device	Input power: 110- 240V AC to 24V DC power adapter for universal using Power consumption: 250W Max. Single-axis rotation with speed from 20 to 90 rpm Digital timer setting 1 - 900 minutes The mixer can be used inside the glovebox under Ar or N2 gas
Milling Jar	500 ml milling jar with gas inlet and outlet valves and swive support is connected to the rotation axis The milling jar is made of SS304 with dimensions: 80 mm ID x 100mm ( ~500 ml) 1/4" gas inlet and outlet with needle valve and a pressure gauge is ar included One swiving support is connected to the rotary jar, which can keep the gas-flowing fixture without moving during the rotation of the jar. Max. working temperature: 500oC Max pressure rating: 3 bar for positive pressure and 10-2 torr for vacuum
Temperature Control	The milling jar is inserted into a heating jacket ( furnace ) with a digital temperature controller PID digital temperature controllers with 30 segment programmable with +/- 1°C accuracy Software for controlling temperature and displaying pressure is available upon request at the extra cost
Milling Ball	500g 3 mm dia. YSZ milling ball is included Click the picture below to choose various milling ball
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.
