SKU: msk-me-200

Price: RFQ

Description

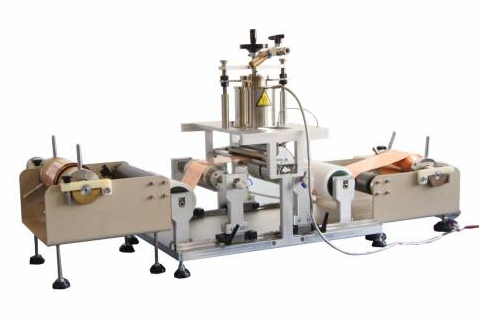

MSK-ME-200 is an experimental melt coating system equipped with a heated slot-die coating head. The heads can reach a maximum heating temperature of 350°C for producing polymer or polymer composite films, such as plastic films, and flexible electrolyte membranes for solid-state batteries. It can also be used for coating metal lithium films on copper foil inside a glovebox.

Power Supply
  • 208-240V, 50/60Hz, (single phase)

Power Consumption
  • 3.2kW
Heated Coating Heads
  • Up to 350 Heat able Slot-die Coating
  • 150mm width
  • ±2um coating thickness uniformity
Heating Chamber
  • Material: Stainless Steel SS316
  • Dimensions: ID54mm × height 230mm
  • Volume: ~500ml
  • Maximum Heating Temperature: 500°C Via external heating coil)
  • Temperature Control Accuracy: ±1°C
  •  Maximum Pressure: 2MPa.

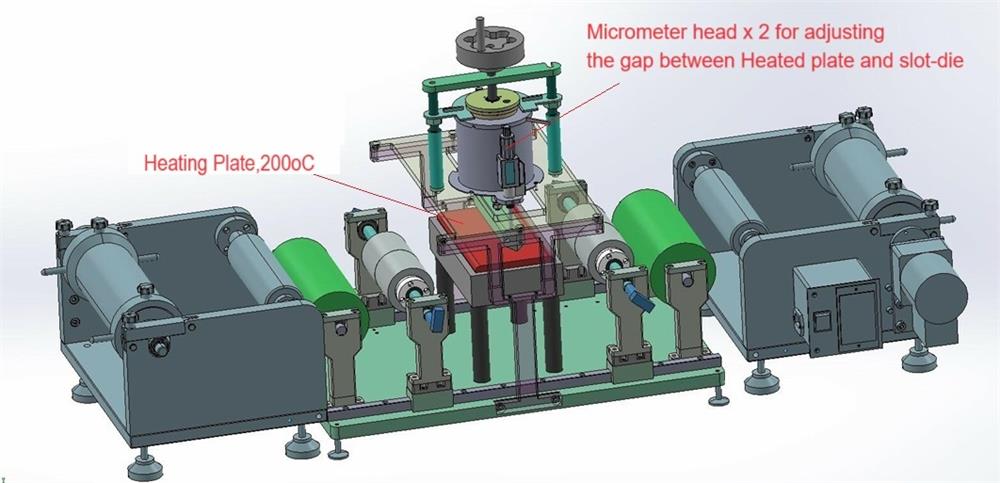

Heated Slot Die and Heating plate
Small Roll-to-Roll Melt Slot-Die Coating System (350°C Max.) for Polymer-based SSE and Li Anode, MSK-ME-200
  • One 150 mm width heated slot-die head is connected to the heating container
    • Cooling plate is available upon request with water chiller from 5oC - 35 oC
  • One 200 x 200 mm heating plate with max. 200 ºC is located at the bottom of the slot die
  • The gap between the slot die and the heating plate is adjustable via two-micrometer heads
Roll-to-Roll System
  • Maximum Width: 200mm
  • Speed Control Range: 0~800mm/min
  • 24V DC motor, suitable for use in an Ar environment inside a glovebox
  • Equipped with a 110 - 240 VAC to 24 VDC power adapter
Control Unit
  • The control unit with 7" touchscreen is separated from the device, which will control
    • Container temperature and pressure
    • Heated plate temperature
    • Roll-to-roll speed

Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost
