Explosion-Proof Box for Battery or High Pressure vessel Testing (20" x 20" x 20", 125L, UN38.3.4.7 & 8) - MSK-BS058
  • Explosion-Proof Box for Battery or High Pressure vessel Testing (20" x 20" x 20", 125L, UN38.3.4.7 & 8) - MSK-BS058
  • Explosion-Proof Box for Battery or High Pressure vessel Testing (20" x 20" x 20", 125L, UN38.3.4.7 & 8) - MSK-BS058
Explosion-Proof Box for Battery or High Pressure vessel Testing (20" x 20" x 20", 125L, UN38.3.4.7 & 8) - MSK-BS058

Explosion-Proof Box for Battery or High Pressure vessel Testing (20" x 20" x 20", 125L, UN38.3.4.7 & 8) - MSK-BS058

SKU: msk-bs058

Price: RFQ

Specifications

 The MSK-BS058 Explosion-Proof Steel Box provides a safe enclosure chamber for over-charging and forced-discharging of all kinds of battery cells required by the UN38.3 standard (38.3.4.7 & 38.3.4.8), as well as for MTI high-pressure vessel. Please click here to review the UN38.3 Li-Ion Battery Transportation Safety Testing Requirements SPECIFICATIONS Chamber Material & Size Materials: High strength steel (A3 steel) with a thickness of 5 mm Material yield strength: 235 MPa Inside (L × W × H): 500 mm × 500mm × 500mm Outside (L × W × H): 530 mm × 510mm × 660mm Anti-fire base: 10 mm thick bakelite plate Maximum Dimension with door opened: 1080mm Note: The max. capacity of Li-Ion batteries to be tested in the chamber should be limited to 3.8V @150Ah for single-cell or 570Wh for battery pack without protection circus Feedthrough 4 rectangular ports (75 × 35mm) at the back of chamber as electric feedthrough Mobility Four trolley wheels are installed at the bottom box for easy moving Application Ideal explosion-proof box with two Latch-Action Toggle Clamps for the high power rechargeable battery testing

Chamber Material & Size
  • Materials: High strength steel (A3 steel) with a thickness of 5 mm
  • Material yield strength: 235 MPa
  • Inside (L × W × H): 500 mm × 500mm × 500mm

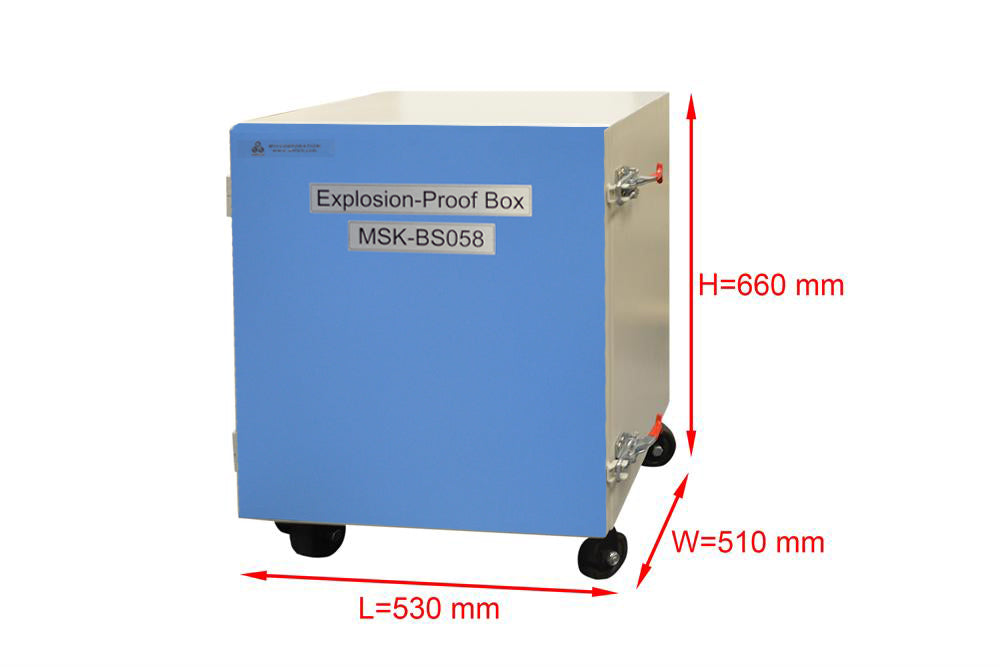

  • Outside (L × W × H): 530 mm × 510mm × 660mm
  • Anti-fire base: 10 mm thick bakelite plate
  • Maximum Dimension with door opened: 1080mm
  • Note: The max. capacity of Li-Ion batteries to be tested in the chamber should be limited to 3.8V @150Ah for single-cell or 570Wh for battery pack without protection circus

Feedthrough

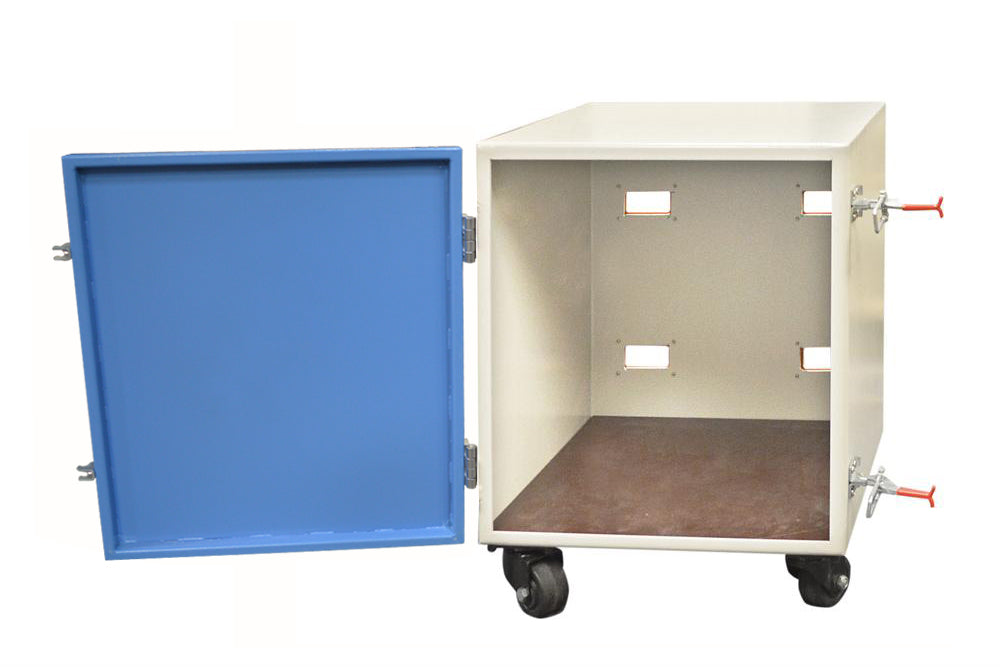

  • 4 rectangular ports (75 × 35mm) at the back of chamber as electric feedthrough

Mobility
  • Four trolley wheels are installed at the bottom box for easy moving

Application
  • Ideal explosion-proof box with two Latch-Action Toggle Clamps for the high power rechargeable battery testing
