Hybrid Ultrasonic Spraying and Screen Printing Film Coater (100 mm x 100 mm) - MSK-AFA-MF100

Hybrid Ultrasonic Spraying and Screen Printing Film Coater (100 mm x 100 mm) - MSK-AFA-MF100

SKU: msk-afa-mf100

Price: RFQ

Specifications

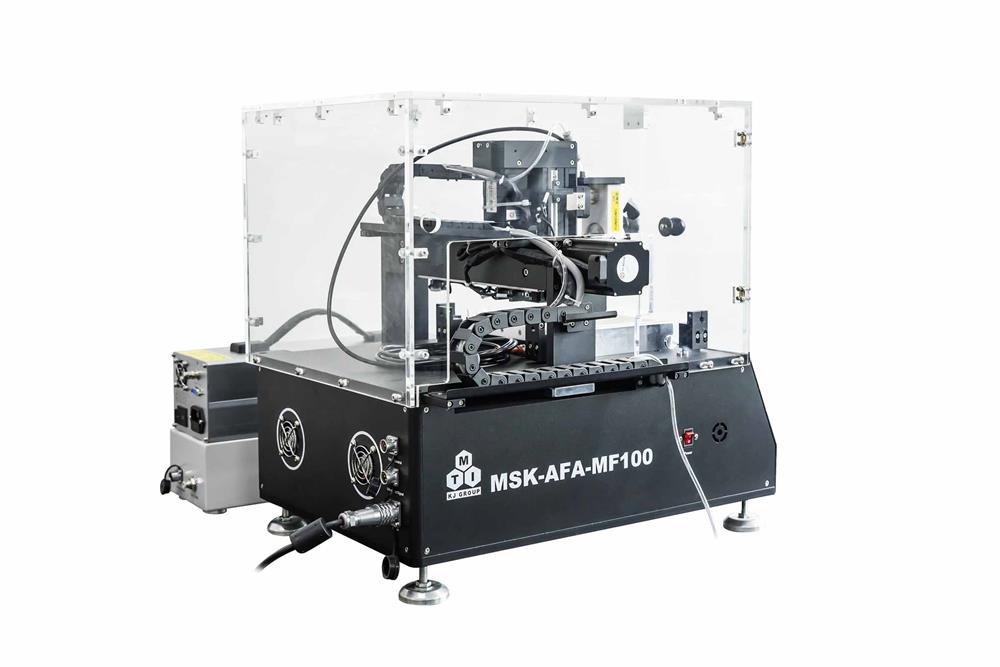

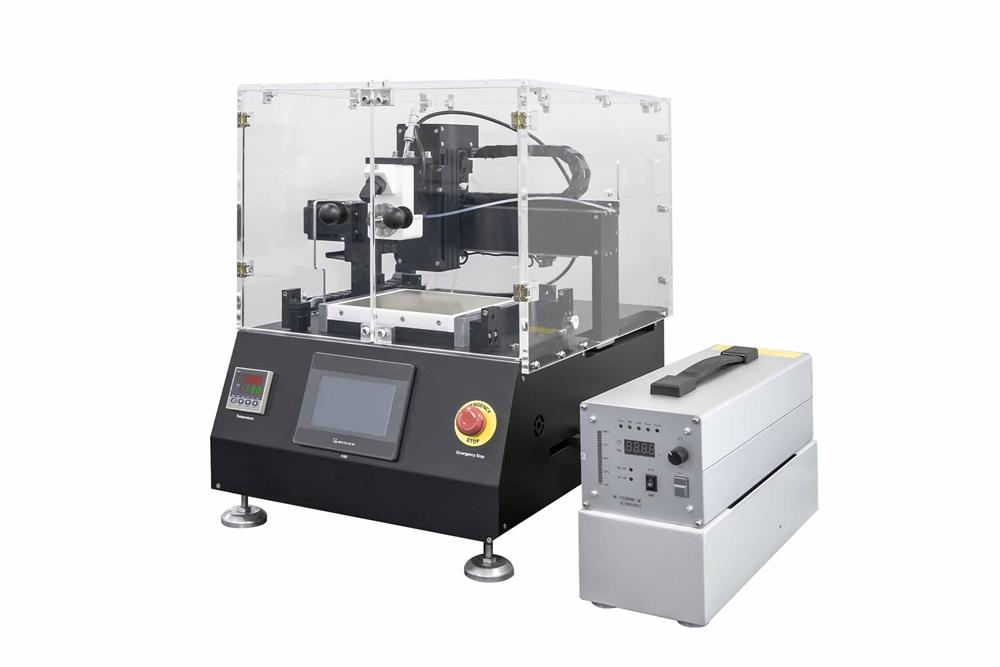

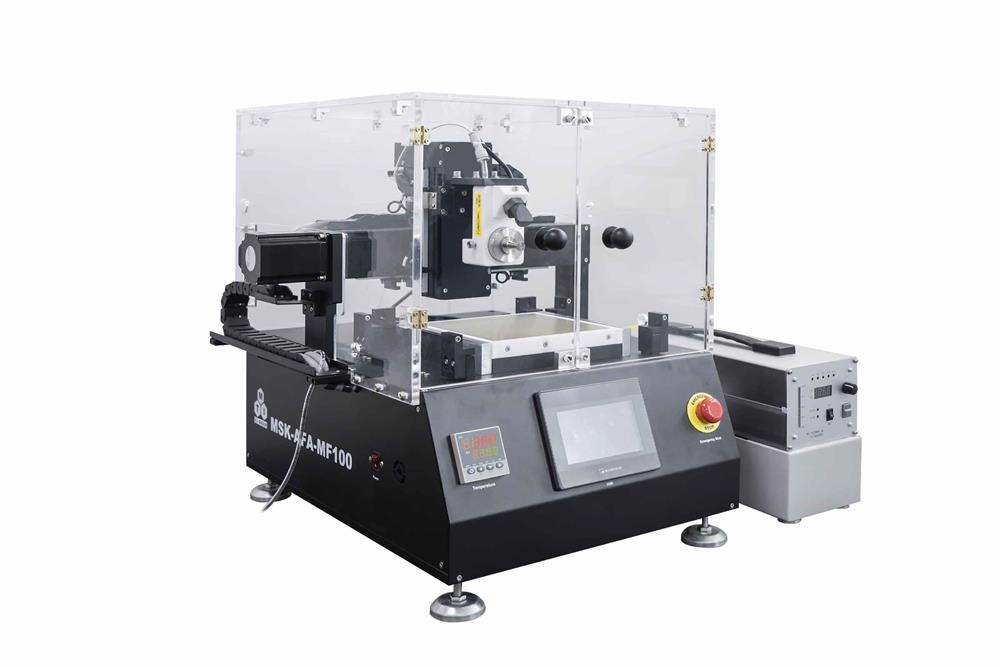

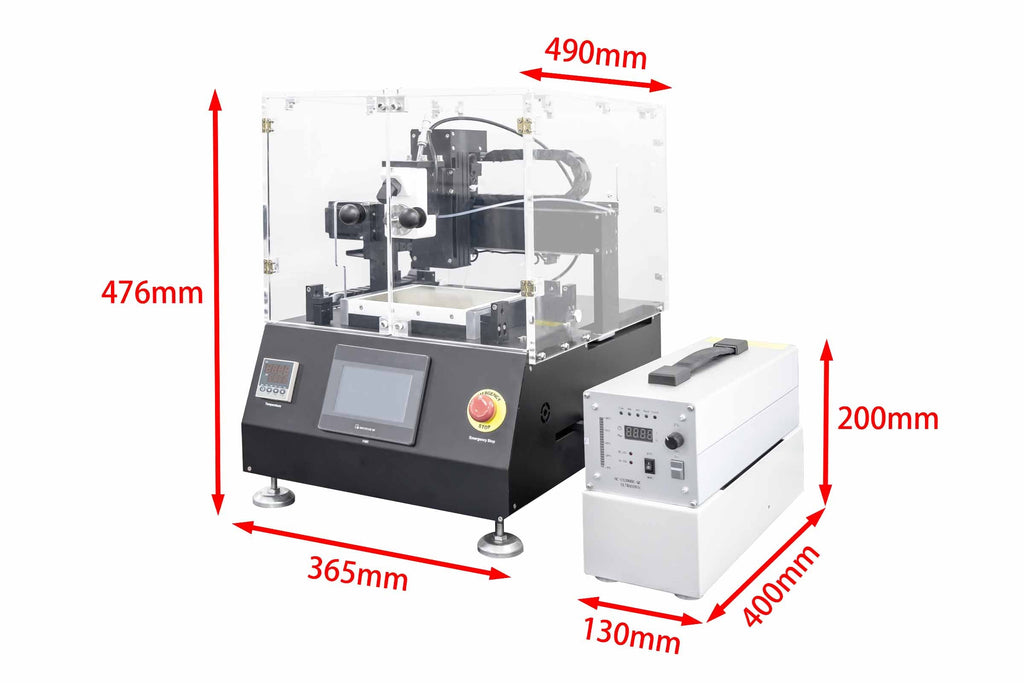

 MSK-AFA-MF100 is a multi-functional film coater driven by compressed gas with a coating area of 100 mm x 100 mm. It is compatible with two coating methods: screen printing and ultrasonic spray pyrolysis coating. A cost-effective tool for making various coatings with patterns and can be used for making flexible rechargeable battery electrodes, OLEDs, or thermoelectric devices. This machine can be used in the glove box.

Features
  • Two coating methods: screen printing and ultrasonic spray pyrolysis coating
  • Adjustable spray speed and position for screen printing
  • Adjustable moving track, feed rate, working height, and spray speed for ultrasonic spraying
  • Easy-to-use Touch Screen Panel
  • Vacuum chuck for holding the printing sheet faster and easier
Working Voltage
  • AC 110 - 220V±10% Single Phase, 50/60Hz, 280W

Screen Printing

(Not Available Now)
  • Recommend substrate size: L100-215mm x W100-120mm
  • Recommend slurry viscosity: 4000-8000 mPa.s
  • Coating accuracy: ± 6μm (typical value)
  • Coating thickness: 10-200μm
  • Coating speed: 132 mm/s adjustable
Ultrasonic Spraying
  • Frequency: 50 kHz, Power: 20 W.
  • Max. Temperature: 120℃
  • Recommend substrate size: L100-215mm x W100-120mm
  • Recommend slurry viscosity: ≤ 100 mPa.s (higher viscosity ultrasonic nozzle can be customized upon request)
  • Coating accuracy: ± 1μm (typical value)
  • Coating thickness: 25-100μm
  • Coating speed: 132 mm/s adjustable
Heatable Vacuum chuck
  • A substrate is held by the vacuum chuck with an area of 150 x 150 mm (The vacuum pump is built-in)
  • Heating Temperature: 120°C Max. with digital temperature controller
Substrate Thickness
  • 5 mm Max.
Effective Coating Area
  • 100 mm x 100 mm
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at an extra cost.

Compressed Gas Requirement
pic1

pic2
  • 0.5-0.8 MPa pressure required
  • The compressed air pump is required for the operation, but it is not included in the standard order, please click the link below to order one if you don't have.
  • Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator.
