Dehumidification System & Water Chiller for Movable Dry Room of 45 SM - MSK-ADS-6000

• The dry room system consists of a dehumidifier, a recirculating chiller, and a sealed room modified by a greenhouse(ordered separately)
• Can be installed without a construction contractor, and moveable by yourselves
• Dew Point: -40ºC （ ~ 79 ppm) under the condition that has no de-gas or de-vapor equipment inside and measures in the center of the dry room with one operator.
•  31.8 kW for dehumidifier / 23 kW for water chiller
• The dry room shall be placed in an air-conditioned room with a temperature < 26oC, and humidity < 60%
• Flexible to choose dehumidifier and water chill for DIY your own dry room

• 45 square meter or smaller dry room is available upon request

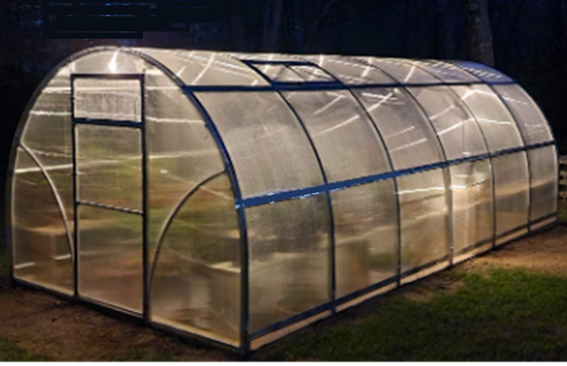

• A greenhouse can be used to make a dry room by DIY. You can buy it from Amazon and modify it into a sealed room DIY
• Dimension: W3,000 mm x L15,000mm* x H 2,100mm
• Three gas inlet ports ( 8" diameter ) and outlet outs ( 6") are included

One recirculating water chiller is included

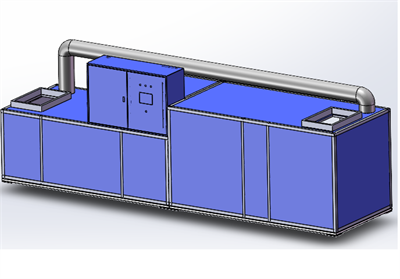

• Dehumidifier MSK-ADS-6000EP40S: AC 220 V +/- 10%, 50/60Hz, Three phases(4 wires)
• Water Chiller SDA-3025: AC 220V, 50/60 Hz, Three phases(4 wires)
• 31.8 kW for dehumidifier / 23 kW for water chiller

• < 55 dB

• Must wear Clean room clothes to enter the dry room as shown in the picture left for quick recovery of dew point
• Please keep the cloth inside the dry room to keep it dry.
• Please allow 20 - 30 minutes to recover the dew point to -40 C when one person enters the dry room
