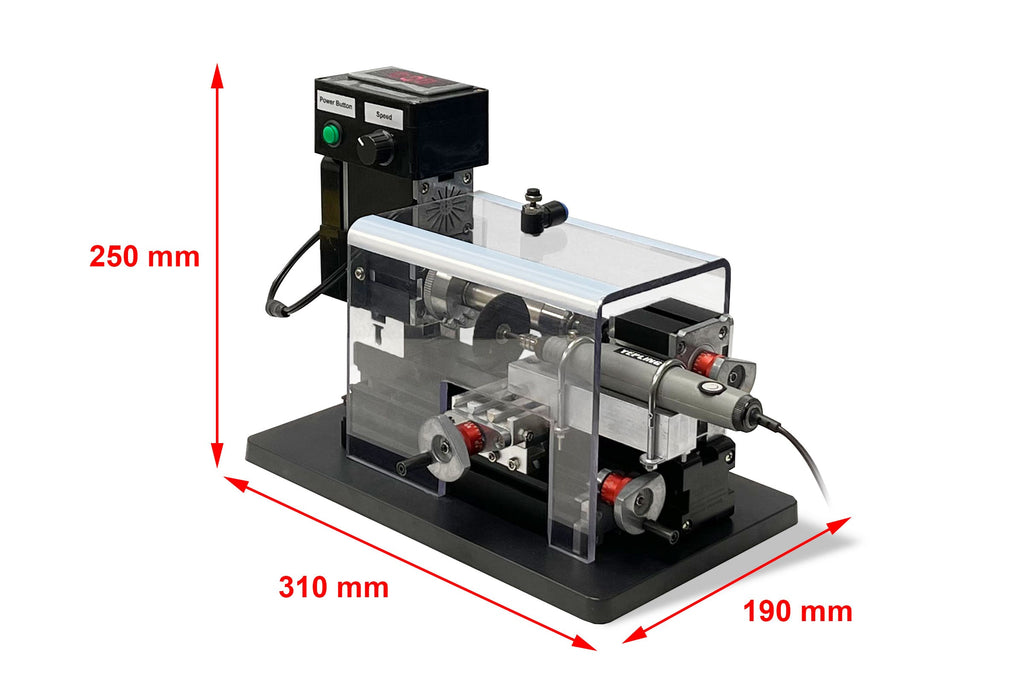

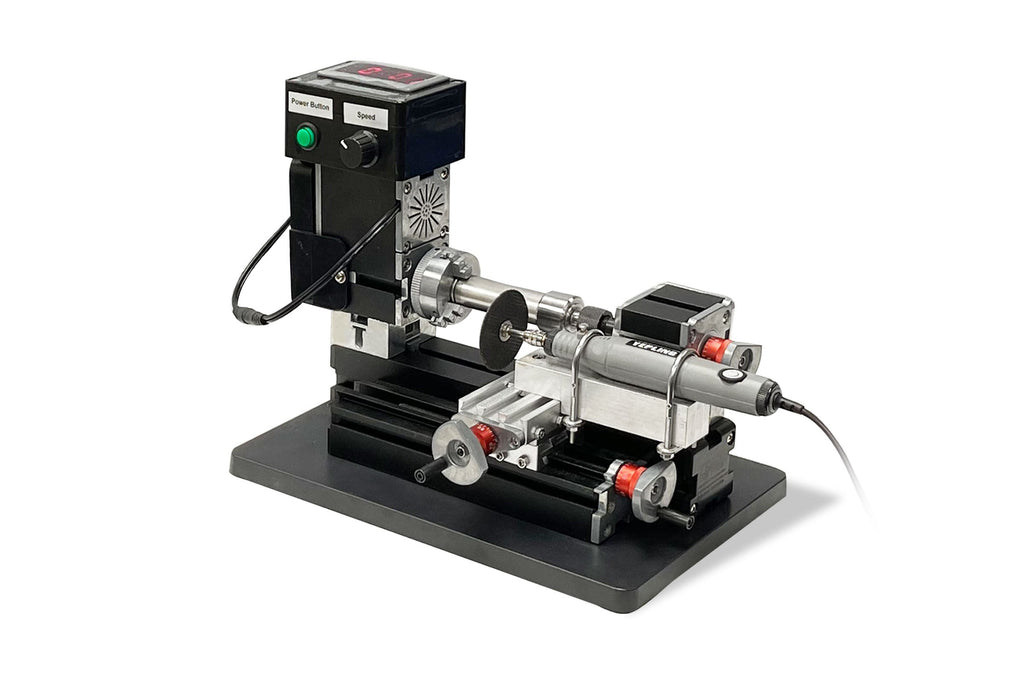

Compact Disassembling Machine for 18650, 21700 or 4680 -46110 Cylindrical Cases - MSK-4680
  • Compact Disassembling Machine for 18650, 21700 or 4680 -46110 Cylindrical Cases - MSK-4680
  • Compact Disassembling Machine for 18650, 21700 or 4680 -46110 Cylindrical Cases - MSK-4680
  • Compact Disassembling Machine for 18650, 21700 or 4680 -46110 Cylindrical Cases - MSK-4680
  • Compact Disassembling Machine for 18650, 21700 or 4680 -46110 Cylindrical Cases - MSK-4680
  • Compact Disassembling Machine for 18650, 21700 or 4680 -46110 Cylindrical Cases - MSK-4680
Compact Disassembling Machine for 18650, 21700 or 4680 -46110 Cylindrical Cases - MSK-4680

Compact Disassembling Machine for 18650, 21700 or 4680 -46110 Cylindrical Cases - MSK-4680

SKU: msk-4680

Price: RFQ

Specifications

 MSK4680 is a compact manually-operated machine for disassembling cylindrical cases. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with a safety protection cover allows customers to master the disassembling procedure within 5 minutes. SPECIFICATIONS: Supply Voltage Shaft: DC 12V, 60W Cutter: DC 18V, 18W (110~240VAC to DC power adapters are included) Slicing Motor Speed 14000 rpm Max Shaft Rotating Speed 12000 rpm Max Compatibility Compatible with 18650, 21700, and 4680 Cells. Protective Cover A protective cover with a controlled gas inlet is included for protection. Note: If the cell is cut and disassembled in air, it is recommended to feed inert gas through the gas inlet to minimize the sparks. Compatibility MSK4680 is compatible with the glove box, its compact size allows it to be transferred into the glove box via the large antechamber. Accessories 12 pcs Fiberglass Reinforced blades are included. Die set for cutting 18650, 21700, and 4680 cells are included Additional blades are available upon request. Attention Considering the best interest of the blade's service life , low feeding speed is suggested. Normally, 45 seconds is needed to cut through the cylinder casing.

Supply Voltage
  • Shaft: DC 12V, 60W
  • Cutter: DC 18V, 18W
(110~240VAC to DC power adapters are included)
Slicing Motor Speed
  • 14000 rpm Max
Shaft Rotating Speed
  • 12000 rpm Max
Compatibility
  • Compatible with 18650, 21700, and 4680 Cells.
Protective Cover

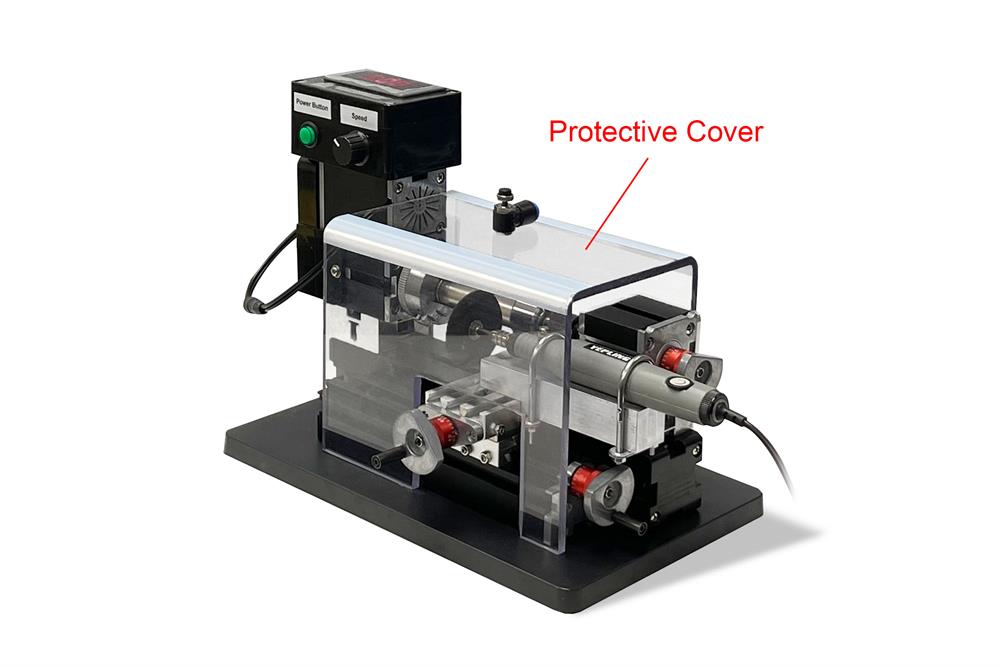

  • A protective cover with a controlled gas inlet is included for protection.
Note: If the cell is cut and disassembled in air, it is recommended to feed inert gas through the gas inlet to minimize the sparks.
Compatibility

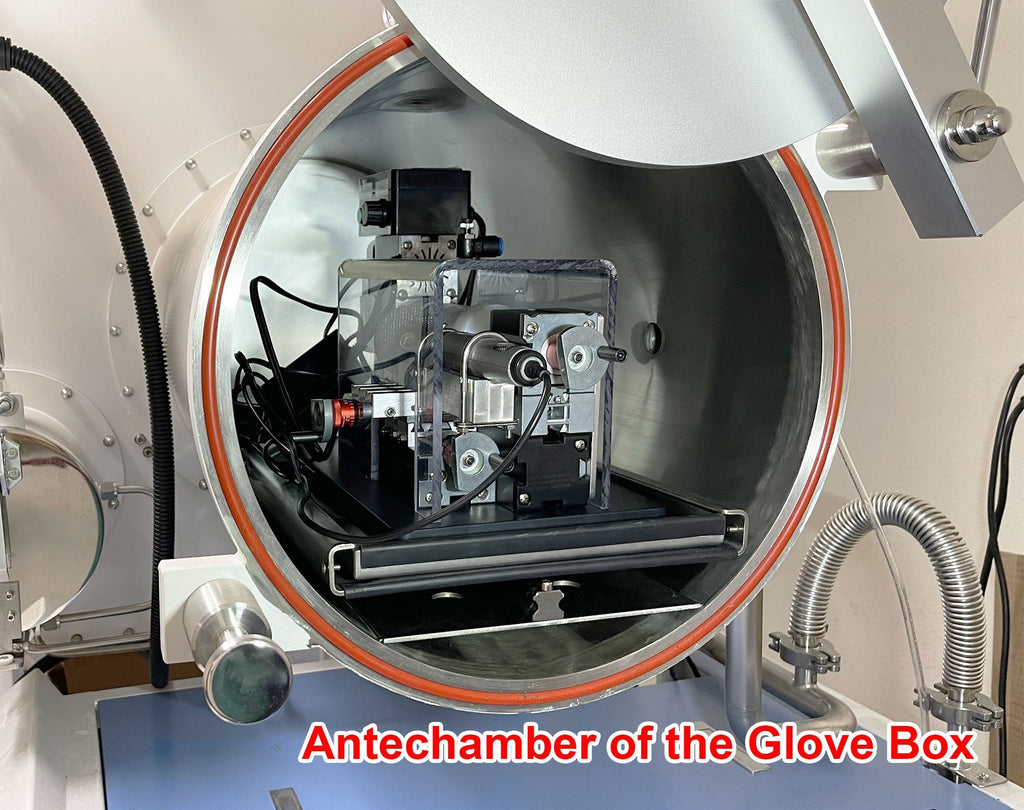

  • MSK4680 is compatible with the glove box, its compact size allows it to be transferred into the glove box via the large antechamber.
Accessories
  • 12 pcs Fiberglass Reinforced blades are included.
  • Die set for cutting 18650, 21700, and 4680 cells are included
  • Additional blades are available upon request.
Attention
  • Considering the best interest of the blade's service life, low feeding speed is suggested. Normally, 45 seconds is needed to cut through the cylinder casing.
