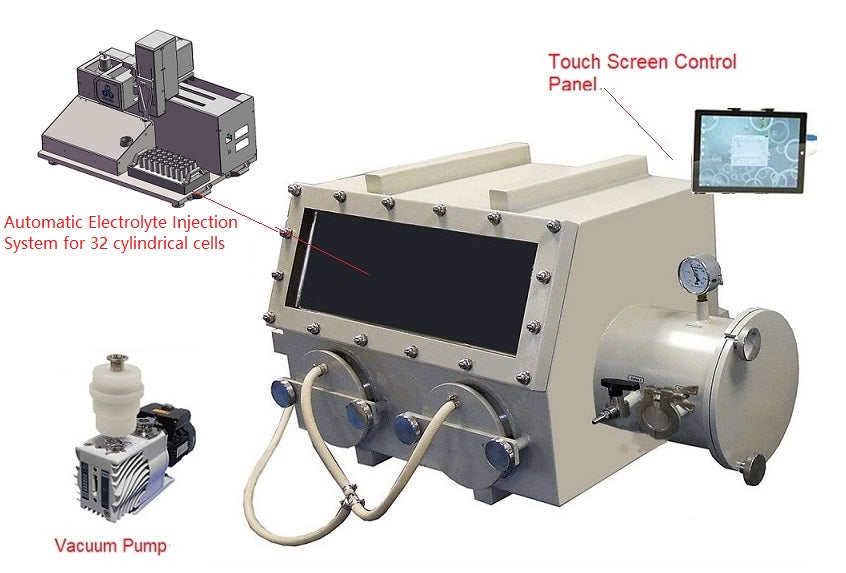

Automatic Electrolyte Injection under Vacuum Chamber for 32 Cylindrical Cells - MSK- 32-VGB

• Heavy-duty Stainless steel chamber with dimension:   780mm(L) x 700mm(W) x 650mm(H)
• Max. Positive Pressure: 810 Torr ( when use gloves)
• Max. Vacuum Level:     0.05 Torr ( when closing flanges)
• The one antechamber is built-in  ( dual antechamber is optional)
• Dimensions: 240mm(ID) x 260mm(L)
• Max. Vacuum Level: 0.05 Torr x
• Vacuum flanges in the front are included
• Power Extension is installed inside the glovebox
• 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter is included
• Please click the picture at the left column to see detailed specifications of the glovebox

 Electrolyte Injection Station

• XYZ three-axis platform for liquid injection of up to 32 cylindrical cells ( 18650) per tray
• Position accuracy+/- 0.5 mm
• The precision rotating plunger metering pump achieves high-precision injection with 0.3% accuracy.
• Min. filling capacity:    1.8 ml.
• Parameters such as vacuum level, vacuum time,  injection speed, injection volume, and operating speed are programable via the control panel of the touch screen, which is located the outside glovebox.
• Tray with 32 cells can be put in or taken off for an antechamber
• Please click the picture at the left column to see detailed specifications of the glovebox

Control Panel

• The touch screen control panel is installed at the outside glovebox for easy operation.
• The control panel will preset the program for:
• Vacuum level ( before electrolyte injection) and dwell time
• Atmosphere pressure ( when filling gas for sealing)
• The volume of electrolyte injection for each cell
• The moving speed  and distance of the X-Y platform  ( different cases with different spacing)

• Single-phase 208 - 240VAC, 50 / 60 Hz
• The glovebox:              800W
• Injection station           3000 W
• Crimping machine:      No power ( Air Compressor required )
• Total:                            >5000W power supply required

Click Picture at right to see details

• You may consider ordering a gas purification system for the glovebox to keep O2 and H2O below 1 ppm level ( click Pic. 1), which is available at the extra cost
• You may order a larger vac. glovebox and put the injection and crimping device together (Pic.2)
• Please order cylindrical cases by clicking Pic. 3
•
  Pic. 1   Pic 2

  Pic.3


Compliance

• CE approval
• NRTL Certification (UL 1450) is available upon request at extra cost

Warranty

• One year limited warranty with lifetime support

Operation Demo Video
