Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155
  • Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155
  • Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155
  • Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155
Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155

Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155

SKU: msk-155

Price: RFQ

Specifications

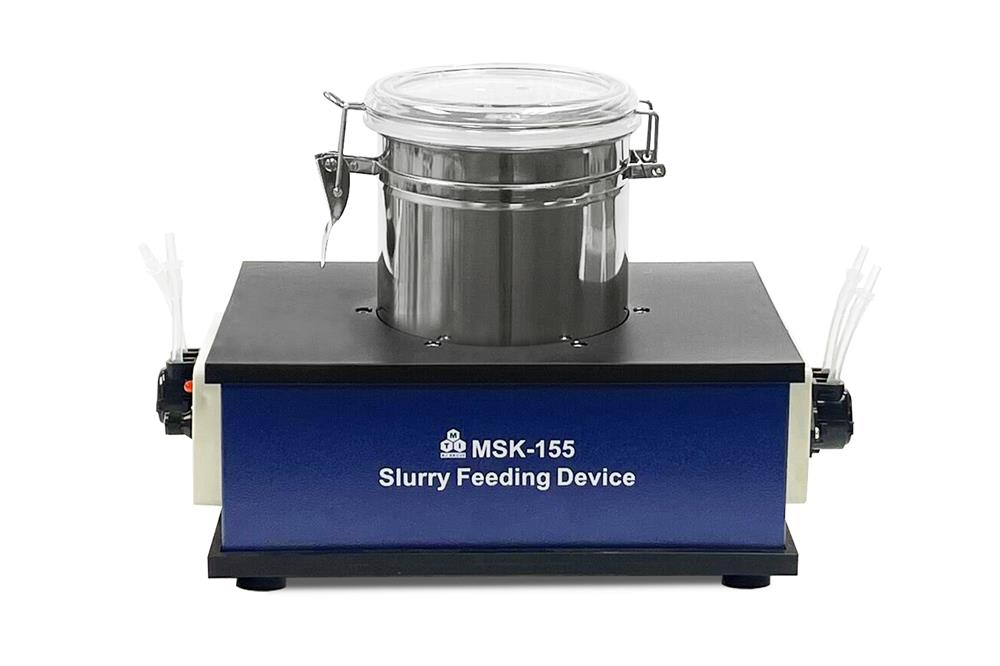

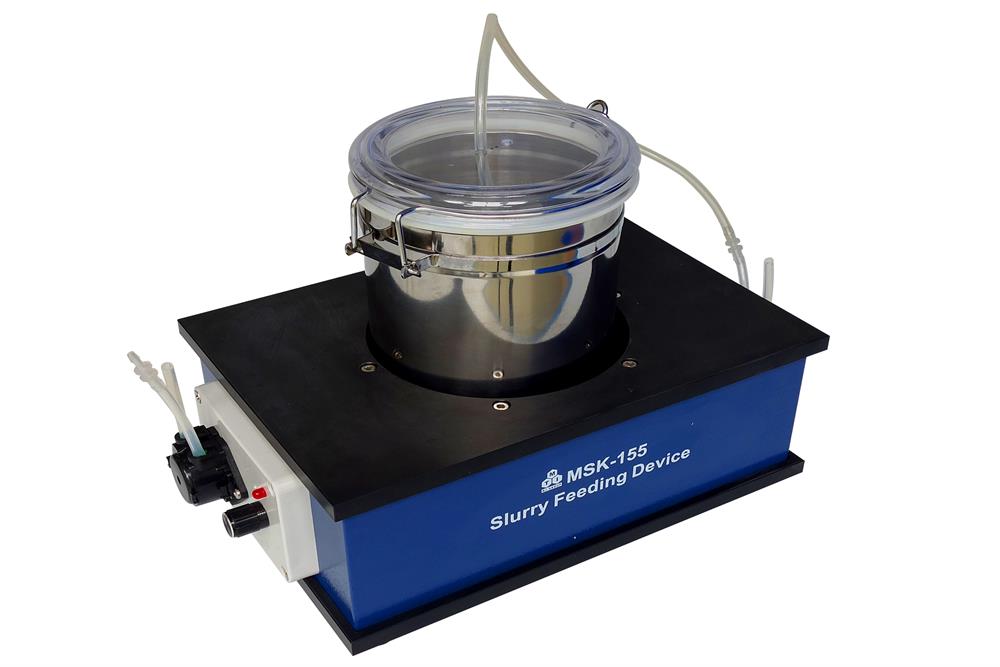

 MSK-155 is an automatic slurry feeder with peristaltic pump and stainless steel reservoir. It is designed for use with MTI Roll-to-Roll web coaters such as MSK-AFA-E200 and MSK-AFA-EI300 for Li-ion battery electrode coating process. Features Peristaltic pump for precise slurry feeding rate control. Compact design with two sets of stainless steel reservoirs and peristaltic pumps prevent cross contaminations between cathode and anode slurries. Corrosion resistant pipeline is compatible with any acidic, alkaline slurries Power Requirement 110~240VAC +/-10%, 50/60Hz 100W Max. peristaltic pump Two sets of peristaltic pumps can delivery Feeding rate 1965ml/min, adjustable Slurry Reservoir 2L Volume, 304 stainless steel Temperature Controller (Optional) The controller uses PID via SSR power control Single-point setting controller Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. Application Note Such a slurry feeder can be used with roll-to-roll web coaters such as MSK-AFA-E200 and MSK-AFA-EI300 to achieve higher product efficiency.

Features
  • Peristaltic pump for precise slurry feeding rate control.
  • Compact design with two sets of stainless steel reservoirs and peristaltic pumps prevent cross contaminations between cathode and anode slurries.
  • Corrosion resistant pipeline is compatible with any acidic, alkaline slurries

Power Requirement
  • 110~240VAC +/-10%, 50/60Hz
  • 100W Max.

peristaltic pump
  • Two sets of peristaltic pumps can delivery

Feeding rate
  • 1965ml/min, adjustable

Slurry Reservoir
  • 2L Volume, 304 stainless steel

Temperature Controller (Optional)
  • The controller uses PID via SSR power control
  • Single-point setting controller
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.

Application Note

 Such a slurry feeder can be used with roll-to-roll web coaters such as MSK-AFA-E200 and MSK-AFA-EI300 to achieve higher product efficiency.
