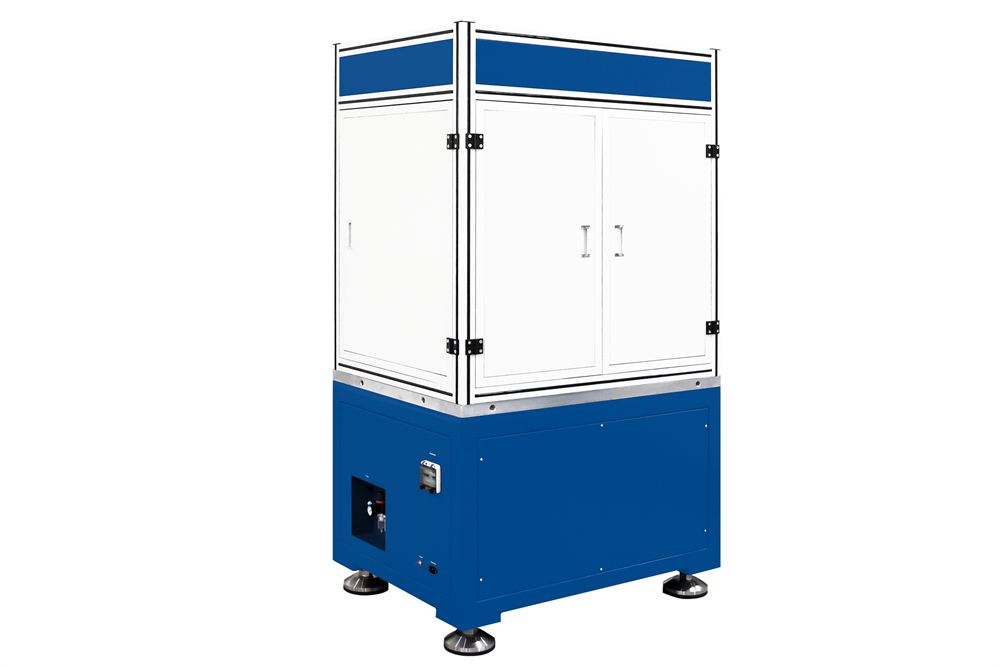

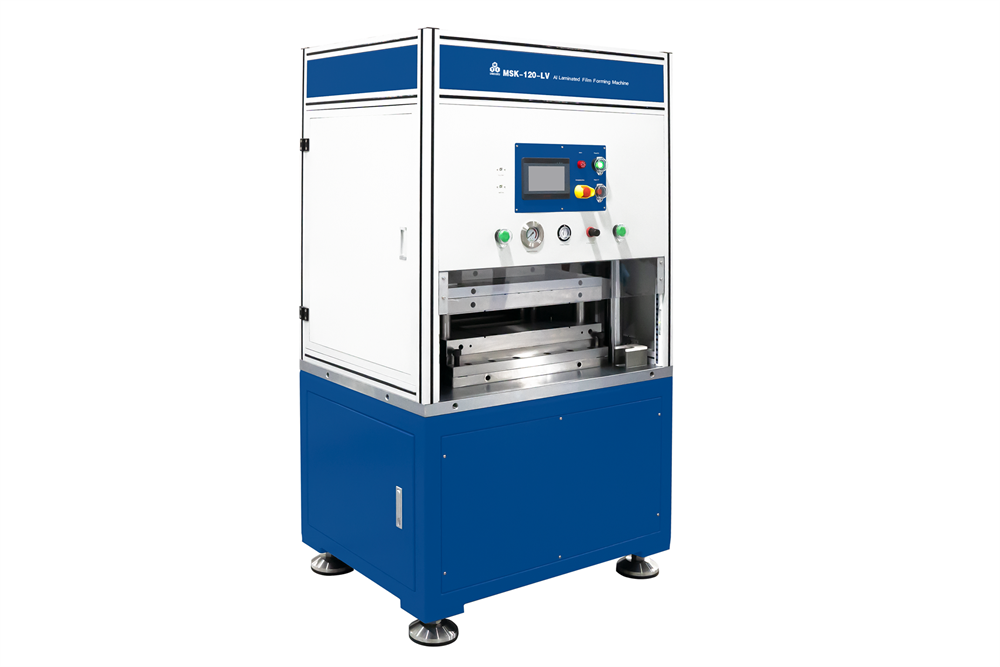

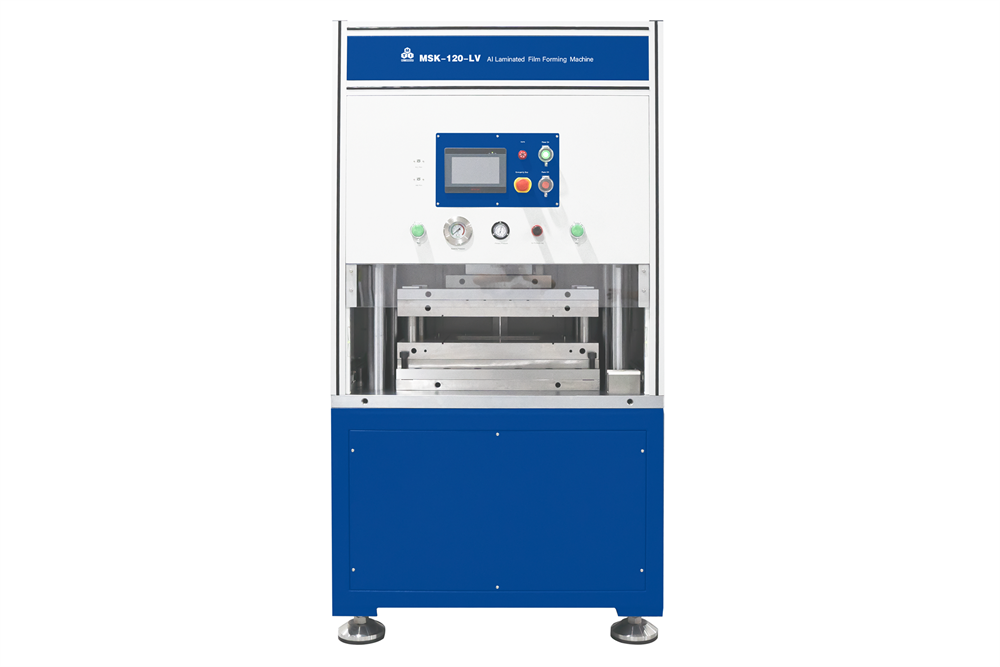

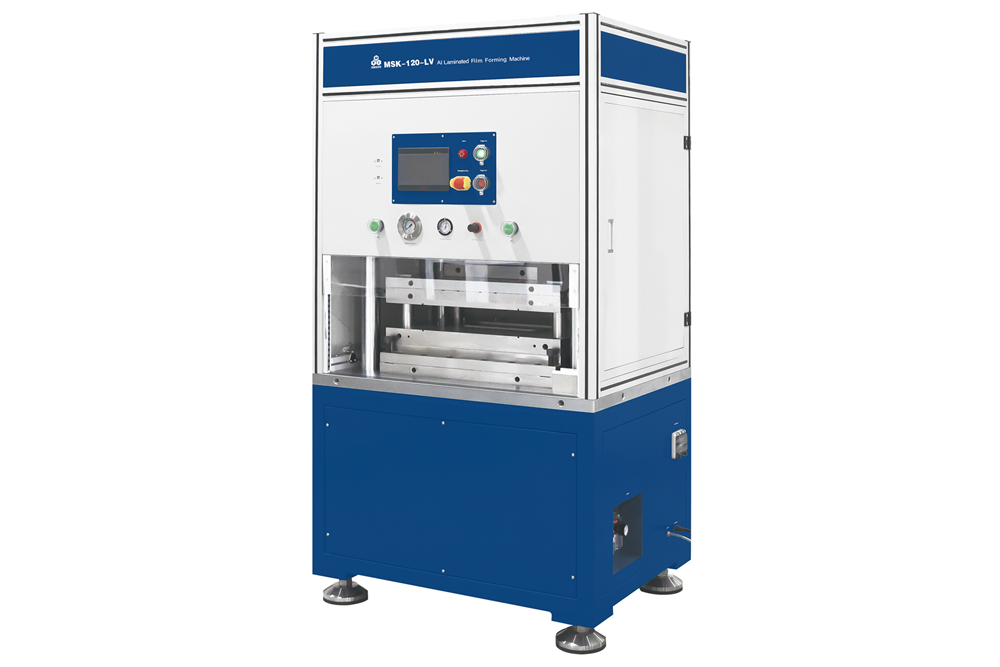

Pouch Cell Case Forming Machine with Automatic Depth Adjustment (Max. L380 * W310 mm) - MSK-120-LV
  • Pouch Cell Case Forming Machine with Automatic Depth Adjustment (Max. L380 * W310 mm) - MSK-120-LV
  • Pouch Cell Case Forming Machine with Automatic Depth Adjustment (Max. L380 * W310 mm) - MSK-120-LV
  • Pouch Cell Case Forming Machine with Automatic Depth Adjustment (Max. L380 * W310 mm) - MSK-120-LV
  • Pouch Cell Case Forming Machine with Automatic Depth Adjustment (Max. L380 * W310 mm) - MSK-120-LV
Pouch Cell Case Forming Machine with Automatic Depth Adjustment (Max. L380 * W310 mm) - MSK-120-LV

Pouch Cell Case Forming Machine with Automatic Depth Adjustment (Max. L380 * W310 mm) - MSK-120-LV

SKU: msk-120-lv

Price: RFQ

Specifications

 MSK-120-LV is a gas-driven and electrical Aluminum Laminated Films pouch case-forming machine with Automatic Depth Adjustment. The maximum pouch cell can be punched is L380 * W310 mm (no airbag mode) SPECIFICATIONS: Features Gas/Electrical driven. The pouch cell forming depth, punching pressure, and speed are programmable Case forming die set with high strength and precision. Display for case forming time PLC Control Voltage and Power AC 220V±10%, 50/60 Hz, single phase (AC110V is available upon request) Maximum power: 1500 W Customized Die Size Customer can choose the punching die size within the following types: Dual Concaves, Folded (with airbag): Max. L190*W250mm (punching airbag width: 50 mm). Single Concave, Folded (with airbag): Max. L205*W250mm (punching airbag width: 50 mm). Single Concave, Four-side sealing (with airbag): Max. L380*W250mm (punching airbag width: 50 mm). Single Concave, Four-side sealing (no airbag): Max. L380*W310mm Air Pressure Requirement 0.5 - 0.8 MPa Air or inert gas Air Compressor is not included . Please click here to order . Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator Max. Cup Depth Maximum 6.0 mm Precision: ± 0.05 mm Punching distance: 90 mm. Max. Punching Pressure 3T for case forming with servo motor; Case pressing force is up to 30 T (adjustable with pneumatic cylinder) Production Efficiency ~150-200 pcs/h Al Laminated Film The thickness of Aluminum Laminated Film : 0.10 mm - 0.20 mm is acceptable Please click the picture below to order Aluminum Laminated Film . Die Installation Warning The tolerance of precision die is very little; Misalignment will result in die damage. Following the operation manual when installing the die. MTI is not responsible for the damage caused by desperation.

Features
  • Gas/Electrical driven.
  • The pouch cell forming depth, punching pressure, and speed are programmable
  • Case forming die set with high strength and precision.
  • Display for case forming time
  • PLC Control
Voltage and Power
  • AC 220V±10%, 50/60 Hz, single phase (AC110V is available upon request)
  • Maximum power: 1500 W
Customized Die Size
Customer can choose the punching die size within the following types:
  • Dual Concaves, Folded (with airbag): Max. L190*W250mm (punching airbag width: 50 mm).
  • Single Concave, Folded (with airbag): Max. L205*W250mm (punching airbag width: 50 mm).
  • Single Concave, Four-side sealing (with airbag): Max. L380*W250mm (punching airbag width: 50 mm).
  • Single Concave, Four-side sealing (no airbag): Max. L380*W310mm
Air Pressure Requirement
Max. Cup Depth
  • Maximum 6.0 mm
  • Precision: ± 0.05 mm
  • Punching distance: 90 mm.
Max. Punching Pressure
  • 3T for case forming with servo motor; Case pressing force is up to 30 T (adjustable with pneumatic cylinder)
Production Efficiency
  • ~150-200 pcs/h
Al Laminated Film
Die Installation Warning
  • The tolerance of precision die is very little; Misalignment will result in die damage.
  • Following the operation manual when installing the die.
  • MTI is not responsible for the damage caused by desperation.
