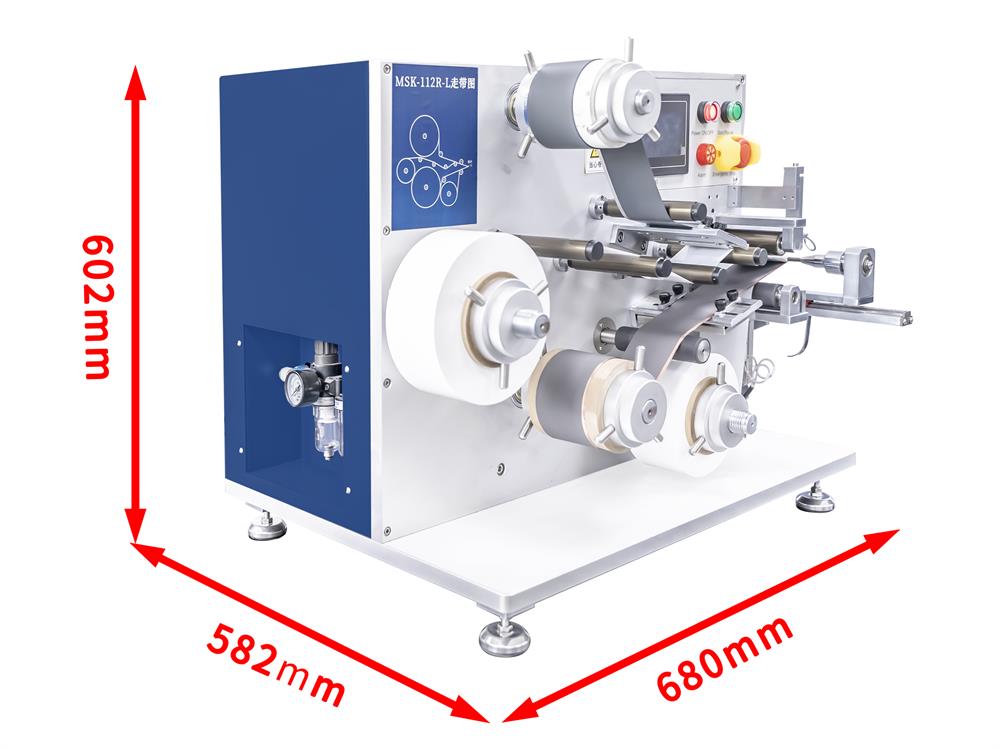

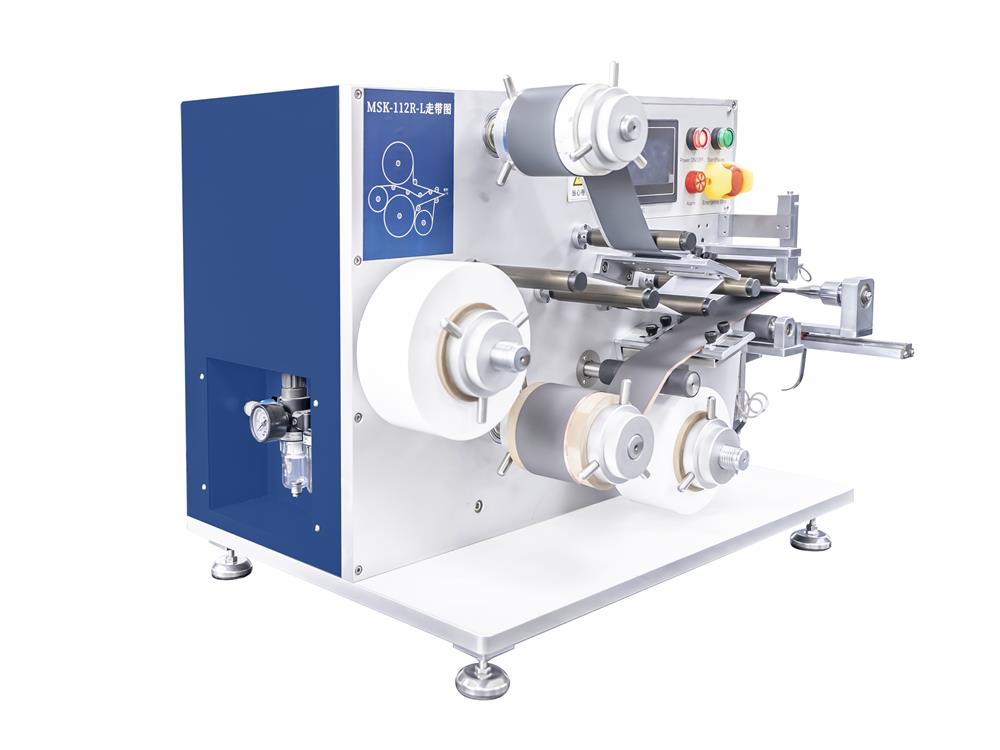

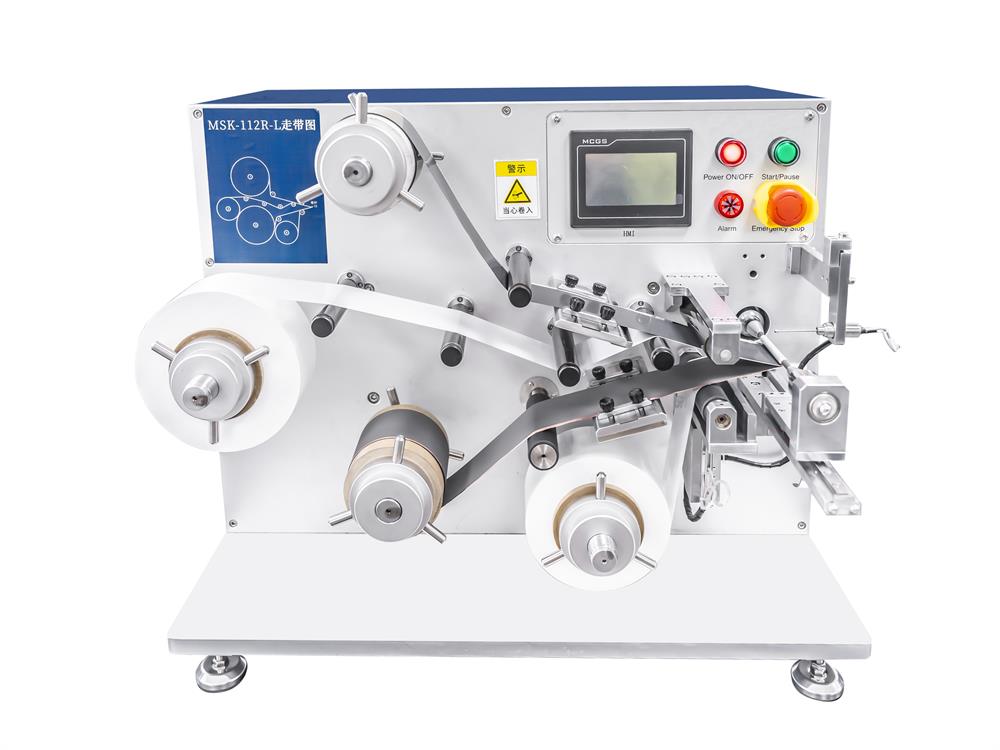

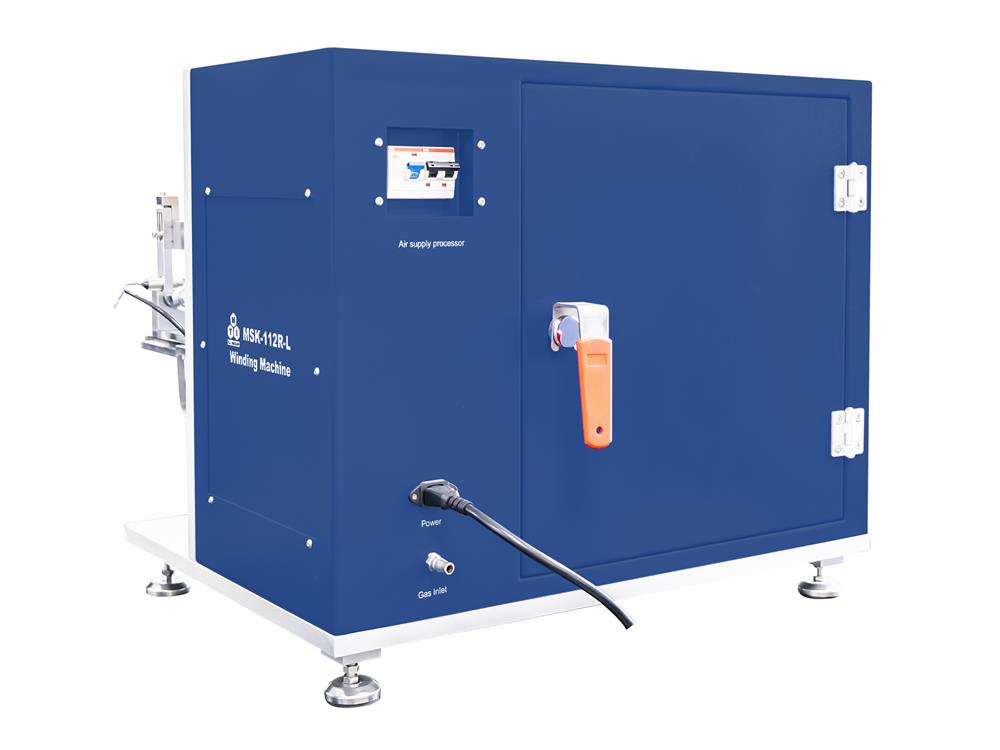

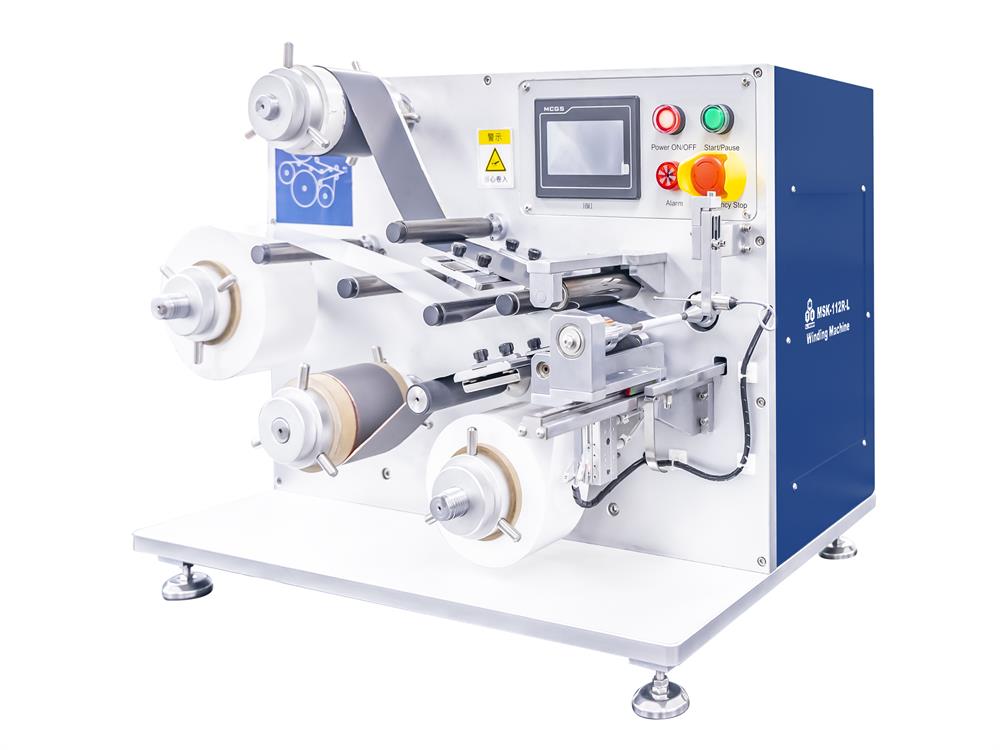

MSK-112R-L is used in the winding process of lithium-ion battery electrodes. It adopts passive unwinding, manual cutting, manual pulling, guide slot positioning, automatic winding, manual glue application, and manual unloading. Suitable for laboratories to explore the process of products.
Features
|
- Suitable for electrode winding for 4680 or even larger cylindrical cells with tabless structure.
- Passive unwinding, automatic estimation of roll length, manual electrode pulling, automatic winding, manual unloading, and manual gluing.
- Adjustable electrode guide slot positioning, guide groove position , and width.
- Adjustable winding speed and number of winding circles
- Winding tension is controlled by unwinding friction
- PLC control, touch screen setting.
- Small occupancy for laboratory use.
|
| Power & Voltage |
- Single-phase AC220V±10%, 50/60Hz (customized single-phase AC110V is available upon request)
- Power: 200W
|
| Process Introduction |
Winding Core
|
| Winding Needle |
Φ3.5 mm
|
| Electrode Core |
Diameter Max.Φ50mm, Length Max.100mm
|
| Guide Slot |
Width Max.100mm (adjustable)
|
| Roll Size |
Core Φ3 inch
Max. Φ250mm
|
| Winding Speed |
Max. 300r/min (adjustable)
|
Compressed Air
(separate purchase) |
|
| Electrode Material |
- Max. Width 100mm
- Max. Roll Diameter 250mm
|
| Separator Material |
- Max. Width 100mm
- Max. Roll Diameter 150mm
- Thickness ≥9µm
|
| Optional |
- MTI provides complete sets of equipment for the research of rechargeable battery materials.
- Consumables can be ordered at MTI at an extra cost
|
