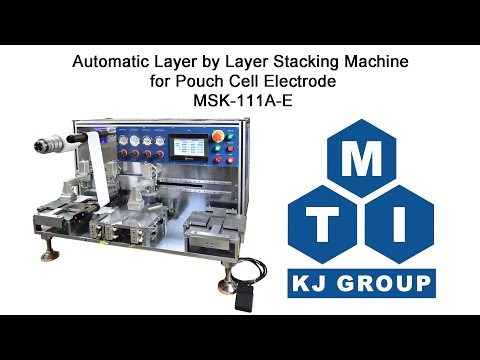

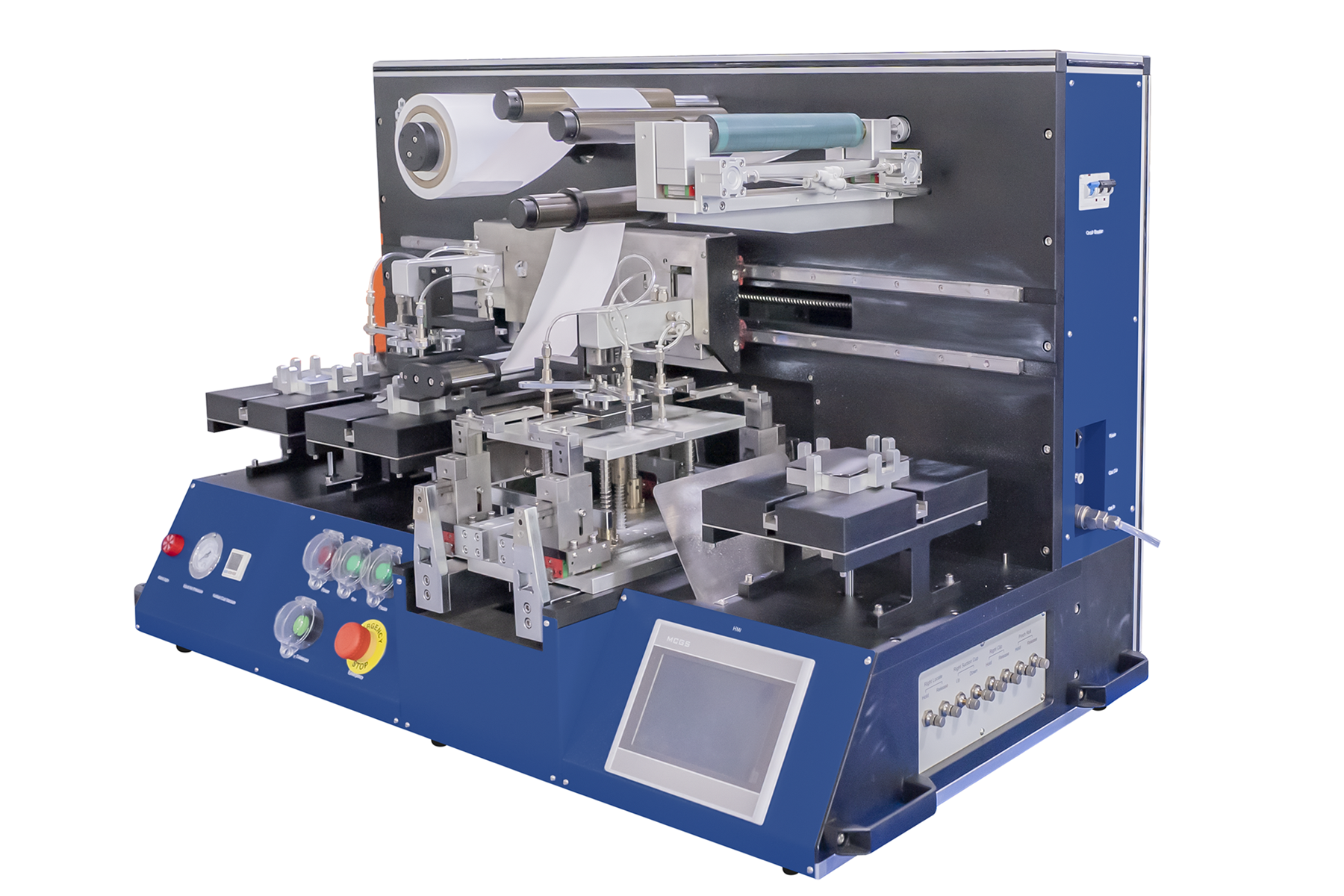

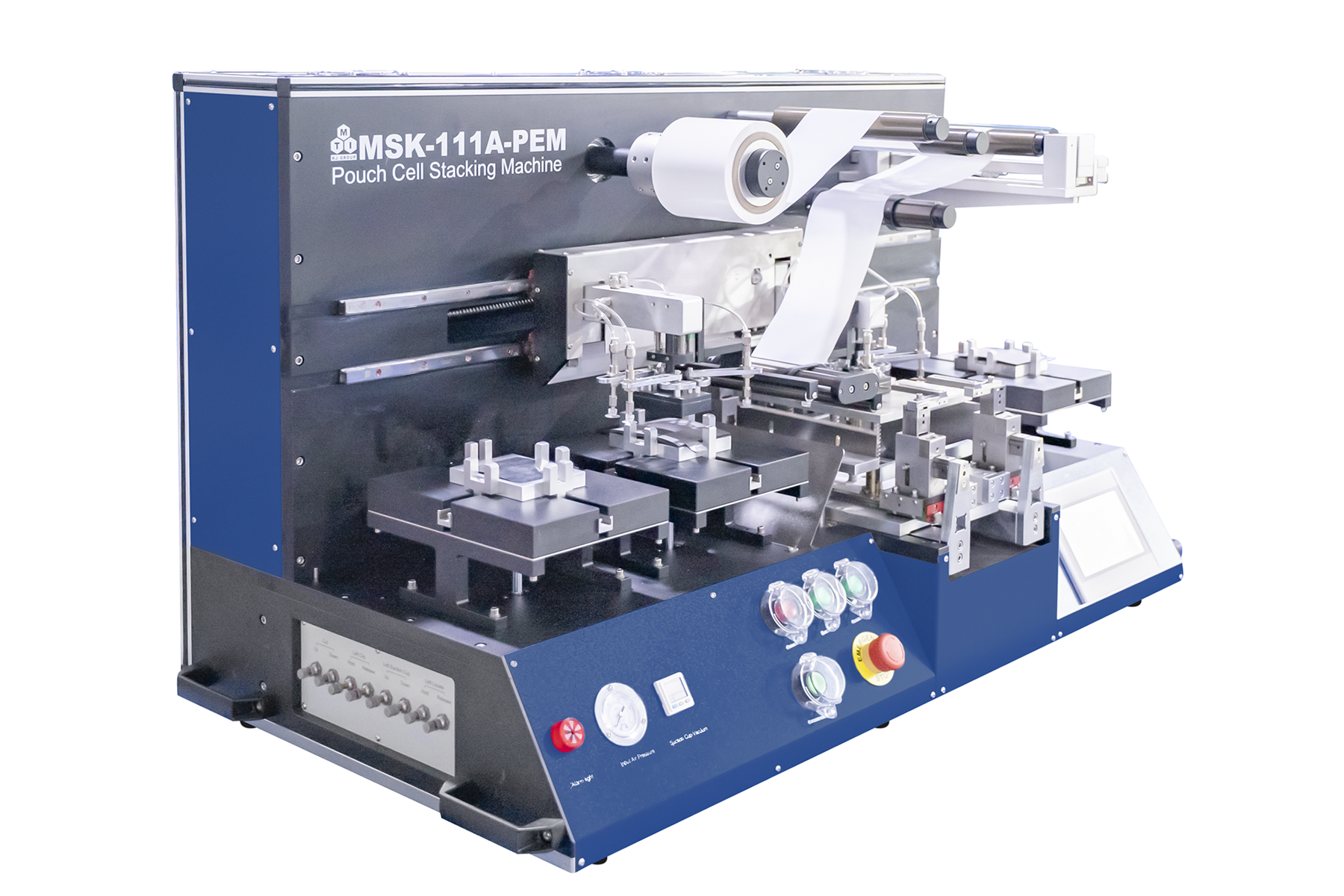

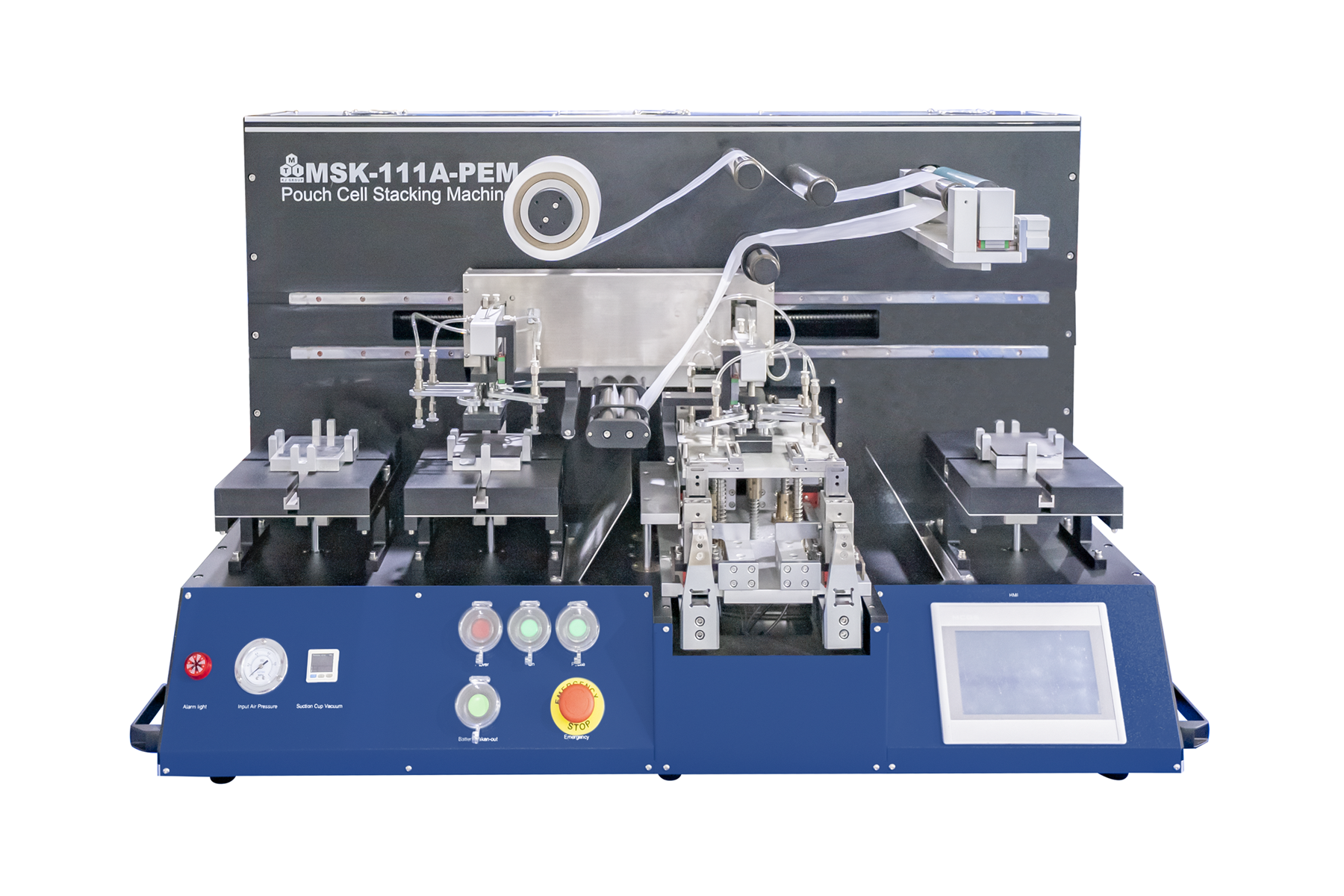

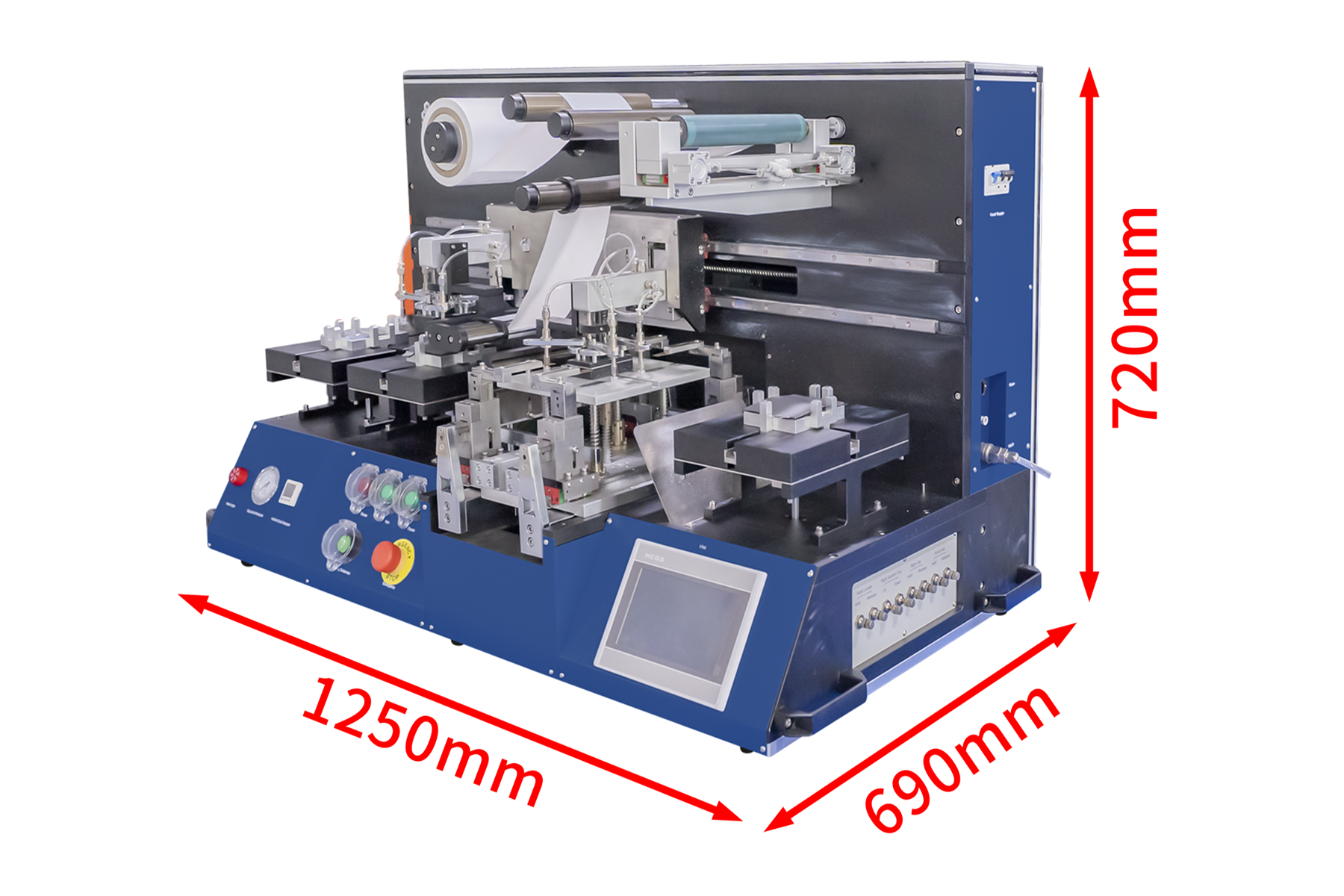

Large Automatic Pouch Cell Stacking Machine with Hybrid Stacking Modes (Max.200 mm L x 150 mm W), Glovebox Compatible - MSK-111A-PEM

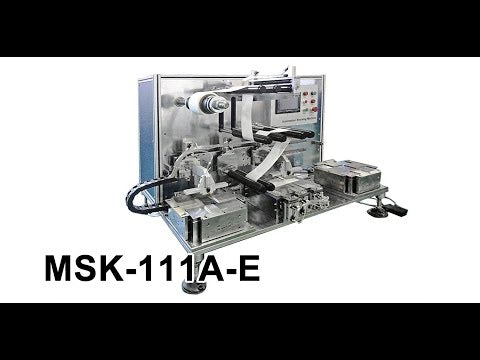

MSK-111A-E is a high-accuracy automatic stacking machine with many advanced features to ensure stable, repeatable, and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the separator film in between.
Advanced Features:

• PLC Touch Screen Control allows easy condition setting
• Continuous "Z" fashion stacking with a separator
• Auto electrode pick-up & stacking via vacuum suction manipulator
• Adjustable mechanical fixture for accurate electrode positioning
• Unreeling rotors for separator film feeding
• Auto-tension control for separator film delivery
• One set of 80x50mm stocking die fixtures is included for immediate use.

Working Voltage	AC220V 50/60Hz AC 110V version is available upon request
Power	400 W
Stackable Size of electrode	Max. stacking electrode size: 200 mm Length x 150 Width (current collector tab is not included) Please indicate the electrode size for stacking die customization
Stacking modes	Z-type stacking: polymer roll as separator for liquid-type lihitum ion battery. Step-by-Step sequence stacking: Solid-state electrolyte with plate shape as separator.
Stacking Speed	4 - 6 seconds/layer (normal electrodes); 6-8 seconds/layer (Li metal)
Max. Electrode Thickness	~ 20 mm
Current Corrector Tab Length	Max. 15 mm
Aligning Accuracy	±0.3 mm for stacked electrodes
Acceptable Separator Size	Polymer Roll:  I.D>3'' (76mm), O.D<9.8'' (250mm) Please choose the corresponding separator size according to the electrode size A roll of separator with width of 60 mm will be provided for experimental trial Solid-state electrolyte plate as separator: 203 * 153 mm
Stacking Fixture	One set of stacking die fixtures is included for immediate use (customer should tell us the dimension they want). If you need different size electrode stacking, please inform us before order. We will make it for you at extra cost. Allowable customization size: Max. 200mm x 150mm; Min. 100 mm x 50 mm; Each size cell needs one mold.
Operation in Glove Box	The Pouch Cell Stacking Machine can be operated in the glove box in either N2 and Ar gas
Vacuum Pump	An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.
Suggested Air Pressure	0.5~0.8MPa (Please note that an air compressor is a need for the operation of this machine. Air Compressor is not included. (Please click here to order) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.  Click here to learn the installation of a gas regulator.

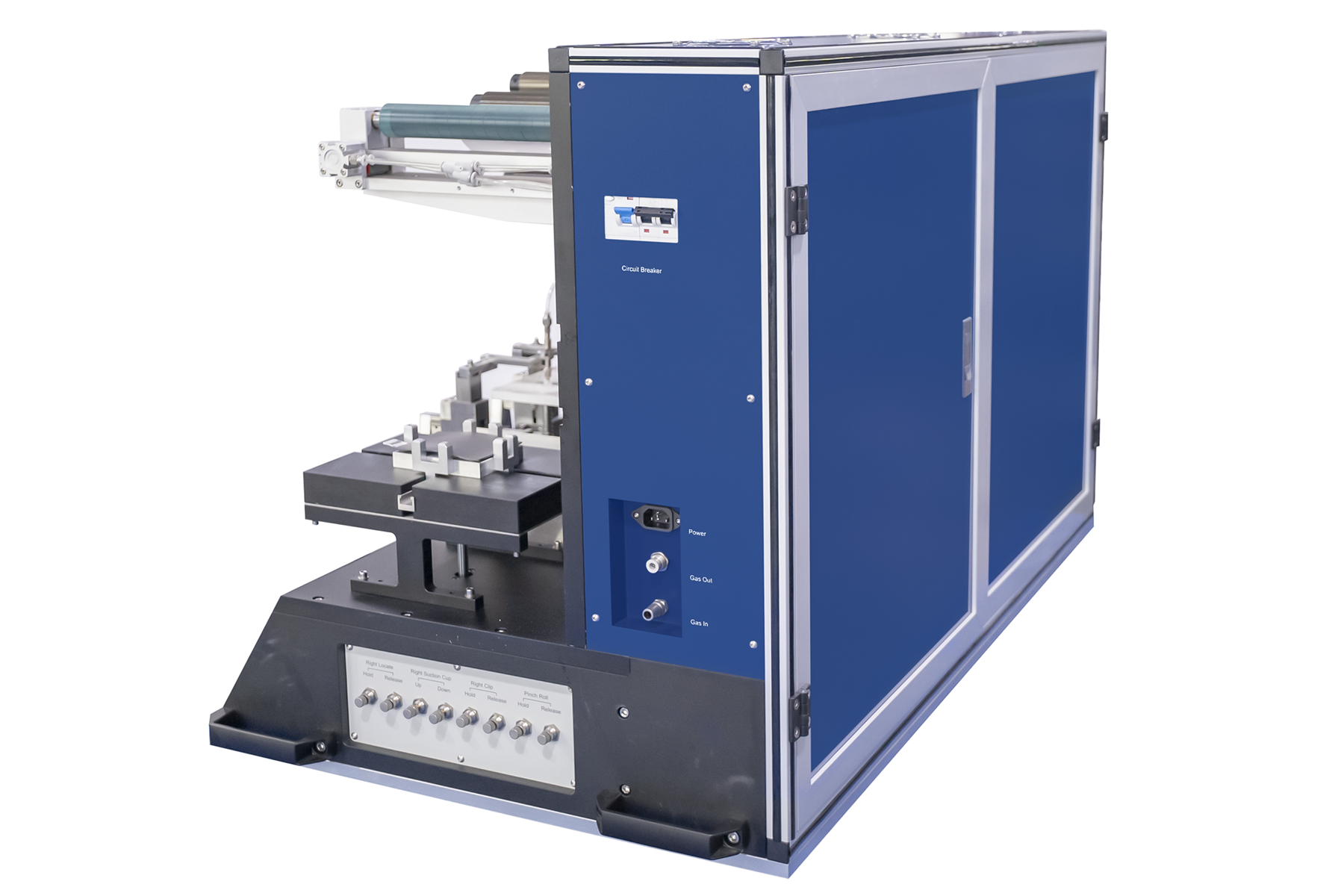

Transparent Cover	The transparent cover is optional at an extra cost for the NRTL Certificate
Compliance	CE Certified NRTL certificate is available upon request at extra cost
Application Notes	This machine can be put in a glovebox and operated in Ar gas. For the Lithium-sulfur research, please send the request for the special technique to do the pure lithium foil stacking. MTI Supplies ready-to-use Cathode & Anode Electrodes and Laminated Aluminum Pouch for your research MTI Supplies Nylon-made Splittable Pouch Cell Casing for Battery R&D
