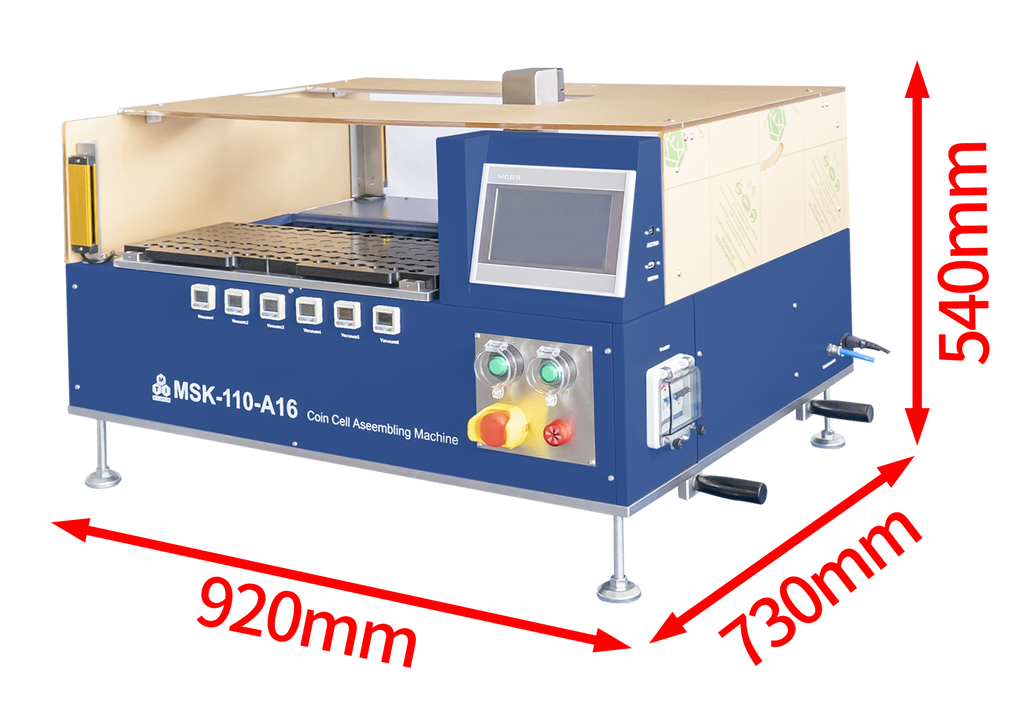

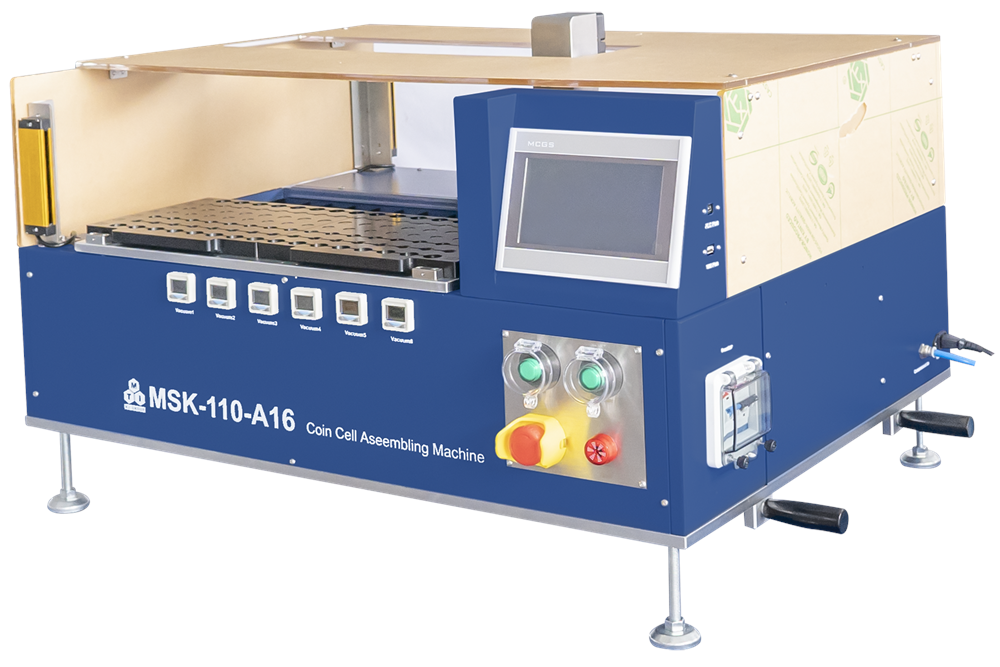

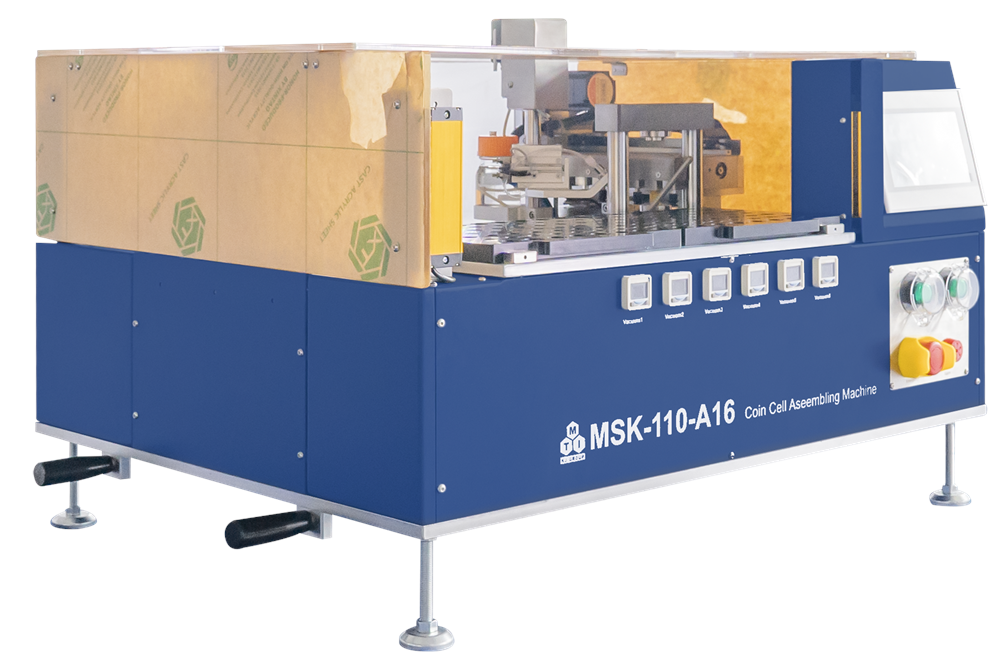

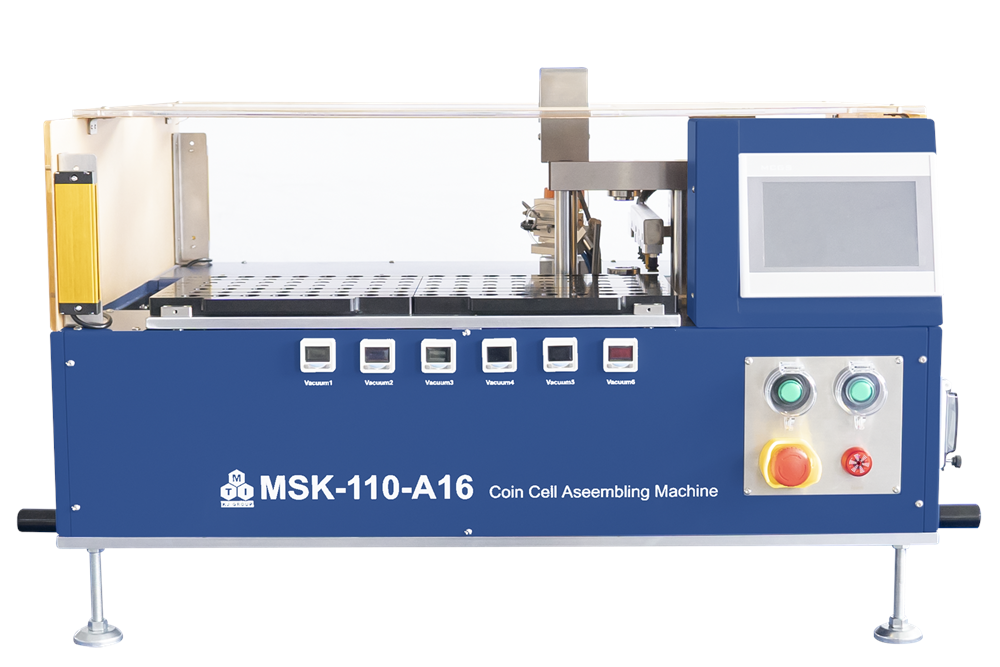

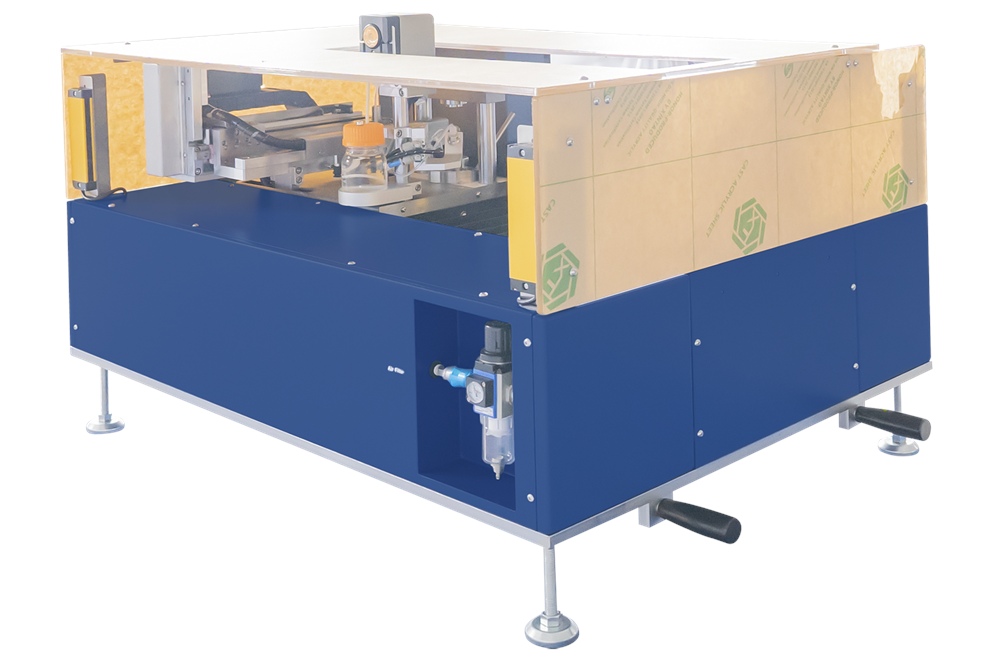

16 Channels Automatic Assembling Machine for All Types of Coin Cells - MSK-110-A16

Features

• Easy touchscreen control
• Automatic assembly: assemble in sequence, injection of electrolyte, and sealing of cells
• Suitable for use in glove boxes and dry rooms ( Double-sided glove box is recommended)
• The amount of electrolytes and the number of injections are settable
• Equipped with a built-in vacuum pump
• 16 coin cells are assembled in a sequence with high throughput

• Single Phase AC110V, or 220+10%V AC, 50/60 Hz, 200 W

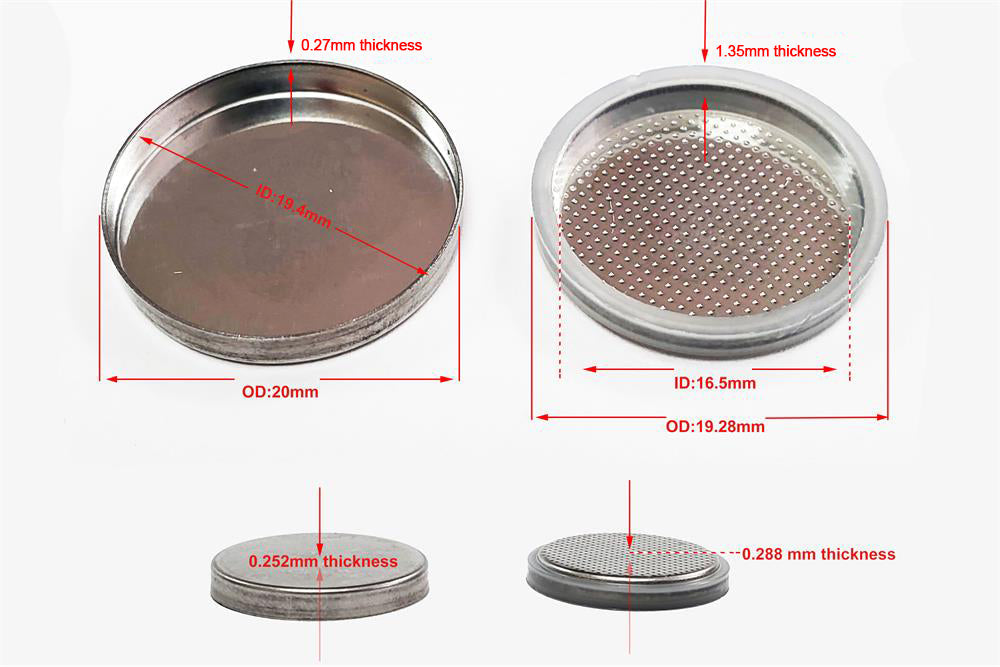

• For CR2032 coin cells, there are two assembling sequences are available (the positive assembling sequence is regarded as the default mode since Jan 2025):

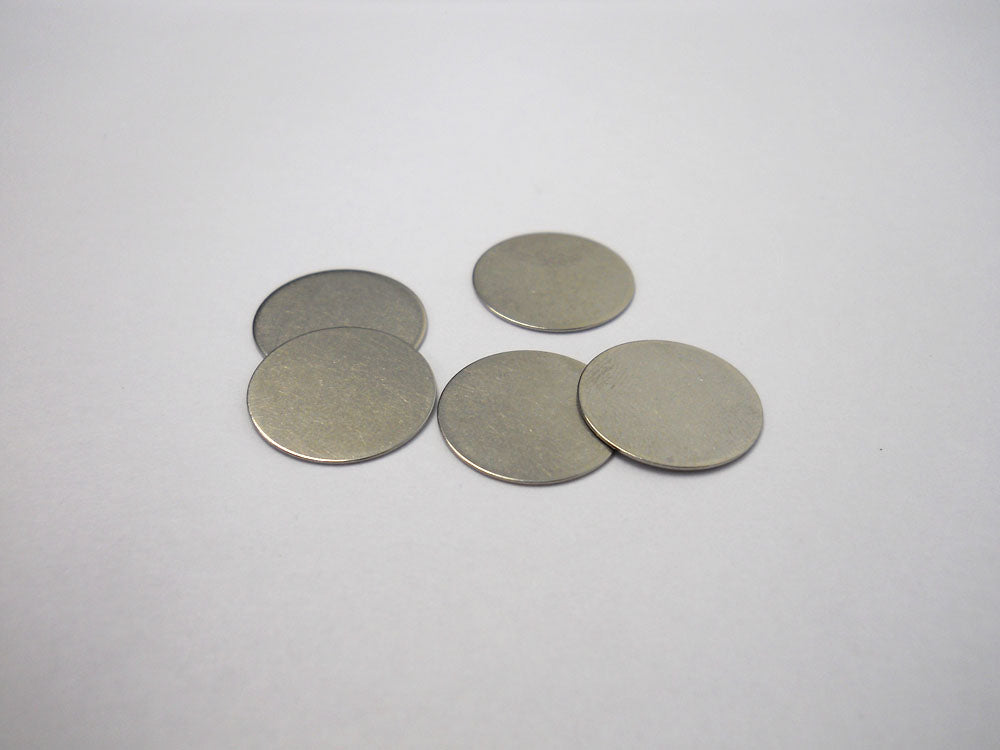

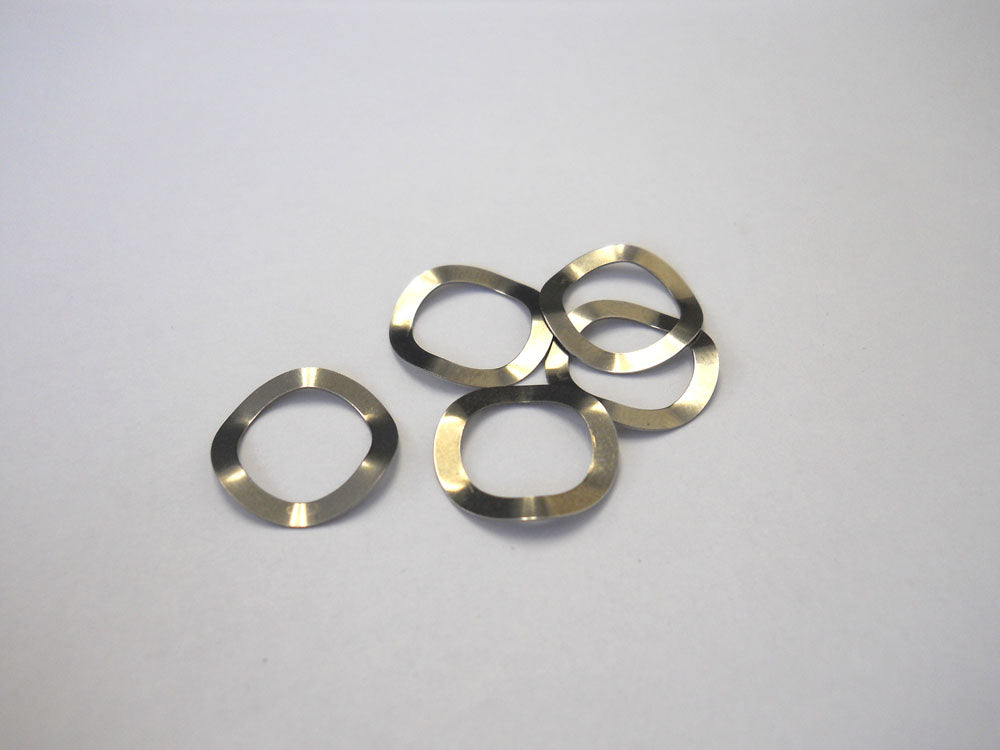

  • Positive Assembling Sequence: "cathode case, cathode disc, separator, anode disc, spacer, spring, and anode case".

• • Negative Assembling Sequence: "anode case, anode disc, separator, cathode disc, spacer, spring, and cathode case".

• • Other series of coin cells are available upon request, please contact MTI for more information.
  • Different assembling sequences can be customized upon request.

• Approximately 90 seconds per cell
• It can make 16 cells within 24 minutes

• Pre-load material manually, then assemble coin cell automatically

• +0.1mm accuracy

• Better than ±0.5mm

• Sealing pressure adjustable
• For the CR20 series coin cell, 500-700KG sealing pressure is recommended

• Equipped with a peristaltic pump with adjustable Injection volume



• One glass-made electrolyte jar is included
• Capacity: 100ml Max.

• CR2032 sealing die is included in the standard package, other sealing dies are available upon request
• 5000 sealing times Max.

• Electrolytes are highly corrosive materials; therefore, the die set must be cleaned with ethanol after each experiment to avoid any corrosion damage.
• Please be aware that MTI is not liable for any losses/damages resulting from improper use, care and maintenance, or abuse of the product.

• After coin cell assembly, the formation process is critical to forming the SEI layer and obtaining a stable OCV.
• Normally at least 3-5 cycles are required.
• A flat rubber spring (CR20SPR-Rub) is beneficial to pressure distribution. Please read more details in "Bridging the Gap Between Pouch and Coin Cell Electrochemical Performance in Lithium Metal Batteries, DOI: 10.1149/1945-7111/ad2731"
