Metal clamp / Aluminum strip for mounting Silicon Carbide (SiC) Heating Rods - EQ-HE-CLP
  • Metal clamp / Aluminum strip for mounting Silicon Carbide (SiC) Heating Rods - EQ-HE-CLP
Metal clamp / Aluminum strip for mounting Silicon Carbide (SiC) Heating Rods - EQ-HE-CLP

Metal clamp / Aluminum strip for mounting Silicon Carbide (SiC) Heating Rods - EQ-HE-CLP

SKU: metal-clamp-aluminum-strip-for-mounting-silicon-carbide-sic-heating-rods-eq-he-clp

Price: RFQ

Description

 Metal clamp & Aluminum strip for mounting the heating elements of  Tube Furnace Replacement items are non-returnable and non-exchangeable.

Notice:
  • These two are customized products, please email us your MTI furnace model name before you place the order.
  • This product is sold in each.

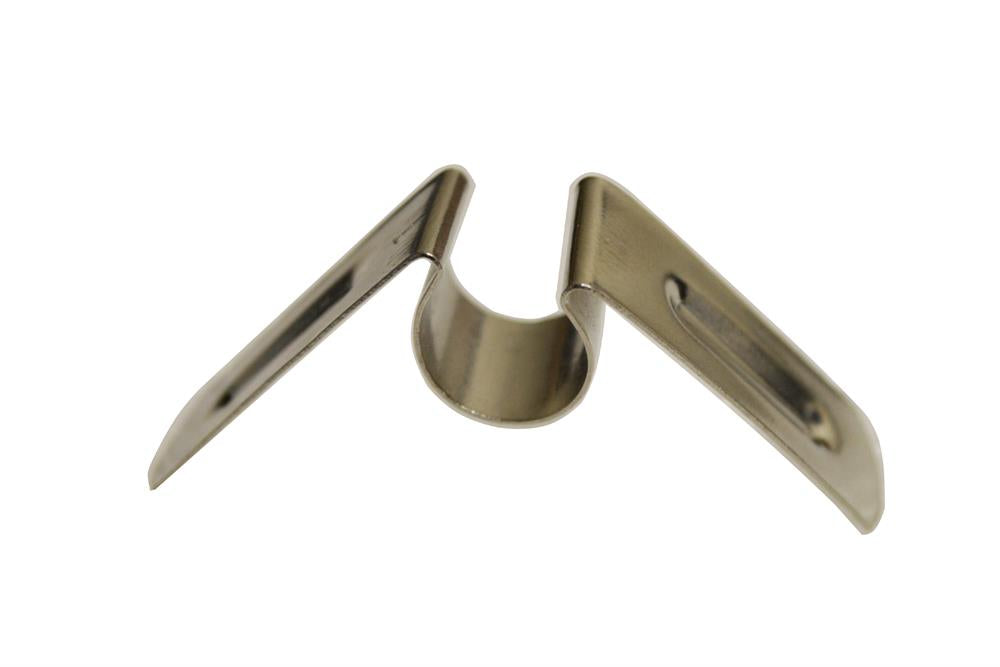

Metal clamp
EQ-HE-CLP



Aluminum  strip
EQ-HE-ALS
  • Five pcs in total

Operations Manual
Application Notes
  • SiC heating elements are extremely brittle and need to be handled with care at all times.
  • To avoid breaking, do NOT over-tighten the aluminum connecting plates between the rods of heating elements. However, a loose connection could cause a higher contact resistivity and increase the temperature on the top of furnace dramatically.
  • If the temperature on top of furnace is too high during heating, please shut down the power and remove the cover to further tighten the screws between heating element rods and aluminum plates
Option Tool
Internal Straight Precision Retaining Snap Ring Circlip Pliers for installing 1500C grade SIC heating element, MTI-Pilers-SIC
