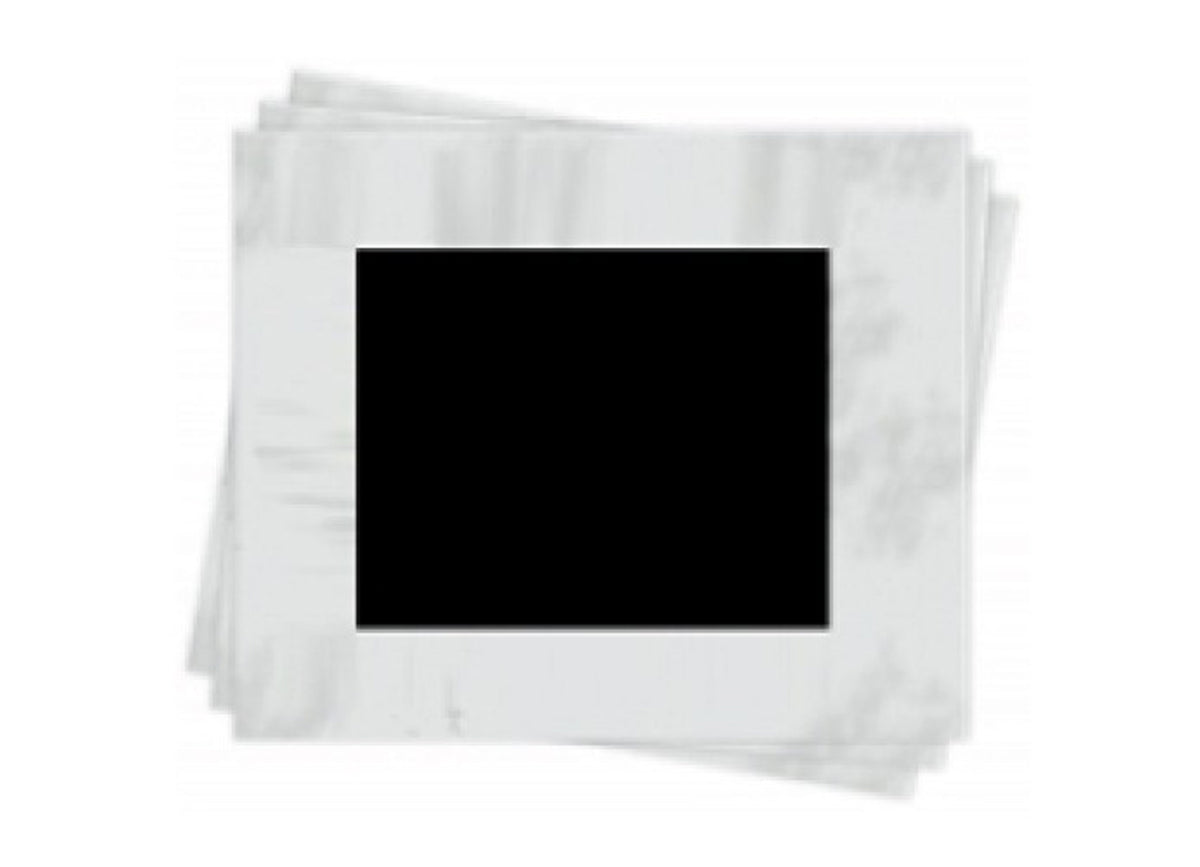

Membrane Electrode Assembly (MEA) without Gas-Diffusion Layer (5cm2 or 25cm2, 3 layers) for PEM Electrolyzers, PEME-MEA3L
  • Membrane Electrode Assembly (MEA) without Gas-Diffusion Layer (5cm2 or 25cm2, 3 layers) for PEM Electrolyzers, PEME-MEA3L
Membrane Electrode Assembly (MEA) without Gas-Diffusion Layer (5cm2 or 25cm2, 3 layers) for PEM Electrolyzers, PEME-MEA3L

Membrane Electrode Assembly (MEA) without Gas-Diffusion Layer (5cm2 or 25cm2, 3 layers) for PEM Electrolyzers, PEME-MEA3L

SKU: membrane-electrode-assembly-mea-without-gas-diffusion-layer-5cm2-or-25cm2-3-layers-for-pem-electrolyzers-peme-mea3l

Price: RFQ

Description

 Membrane Electrode Assemblies (MEA) with three layers of Pt Cathode, IrRuO2 Anode, and PFSA Membrane is used for PEM electrolyzers.

Part Number PEME-MEA3L-5 or PEME-MEA3L-25
Sheet Size

2.2 cm×2.2 cm (Active Area), the membrane size is 10 cm×10 cm

or 5cm × 5cm (Active Area), the membrane size is 10cm×10 cm
Membrane Features

PFSA, 127 um thickness
Anode Iridium Ruthenium Oxide, 3.0 mg/cm²
Cathode Platinum Black, 3.0 mg/cm²
Gas Diffusion Layer  No
