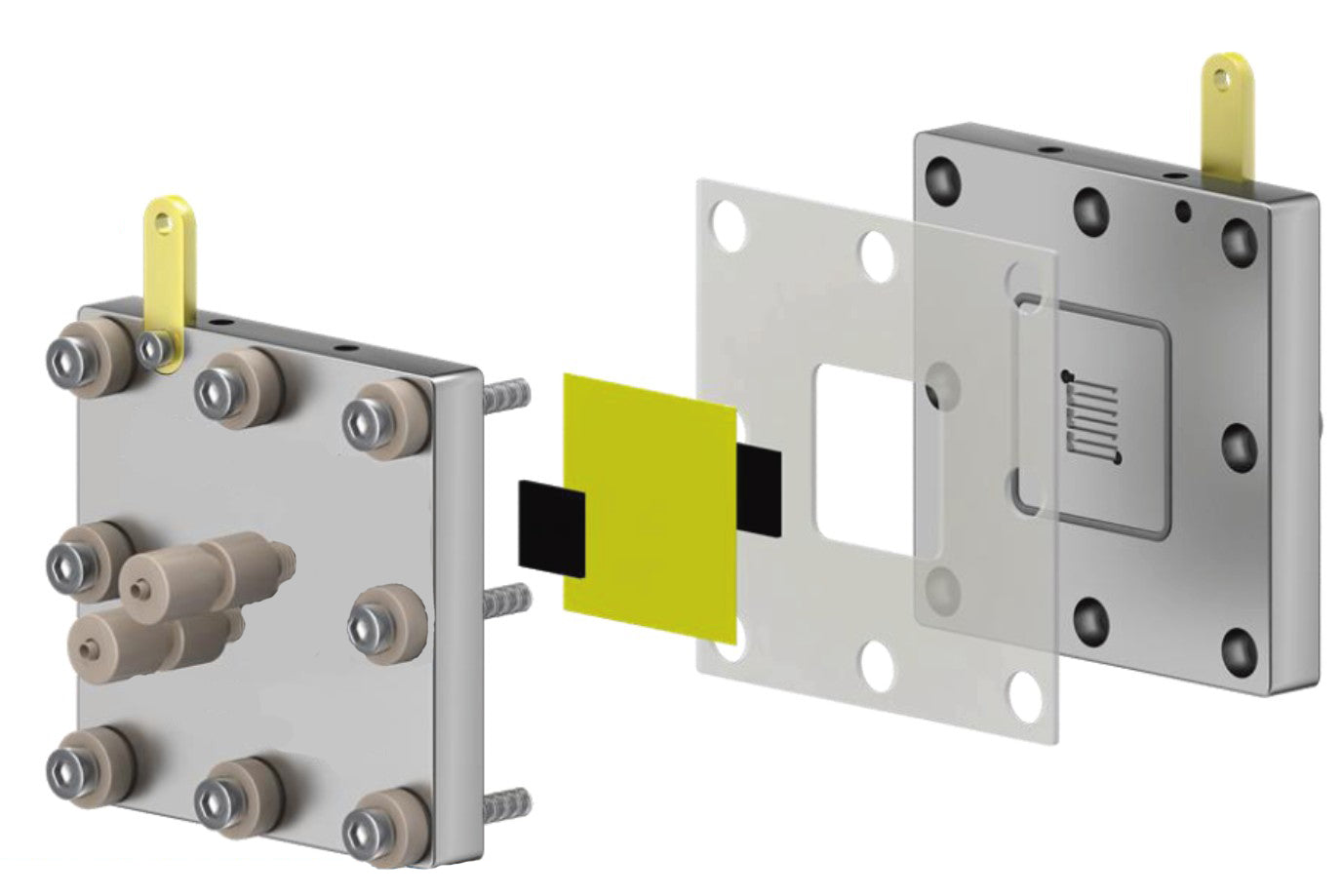

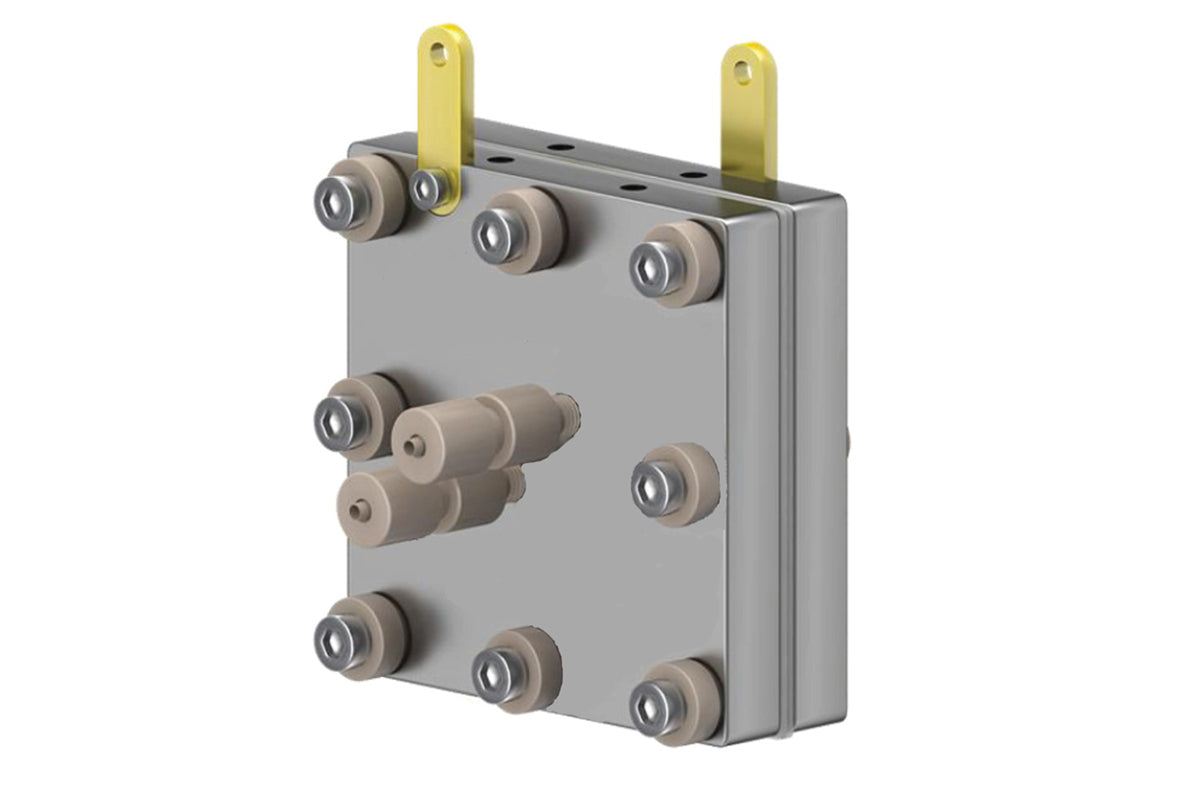

Membrane Electrode Assembly (MEA) Electrolyzer with Ti Bipolar Plates for Water Splitting and CO2 Reduction - MEA-E-TiBP

• The whole electrochemical cell was made by high purity titanium (Ti) metal. High purity nickel (Ni) is also available upon request for electrochemical testing under extreme conditions.
• Double O-rings were presented to provide high sealing quality.
• PTFE gaskets with high electrochemical corrosion property
• Flow Channels with serpentine shape for increasing reaction retention time. Flow channels with other shapes are also available upon request, such as parallel, vein type.
• The bipolar plates were equipped with heating and temperature measuring holes, which is designed for electrochemical testing under various temperatures.

(1) The MEA electrolyzer with changeable channel and PTFE fold is available upon request:

(2) The MEA electrolyzer with visual window for in-situ characterization is also available upon request:

(3) For large voltage & current condition (Max. 20V, 20A ), the following eletrolyzer with heating and cooling functions can be considered. The maximum temperature is 100 degrees.
