LSGM Single Crystal Substrate, 10x10x0.5 mm,< 001> ori. 2SP,

LSGM Single Crystal Substrate, 10x10x0.5 mm,< 001> ori. 2SP,

SKU: lsgm-single-crystal-substrate-10x10x0-5-mm-001-ori-2sp

Price: RFQ

Description

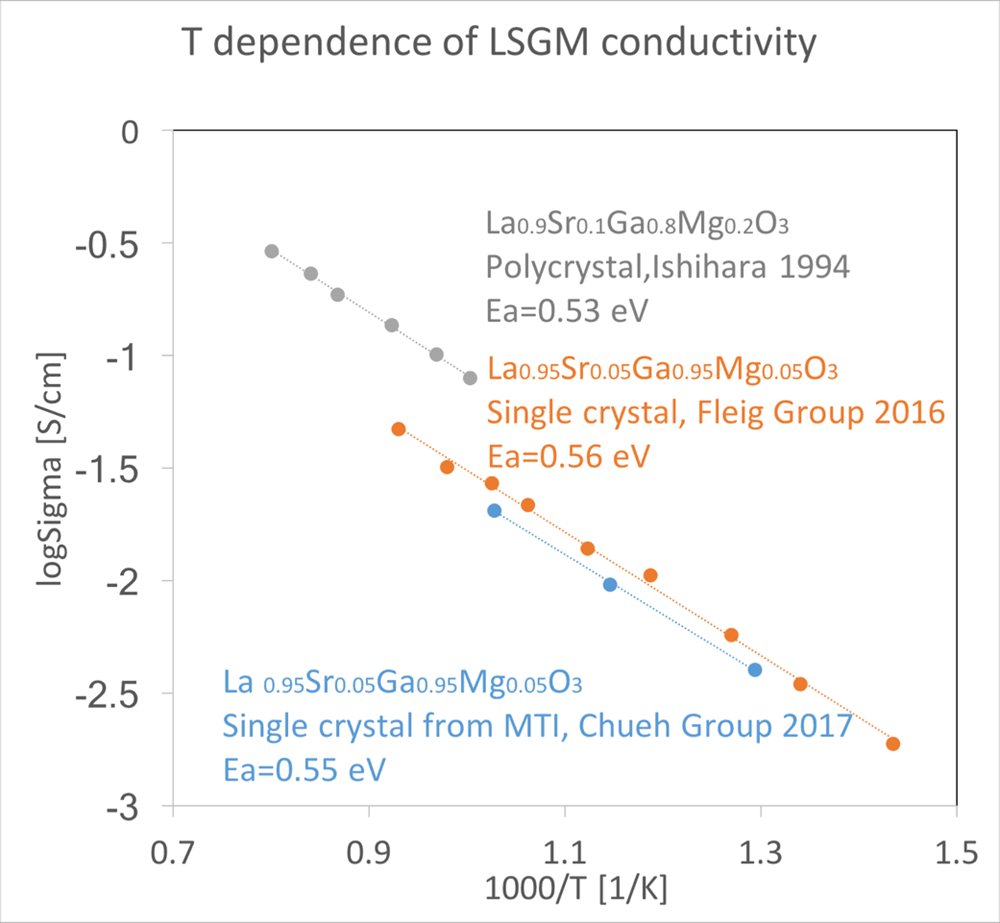

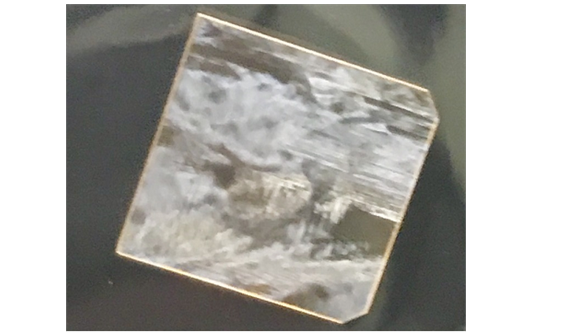

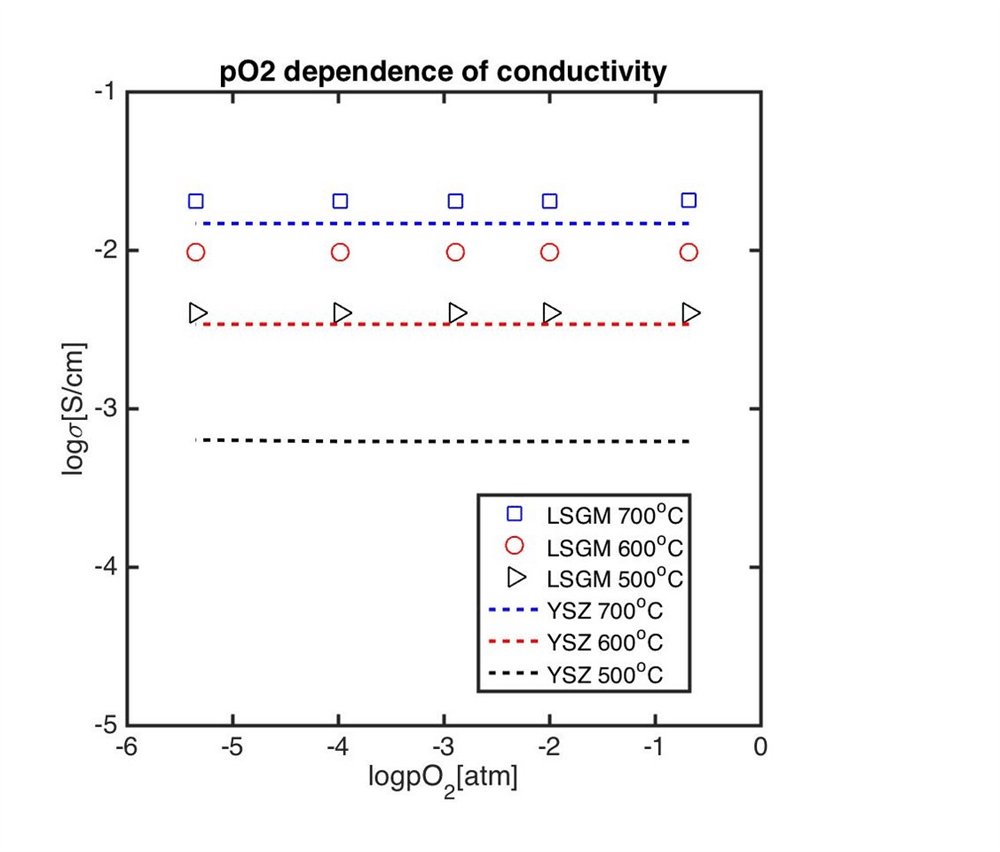

 Orientation: (001) +/-2 o Size: 10x10 mm x 0.5 mm Polish: two sides optical grade polished Surface finish (RMS or Ra) :  < 10A Packed:  each in membrane box Note: there is a twin structure Visibale on polished surface Chemistry La 0.95 Sr 0.05 Ga 0.95 Mg 0.05 O 3-δ (LSGM) Crystal growth method CZ Crystal Structure a = 5.493 Å, b = 5.533 Å  c=7.782 Å Melting point ~ 1500oC Note LSGM is new crystal for MTI.  We still is in R&D to improve the quality We found many domain or tiwn defect in side single crystal similat ot LaAlO3 which results in crystal rocking curve splited as below. Usually the defect dose not effect film growth.  The buffer layer may be needed to ge better epi film We don;t accept the return because the defect Thank you for help us to R&D new single crystal References LSGM Single Crystals: Crystal Structure, Thermal Expansion, Phase Transitions and Conductivity Note Powder XRD                                    Resistivity vs  Temp                 Resistivity vs p O2 Related Product Other Crystal wafer A-Z Plasma Cleaner Wafer Containers Dicing saw Film Coater

 Chemistry       La0.95Sr0.05Ga0.95Mg0.05O3-δ (LSGM)

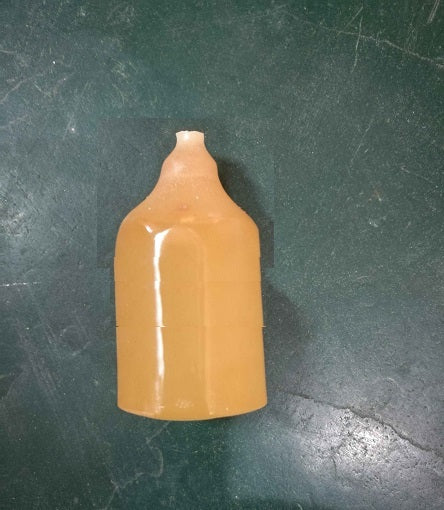

 Crystal growth method    CZ
 Crystal Structure    a = 5.493 Å, b = 5.533 Å  c=7.782 Å
 Melting point   ~ 1500oC
 Note   LSGM is new crystal for MTI.  We still is in R&D to improve the quality

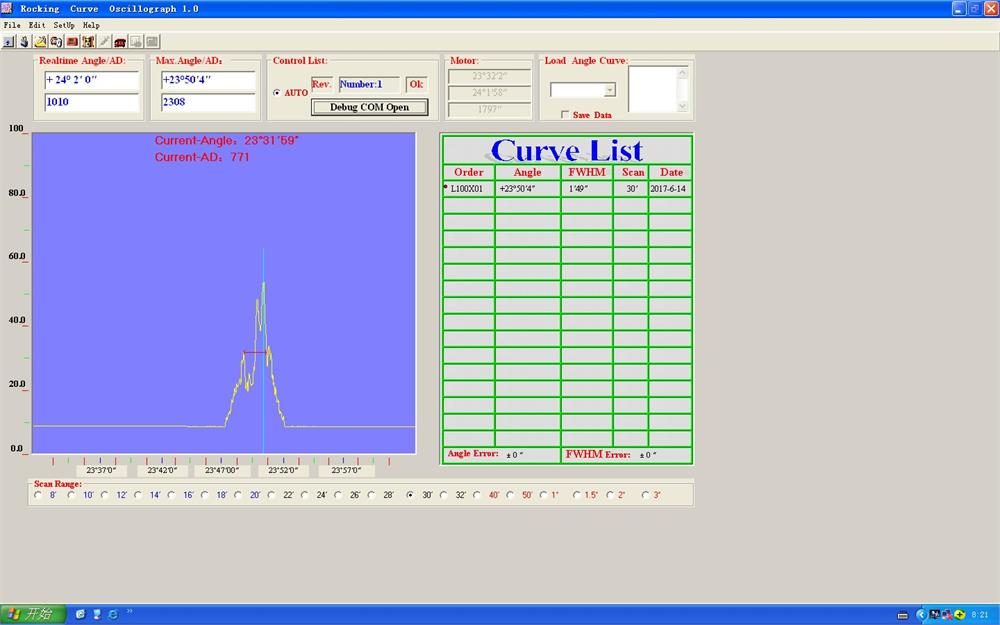

We found many domain or tiwn defect in side single crystal similat ot LaAlO3 which results in crystal rocking curve splited as below.
Usually the defect dose not effect film growth.  The buffer layer may be needed to ge better epi film

We don;t accept the return because the defect
Thank you for help us to R&D new single crystal
 References
 Note
,
