Lab-Scale Automatic Single-Layer Pouch Cell Assemble Line for Battery R&D - MSK-BPE-SS-D

SKU: lab-scale-automatic-single-layer-pouch-cell-assemble-line-for-battery-r-d-msk-bpe-ss-d

Price: RFQ

Description

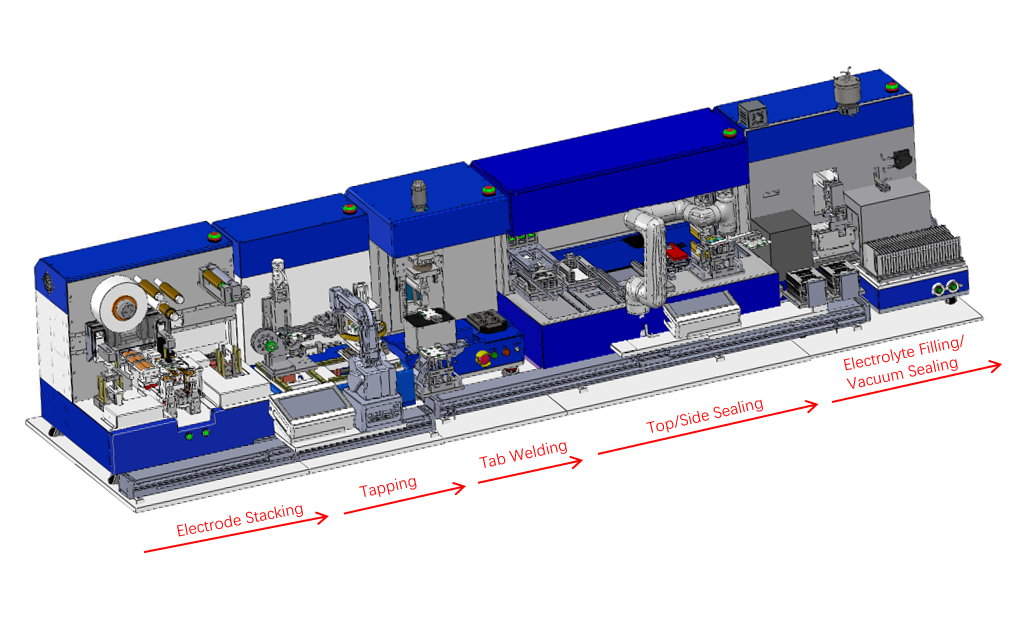

MSK-BPE-SS-D is a lab-scale automatic assemble line for single-layer pouch cell fabrication, which can realize the whole automatic process of electrode stacking to electrolyte injection and cell sealing. This unit can be used to quicky evaluate the active materials and potential electrolytes. The frame cover connected with a dehumidifier is able to provide a low dew point of -50 ℃ for humidity-sensitive electrode or electrolyte development. Overview for Technical Processes Critical Parameters and

Power	AC220V±10%, 50/60Hz, single phase, Total: 13.4 kW (whole line: 6.6 kW, dehumidifier: 4 kW, water chiller: 2.8 kW)
Cell Dimension	L: 40-80 mm, W: 40-60 mm (tab direction), Max thickness: 6 mm (Top side with tab is using soft-sealing mode)
Standard Pouch Cell Size	4662 pouch cell (cathode: L56xW43mm; anode: L58xW45mm) Separator width: 60 mm. Other sizes are available upon request.
Production Efficiency	Each cell will take around 3 min, so 120 cells/day.
Loading Mode	Separator, Strapping Tape, Electrodes, Tabs, and Pouch Cell Case
Unloading Mode	Cell Collection Tray
Temperature/Humidity	All sealing design, humidifier for achieving 20-25 ℃ and dew point of -50℃
Equipment Dimension	Total Size：L3900mm×W1000mm×H740mm Dehumidifier: L1400mm×W900mm×H580mm Water Chiller：L950mm×W500mm×H900mm
Total Weight	~1000 kg
