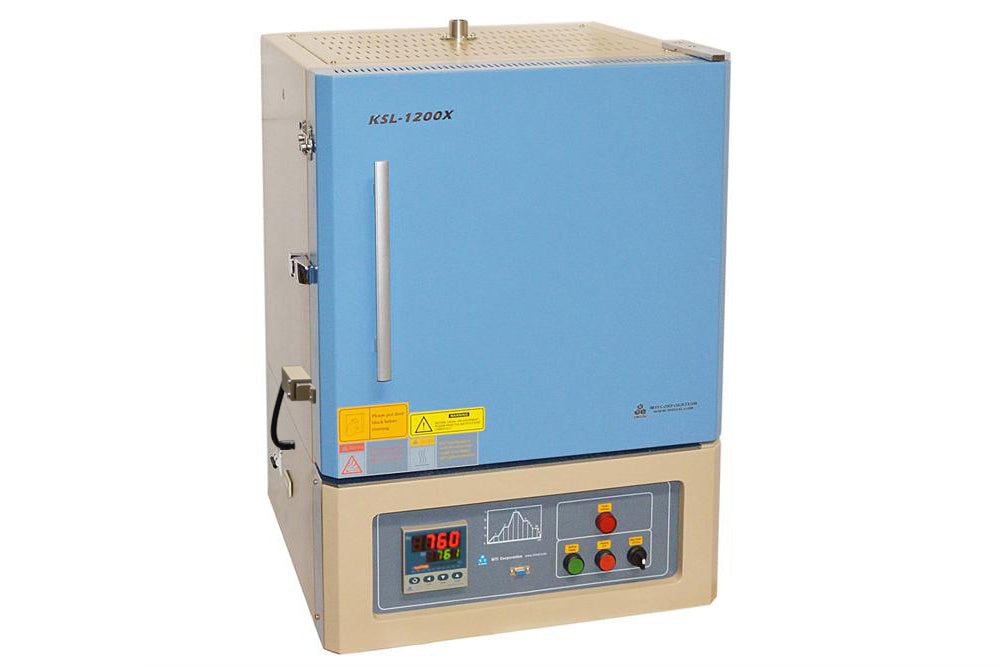

1200C Muffle Furnace (12x12x12", 27 L) w/ Programmable Controller- KSL1200XM
  • 1200C Muffle Furnace (12x12x12", 27 L) w/ Programmable Controller- KSL1200XM
  • 1200C Muffle Furnace (12x12x12", 27 L) w/ Programmable Controller- KSL1200XM
  • 1200C Muffle Furnace (12x12x12", 27 L) w/ Programmable Controller- KSL1200XM
  • 1200C Muffle Furnace (12x12x12", 27 L) w/ Programmable Controller- KSL1200XM
1200C Muffle Furnace (12x12x12", 27 L) w/ Programmable Controller- KSL1200XM

1200C Muffle Furnace (12x12x12", 27 L) w/ Programmable Controller- KSL1200XM

SKU: ksl1200xm

Price: RFQ

Specifications

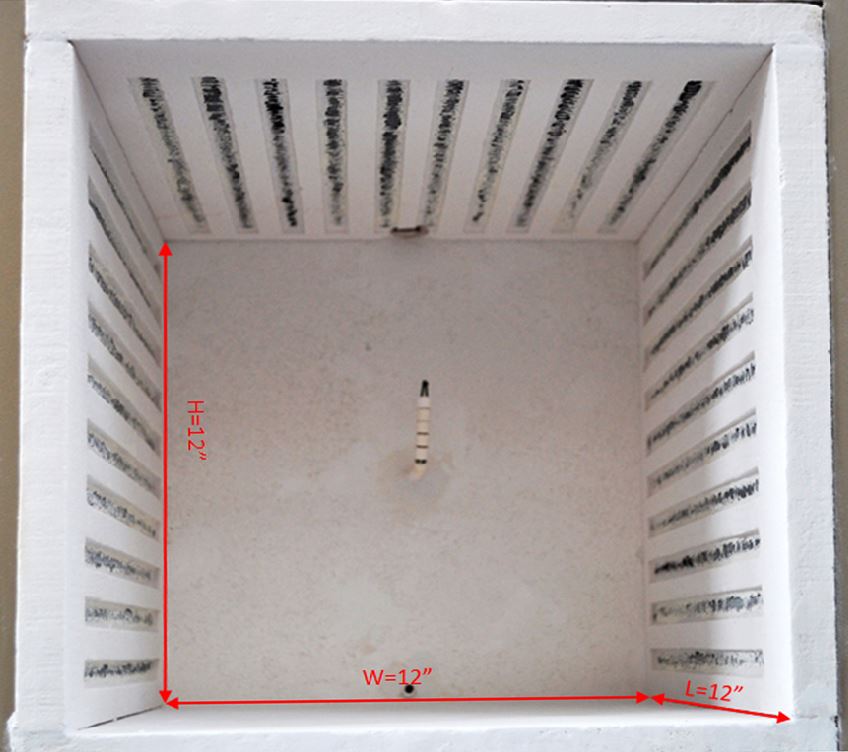

 KSL-1200X-M-UL is a muffle furnace that offers a 12" x 12" x 12" high purity fibrous alumina chamber, gas inlet and outlet ports, and a 30 programmable segments temperature controller and UL / MET / CSA Certified electric components. It is the ideal muffle furnace for preparing samples with temperatures up to 1100 ° C in research and dental labs with maximum energy saving. SPECIFICATIONS Structure High-purity fibrous alumina insulation for maximum energy saving. Heating elements on all three sides of the interior chamber for fast heating and enhanced temperature uniformity. Double-layer steel structure with air cooling fan to keep furnace's exteriors safe to touch. The safety interlock will automatically power off the furnace when the door is opened. Built-in vent port (top) to remove undesirable contaminants and moisture and extend the lifespan of the heating elements and furnace. Power 208~240V AC, Single phase, 50/60 Hz 7.5 kW, 40 A. Note: A power cord is included without a power plug. A proper power plug is available via the figure on the left. Max Operating Temperature 1200 ° C continuously Temperature Stability ±1 °C Temperature Uniformity +/- 8 °C @ 1000°C in the center 260 x 260 x 260 mm area Max. Heating Rate <20 ° C/min Temperature Controller FA-YD518P-AG temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port Temperature controller (optional) Upgrade an Eurotherm Temperature Controller for better temperature PID control Laptop, software & WiFi Control (Optional) Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use. LabVIEW Based Temperature Control System ( MTS01 ) enables the user to edit temperature profile, manage heat-treatment recipes, and record and plot data for MTI furnaces. The above features are available upon request at an extra cost. Please contact us for more information. Gas Fitting & Exhaust One 1/4" barbed Gas Inlet was installed on the back panel of the furnace. One gas exhaust port is built on the top of the furnace casing. Compliance CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost. Application Notes For longer furnace service life, we recommend the heating rate not to exceed 10 °C /min. The cooling rate shall also not exceed 10 °C /min. This furnace lacks vacuum sealing , and it is not recommended to use toxic or explosive gasses in this furnace without necessary safety controls and supervision. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. You may order an alumina crucible by click the picture below. click here to choose a crucible


Structure
  • High-purity fibrous alumina insulation for maximum energy saving.
  • Heating elements on all three sides of the interior chamber for fast heating and enhanced temperature uniformity.
  • Double-layer steel structure with air cooling fan to keep furnace's exteriors safe to touch.
  • The safety interlock will automatically power off the furnace when the door is opened.
  • Built-in vent port (top) to remove undesirable contaminants and moisture and extend the lifespan of the heating elements and furnace.

Power
  • 208~240V AC, Single phase, 50/60 Hz
  • 7.5 kW, 40 A.
  • Note: A power cord is included without a power plug.
    A proper power plug is available via the figure on the left.
Max Operating Temperature
  • 1200 °C continuously
Temperature Stability
  • ±1 °C
Temperature Uniformity
  • +/- 8 °C @ 1000°C in the center 260 x 260 x 260 mm area
Max. Heating Rate
  • <20 °C/min
Temperature Controller
  • FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
Temperature controller (optional)
Laptop, software & WiFi Control (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • LabVIEW Based Temperature Control System (MTS01)enables the user to edit temperature profile, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • The above features are available upon request at an extra cost. Please contact us for more information.
Gas Fitting & Exhaust
  • One 1/4" barbed Gas Inlet was installed on the back panel of the furnace.
  • One gas exhaust port is built on the top of the furnace casing.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.




Application Notes
  • For longer furnace service life, we recommend the heating rate not to exceed 10 °C /min.
  • The cooling rate shall also not exceed 10 °C /min.
  • This furnace lacks vacuum sealing, and it is not recommended to use toxic or explosive gasses in this furnace without necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.

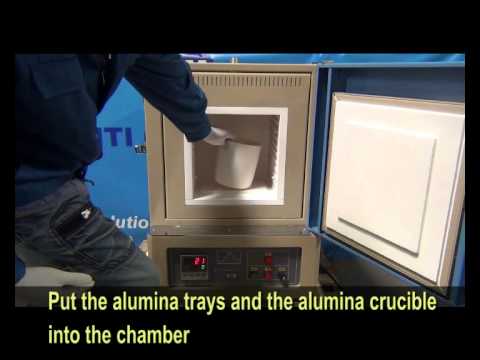

  • You may order an alumina crucible by click the picture below.
